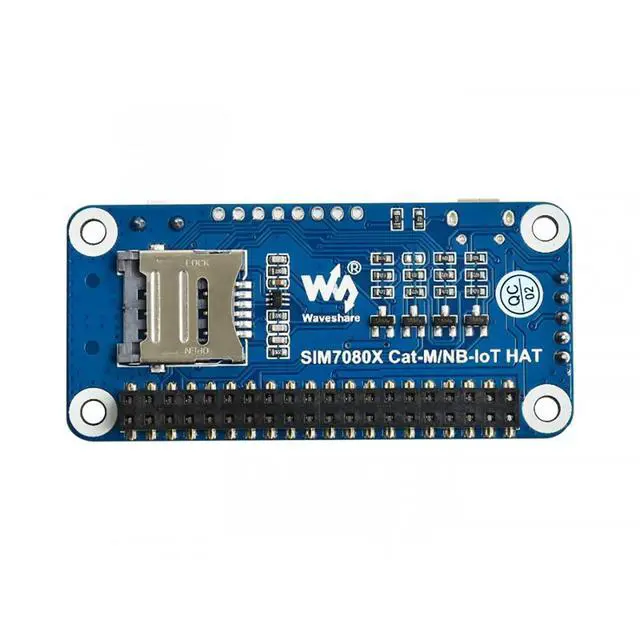

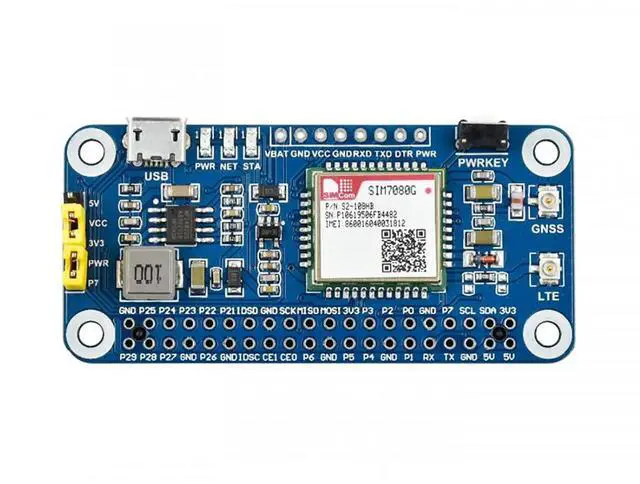

NB-IoT/Cat-M(eMTC)/GNSS HAT for Raspberry Pi Based on SIM7080G Supports Protocols as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT Globally Applicable
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
- Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper
- Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
- 3x LED indicators, easy to monitor the working status
- Baudrate: 300~3686400 bps
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper
Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
Breakout UART control pins, to connect with host boards like Arduino/STM32
SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
3x LED indicators, easy to monitor the working status
Baudrate: 300~3686400 bps
Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper
Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
Breakout UART control pins, to connect with host boards like Arduino/STM32
SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
3x LED indicators, easy to monitor the working status
Baudrate: 300~3686400 bps
