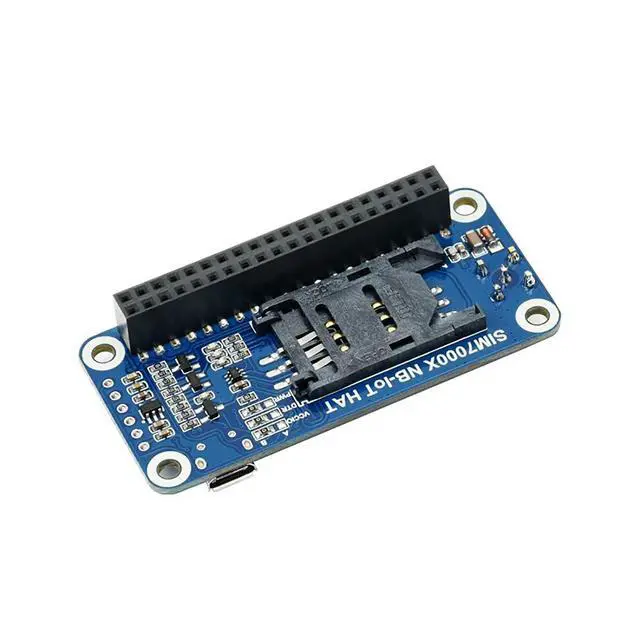

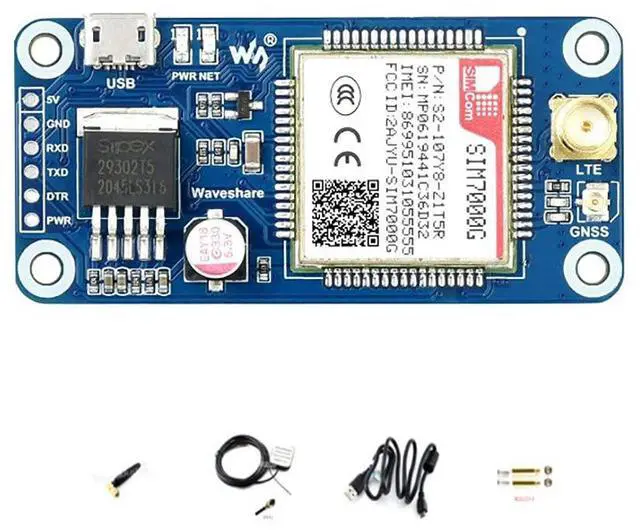

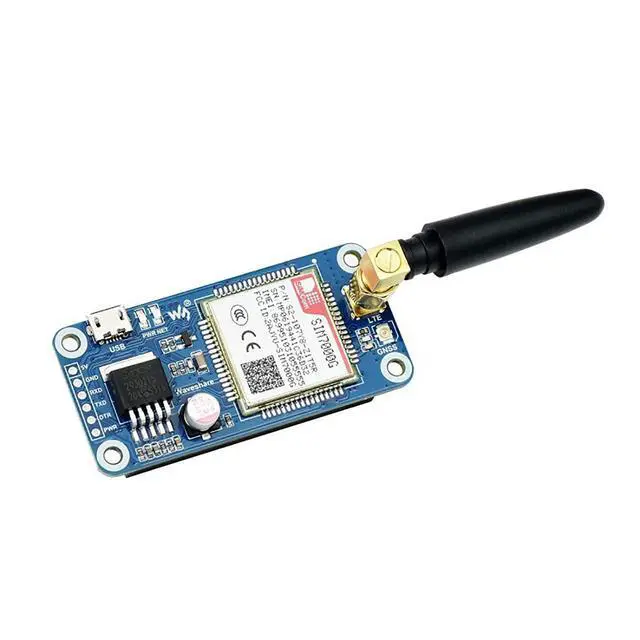

SIM7000G NB-IoT/Cat-M/Edge/GPRS HAT for Raspberry Pi Series, Low Power Narrow Band Cellular IoT Communication Module,GNSS Positioning, Support Global Band

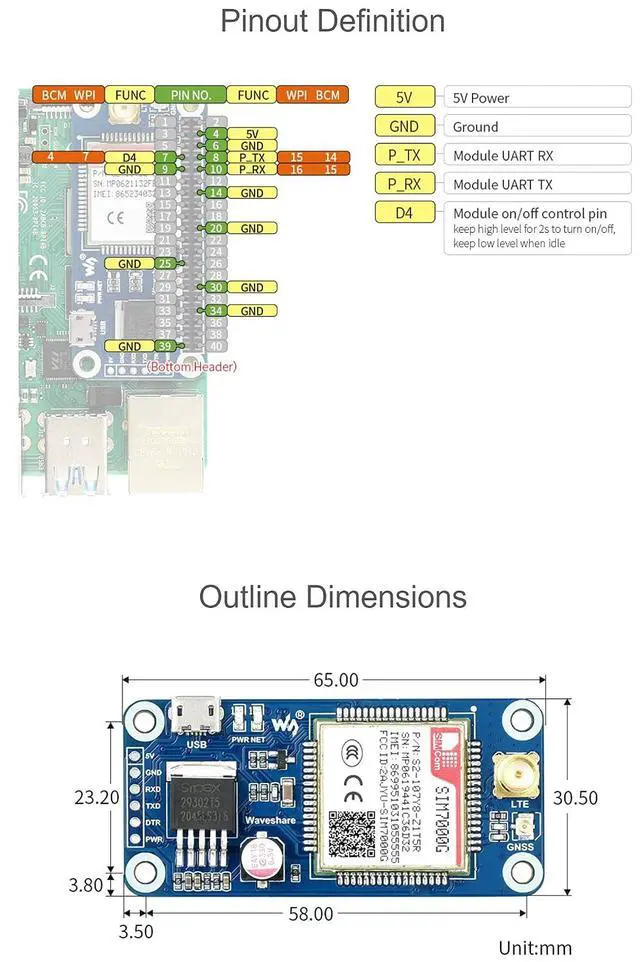

- Standard Pi 40PIN GPIO extension header, fits Raspberry Pi series boards
- Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
- Supports GNSS positioning (GPS, BeiDou, GLONASS)
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Breakout UART control pins, to connect with host boards like Ardui/STM32
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
- Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0 resistor
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Standard Pi 40PIN GPIO extension header, fits Raspberry Pi series boards
Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
Supports GNSS positioning (GPS, BeiDou, GLONASS)
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Breakout UART control pins, to connect with host boards like Ardui/STM32
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0 resistor
Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
Supports GNSS positioning (GPS, BeiDou, GLONASS)
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Breakout UART control pins, to connect with host boards like Ardui/STM32
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0 resistor
