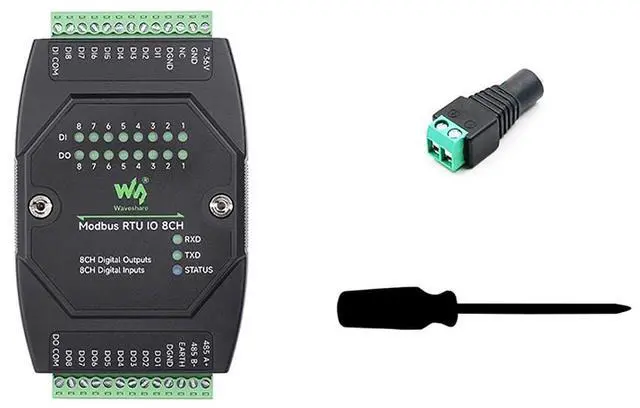

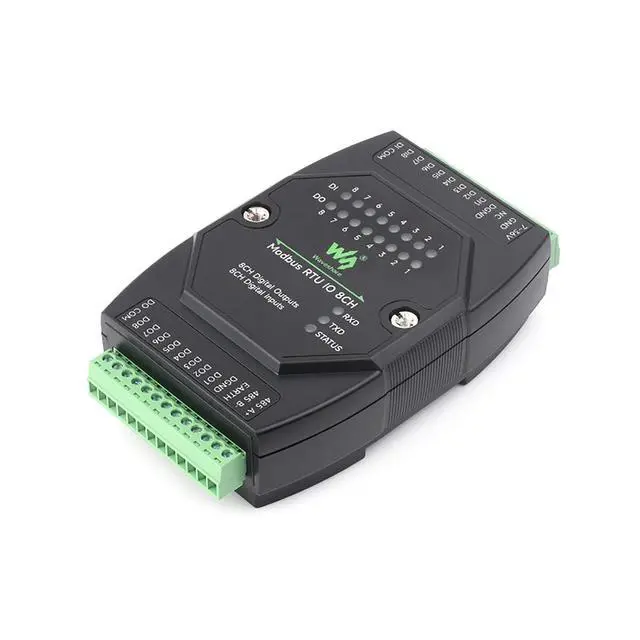

Modbus RTU IO Module 8DI 8DO, Industrial RS485 Digital Input Output Controller, DC 7-36V Supply, Optocoupler Isolation, 500mA Sinking Open-Drain Outputs, DIN Rail Mount, TVS/Fuse Protection
Limited time offer, ends 10/07 By TechDen
- 8DI/8DO RS485 Modbus RTU IO Module: Industrial Modbus RTU IO 8CH provides 8 digital inputs + 8 digital outputs controlled via wired RS485 Modbus RTU, ideal for PLC/automation cabinets.

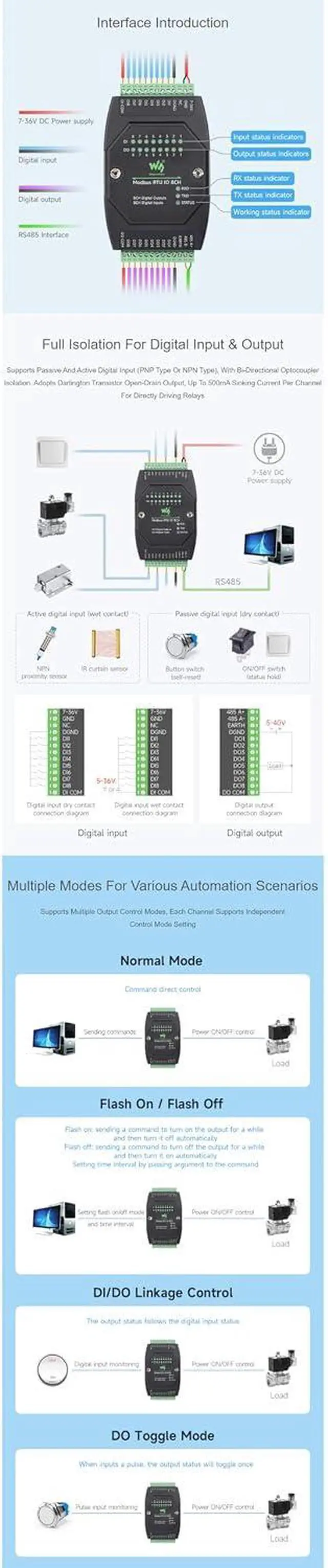

- Passive/Active DI (NPN/PNP) + Debounce: Supports passive and active digital input (NPN/PNP) with bi-directional optocoupler isolation and built-in debouncing, improving reliability for digital input module applications.
- 8DO Open-Drain 500mA Sink + Flyback Protection: Darlington open-drain outputs with optocoupler isolation provide up to 500mA sinking current per channel, with built-in flyback diode protection for driving relays and loads.
- DC 736V Wide Supply + Address 1255: Onboard regulator supports DC 736V power
- Modbus address 1255 enables multiple RS485 IO modules cascaded on the same bus.

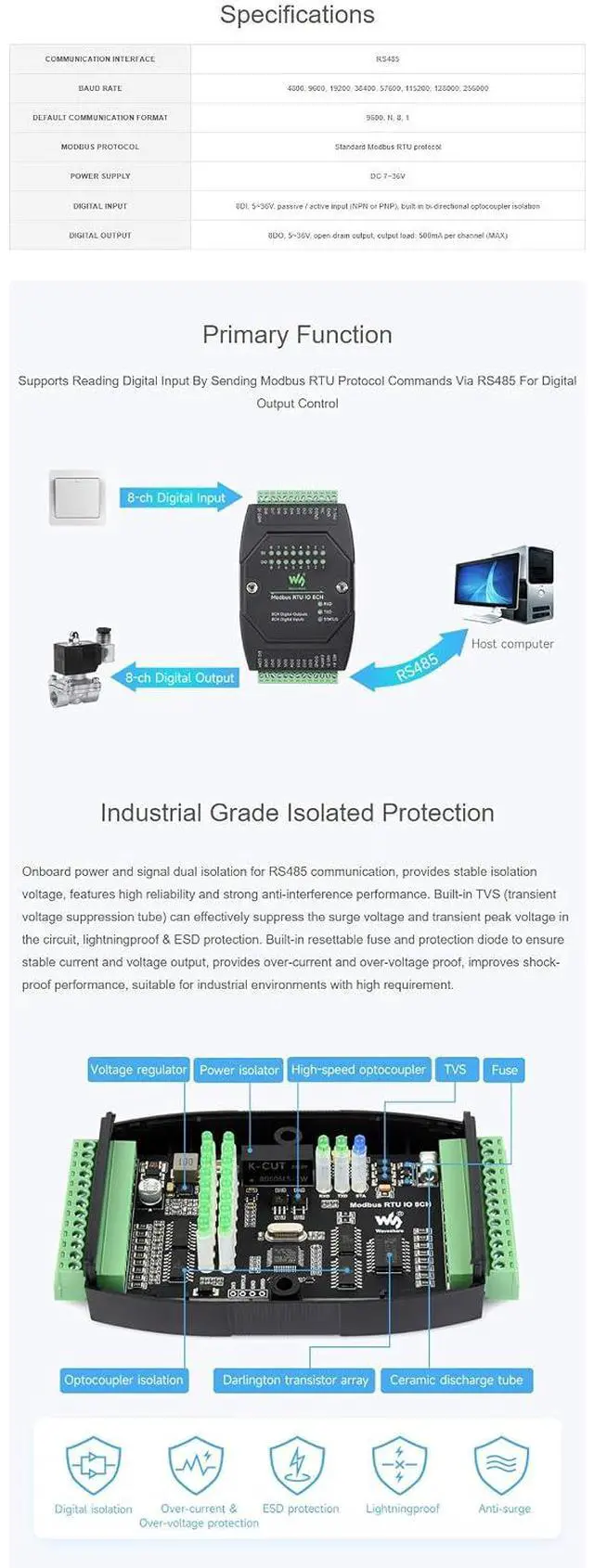

- Isolation/TVS/Fuse + DIN Rail Mount + LEDs: Includes power isolation + high-speed optocoupler isolation, TVS surge suppression and resettable fuse

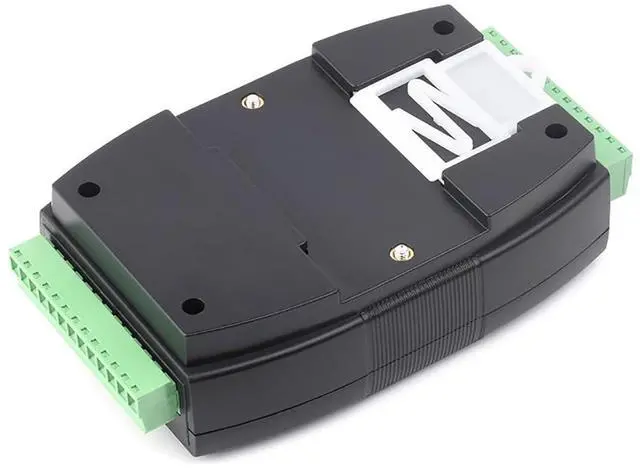

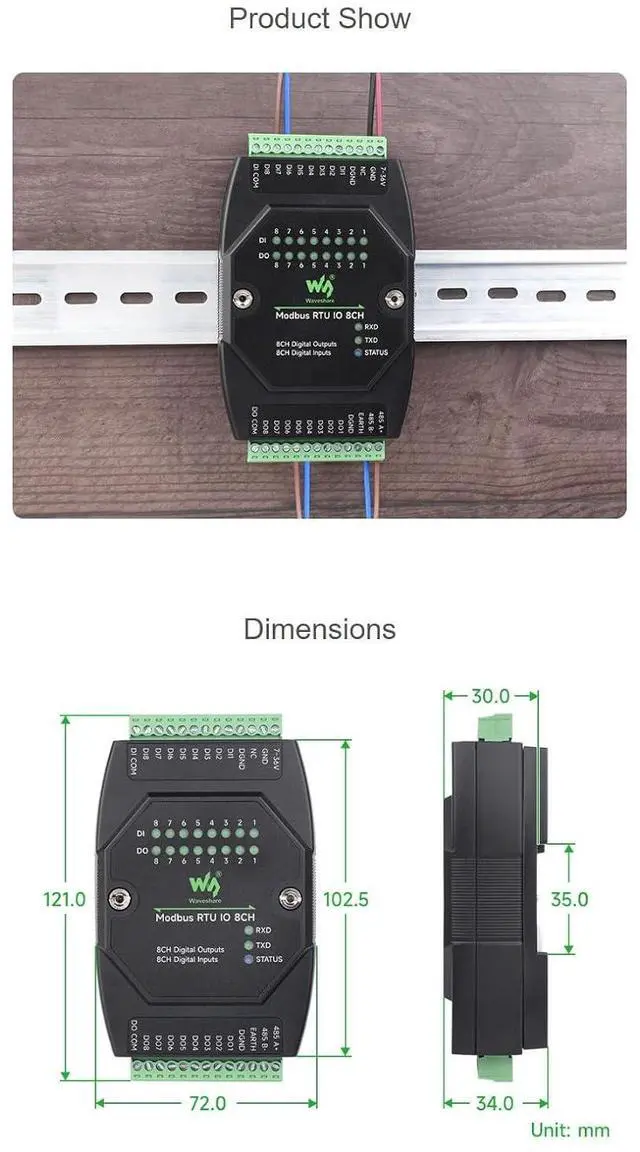

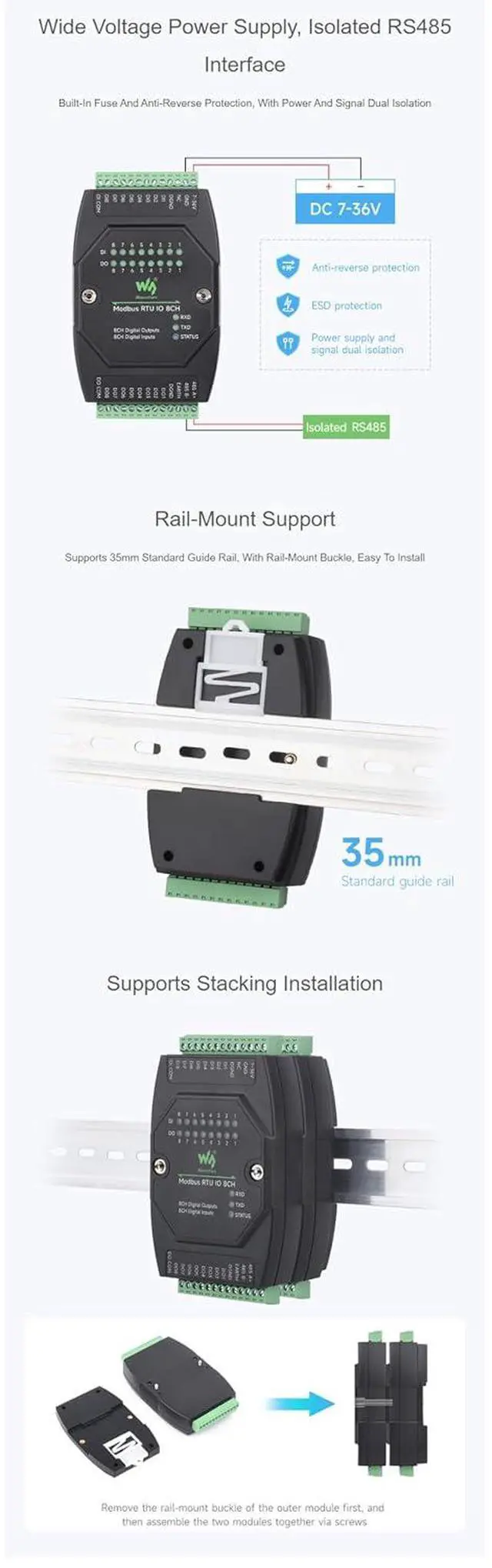

- compact 35mm DIN rail mount case supports stacking and has multiple status LEDs.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
8DI/8DO
RS485 Modbus RTU IO Module: Industrial Modbus RTU IO 8CH provides 8 digital inputs + 8 digital outputs controlled via wired RS485 Modbus RTU, ideal for PLC/automation cabinets.
Passive/Active DI (NPN/PNP) + Debounce: Supports passive and active digital input (NPN/PNP) with bi-directional optocoupler isolation and built-in debouncing, improving reliability for digital input module applications.
8DO Open-Drain 500mA Sink + Flyback Protection: Darlington open-drain outputs with optocoupler isolation provide up to 500mA sinking current per channel, with built-in flyback diode protection for driving relays and loads.
DC 736V Wide Supply + Address 1255: Onboard regulator supports DC 736V power
Modbus address 1255 enables multiple RS485 IO modules cascaded on the same bus.
Isolation/TVS/Fuse + DIN Rail Mount + LEDs: Includes power isolation + high-speed optocoupler isolation, TVS surge suppression and resettable fuse
compact 35mm DIN rail mount case supports stacking and has multiple status LEDs.
RS485 Modbus RTU IO Module: Industrial Modbus RTU IO 8CH provides 8 digital inputs + 8 digital outputs controlled via wired RS485 Modbus RTU, ideal for PLC/automation cabinets.
Passive/Active DI (NPN/PNP) + Debounce: Supports passive and active digital input (NPN/PNP) with bi-directional optocoupler isolation and built-in debouncing, improving reliability for digital input module applications.
8DO Open-Drain 500mA Sink + Flyback Protection: Darlington open-drain outputs with optocoupler isolation provide up to 500mA sinking current per channel, with built-in flyback diode protection for driving relays and loads.
DC 736V Wide Supply + Address 1255: Onboard regulator supports DC 736V power
Modbus address 1255 enables multiple RS485 IO modules cascaded on the same bus.
Isolation/TVS/Fuse + DIN Rail Mount + LEDs: Includes power isolation + high-speed optocoupler isolation, TVS surge suppression and resettable fuse
compact 35mm DIN rail mount case supports stacking and has multiple status LEDs.
