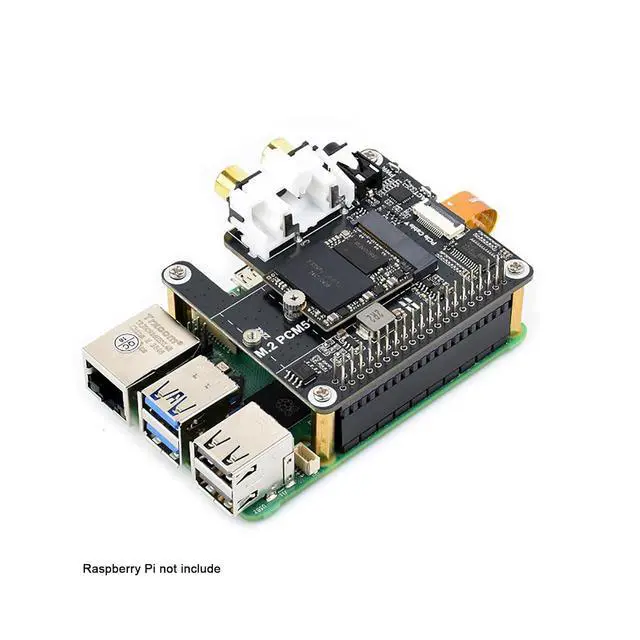

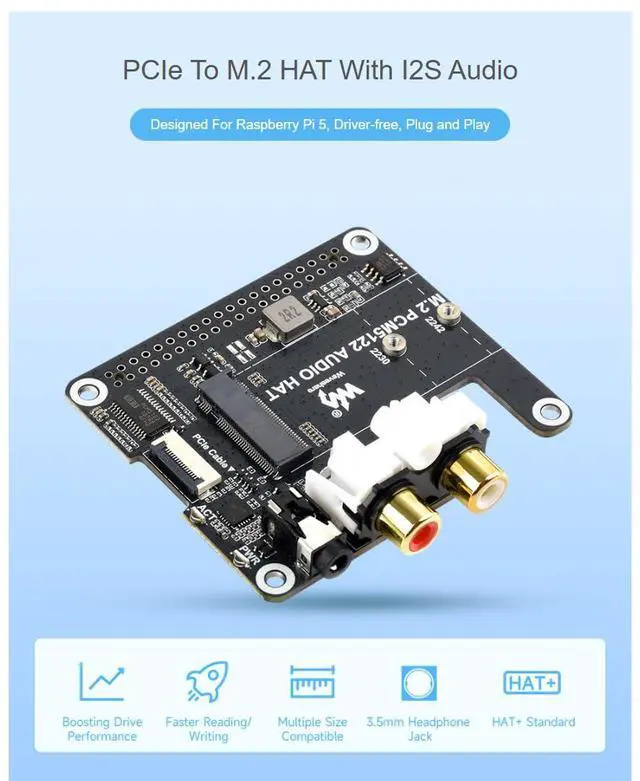

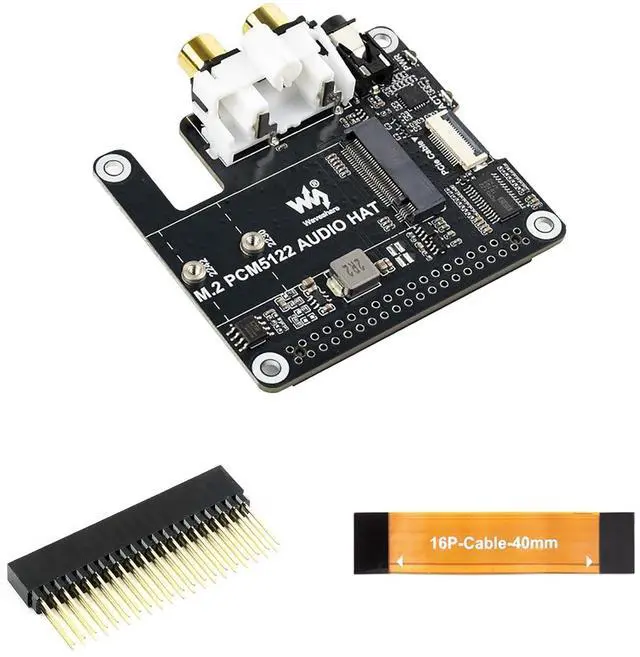

M.2 NVMe + PCM5122 I2S Audio HAT for Raspberry Pi 5/Series, PCIe to M.2 M-Key 2230/2242 SSD Adapter, 3.5mm Headphone Jack + RCA, 32-bit/384kHz DAC, EEPROM Auto Load, LEDs
- 2-in-1 NVMe + Audio HAT for Pi: PCIe to M.2 HAT adds M.2 NVMe SSD expansion and PCM5122 I2S audio in one board, optimized for Pi 5 PCIe (16-pin cable) and compatible with Pi series GPIO header.
- PCM5122 Stereo DAC, 32-bit/384kHz Hi-Res Audio: Uses PCM5122 stereo DAC (I2C control, I2S audio) supporting up to 32-bit and 384kHz sampling for clean playback on Pi audio HAT projects.
- 3.5mm Headphone Jack + RCA Connector Output: Onboard 3.5mm headphone jack and RCA connector for analog audio output to headphones, speakers, or amplifiersideal I2S audio expansion board for Pi builds.

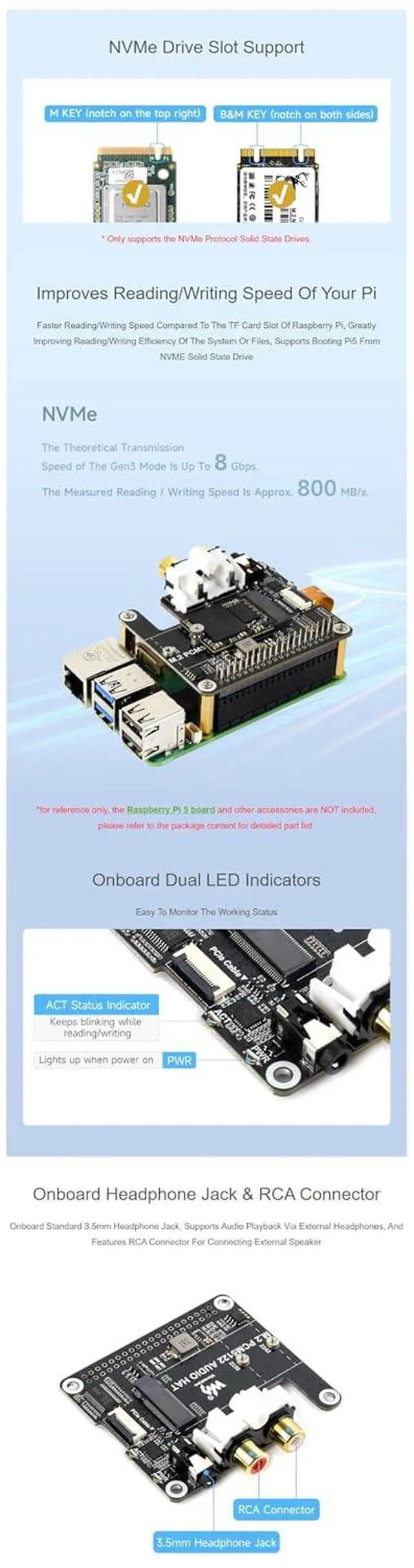

- M.2 M-Key 2230/2242 NVMe Support: Supports 2230/2242 M.2 NVMe (M-Key) in Gen2 mode and improves read/write speed vs microSD
- supports booting Pi 5 from NVMe SSD (system setup dependent).

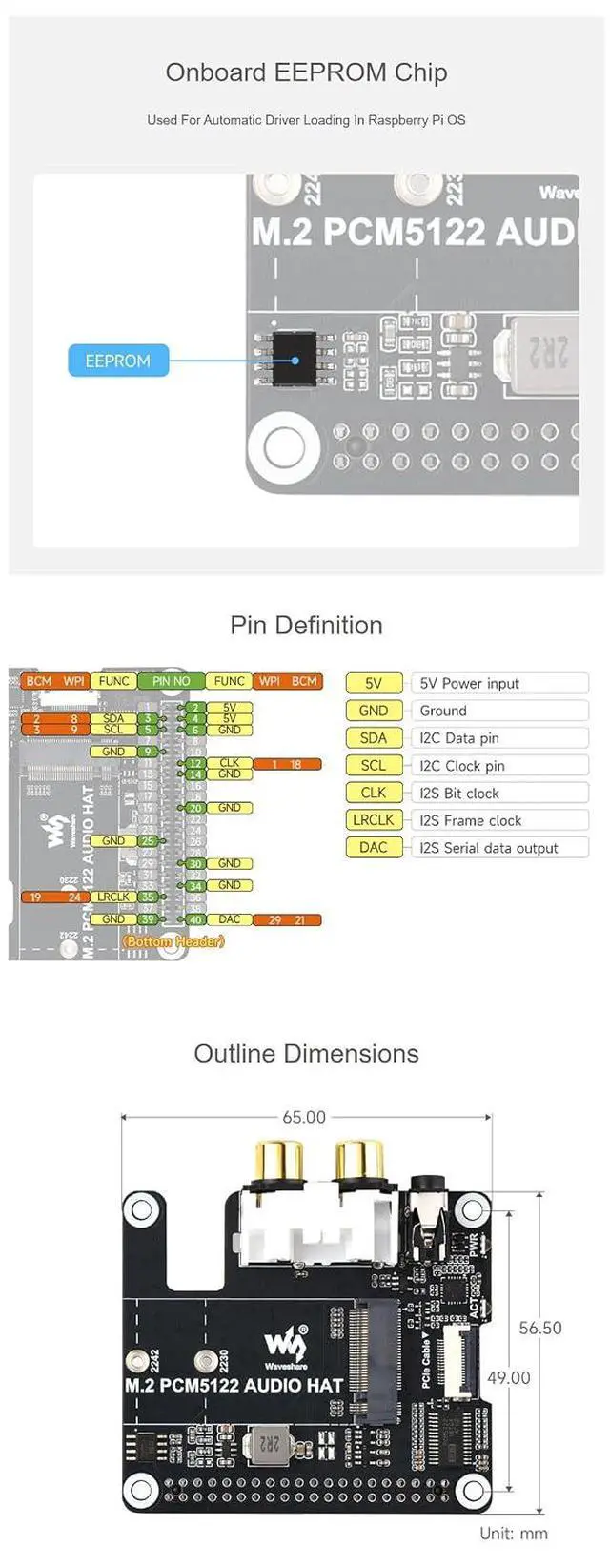

- EEPROM Auto Driver Loading + Dual LEDs: Onboard EEPROM enables automatic driver loading in Pi OS, and dual LED indicators help monitor working status for this NVMe + audio expansion HAT.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
2-in-1 NVMe + Audio HAT for
Pi: PCIe to M. 2 HAT adds M. 2 NVMe SSD expansion and PCM5122 I2S audio in one board, optimized for Pi 5 PCIe (16-pin cable) and compatible with Pi series GPIO header.
PCM5122 Stereo DAC,
32-bit/384kHz Hi-Res Audio: Uses PCM5122 stereo DAC (I2C control, I2S audio) supporting up to 32-bit and 384kHz sampling for clean playback on Pi audio HAT projects.
3.5 mm Headphone Jack + RCA Connector Output: Onboard 3.5 mm headphone jack and RCA connector for analog audio output to headphones, speakers, or amplifiersideal I2S audio expansion board for Pi builds.

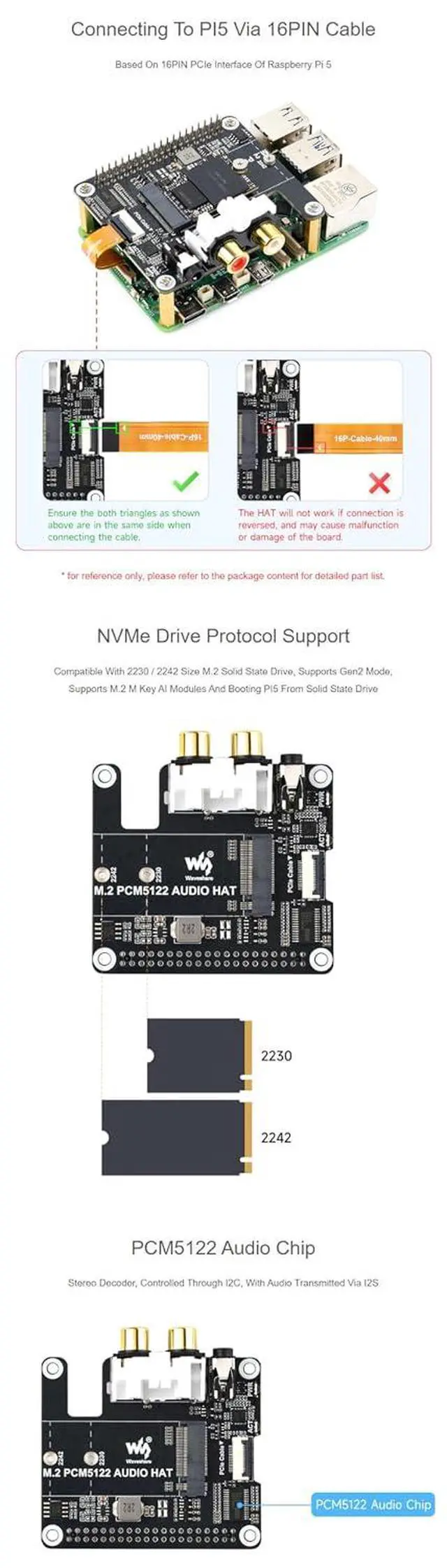

M. 2 M-Key 2230/2242
NVMe Support: Supports 2230/2242 M. 2 NVMe (M-Key) in Gen2 mode and improves read/write speed vs microSD
supports booting Pi 5 from NVMe SSD (system setup dependent).
EEPROM Auto Driver Loading + Dual LEDs: Onboard EEPROM enables automatic driver loading in Pi OS, and dual LED indicators help monitor working status for this NVMe + audio expansion HAT.
Pi: PCIe to M. 2 HAT adds M. 2 NVMe SSD expansion and PCM5122 I2S audio in one board, optimized for Pi 5 PCIe (16-pin cable) and compatible with Pi series GPIO header.
PCM5122 Stereo DAC,
32-bit/384kHz Hi-Res Audio: Uses PCM5122 stereo DAC (I2C control, I2S audio) supporting up to 32-bit and 384kHz sampling for clean playback on Pi audio HAT projects.
3.5 mm Headphone Jack + RCA Connector Output: Onboard 3.5 mm headphone jack and RCA connector for analog audio output to headphones, speakers, or amplifiersideal I2S audio expansion board for Pi builds.
M. 2 M-Key 2230/2242
NVMe Support: Supports 2230/2242 M. 2 NVMe (M-Key) in Gen2 mode and improves read/write speed vs microSD
supports booting Pi 5 from NVMe SSD (system setup dependent).
EEPROM Auto Driver Loading + Dual LEDs: Onboard EEPROM enables automatic driver loading in Pi OS, and dual LED indicators help monitor working status for this NVMe + audio expansion HAT.
