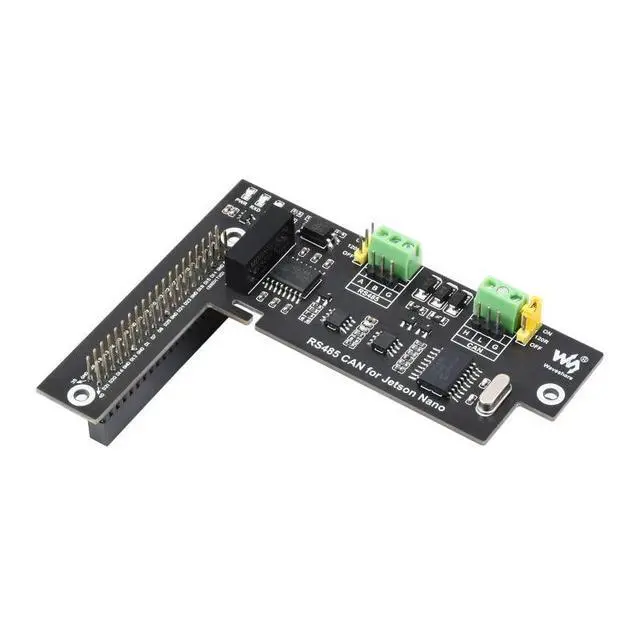

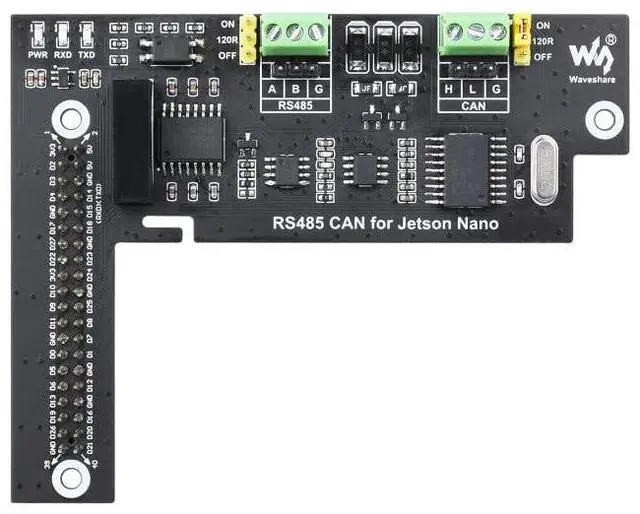

RS485 CAN Expansion Board for Jetson Nano, Isolation Circuit Design, Onboard TVS, Built-in Protection Circuit
- Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano

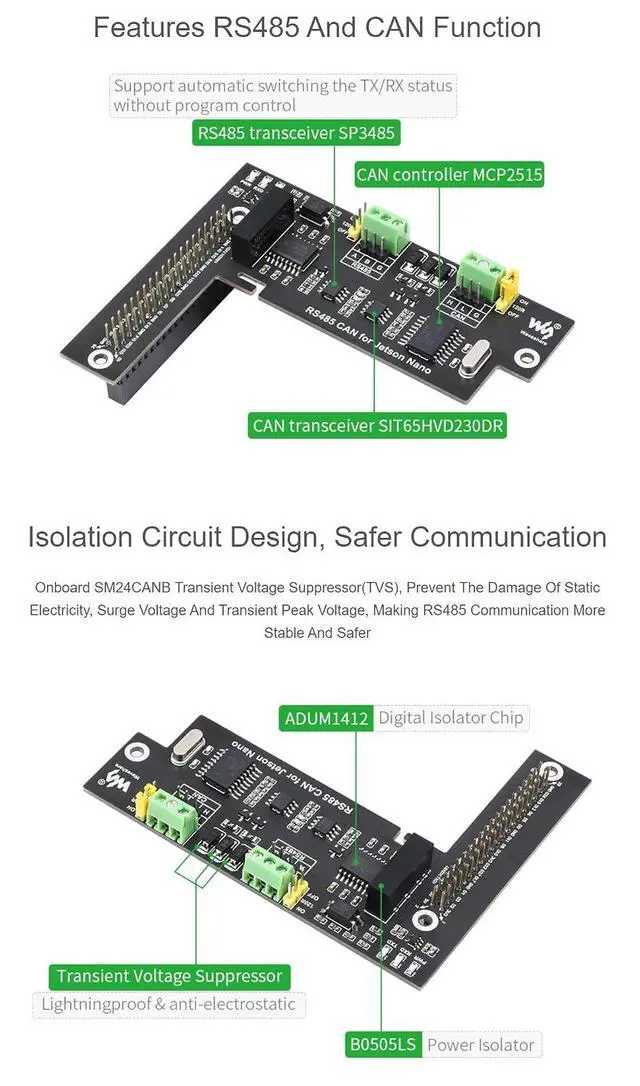

- Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
- Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
- Reserved control pins, allows to work with other control boards
- Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
Reserved control pins, allows to work with other control boards
Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
Reserved control pins, allows to work with other control boards
Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
