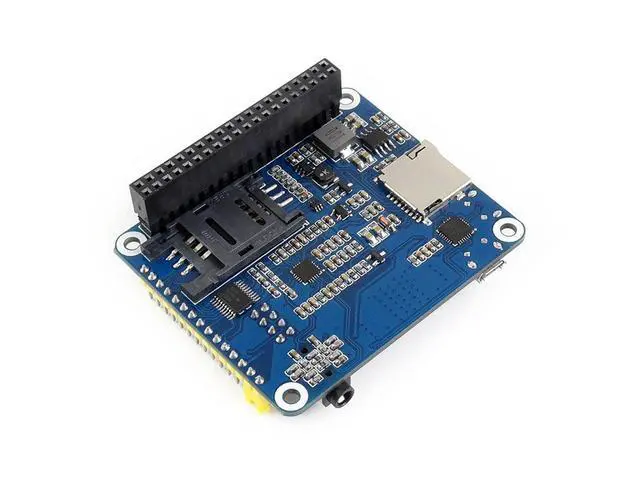

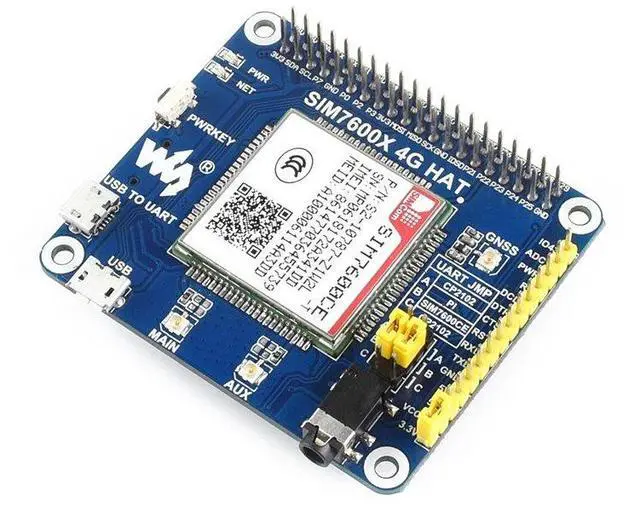

4G/3G/2G/GSM/GPRS/GNSS HAT for Raspberry Pi/Jetson Nano Based SIM7600G-H Support LTE CAT4 for Dial-up, Phone Call, SMS, MMS, Mail, TCP, UDP, DTMF, HTTP, FTP Global Position
- Standard Pi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano
- Breakout UART control pins, to connect with host boards like STM32
- Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, LBS base station positioning
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Onboard CP2102 USB to UART converter, for serial debugging
- Onboard audio jack and audio decoder for making telephone call
- Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
- SIM card slot, supports 1.8V/3V SIM card
- TF card slot for storing data like files, messages, etc.
- 2x LED indicators, easy to monitor the working status
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Standard Pi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano
Breakout UART control pins, to connect with host boards like STM32
Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
Supports GPS, BeiDou, Glonass, LBS base station positioning
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Onboard CP2102 USB to UART converter, for serial debugging
Onboard audio jack and audio decoder for making telephone call
Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
SIM card slot, supports 1.8V /3V SIM card
TF card slot for storing data like files, messages, etc.
2x LED indicators, easy to monitor the working status
Baudrate: 300bps ~ 4Mbps (default: 115200bps)
Autobauding baudrate: 9600bps ~ 115200bps
Control via AT commands (3GPP TS 27.007, 27.005, and V. 25TER command set)
Breakout UART control pins, to connect with host boards like STM32
Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
Supports GPS, BeiDou, Glonass, LBS base station positioning
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Onboard CP2102 USB to UART converter, for serial debugging
Onboard audio jack and audio decoder for making telephone call
Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
SIM card slot, supports 1.8V /3V SIM card
TF card slot for storing data like files, messages, etc.
2x LED indicators, easy to monitor the working status
Baudrate: 300bps ~ 4Mbps (default: 115200bps)
Autobauding baudrate: 9600bps ~ 115200bps
Control via AT commands (3GPP TS 27.007, 27.005, and V. 25TER command set)
