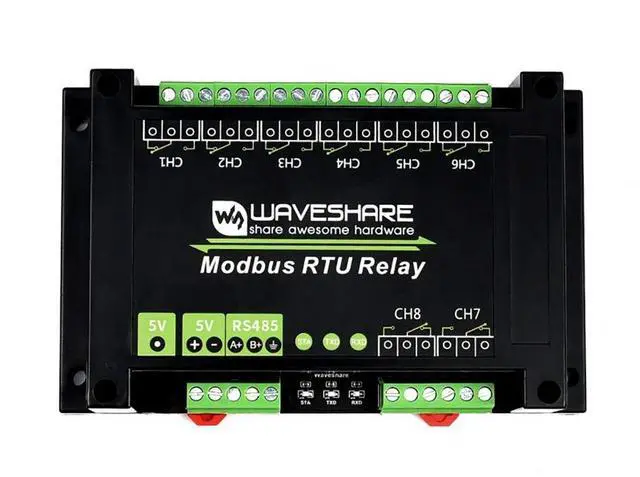

Industrial Modbus RTU 8-ch(Channel) Relay Module with RS485 Interface Multi Isolation Protection Circuits with ABS Enclosure Up to 10A Contact Rating

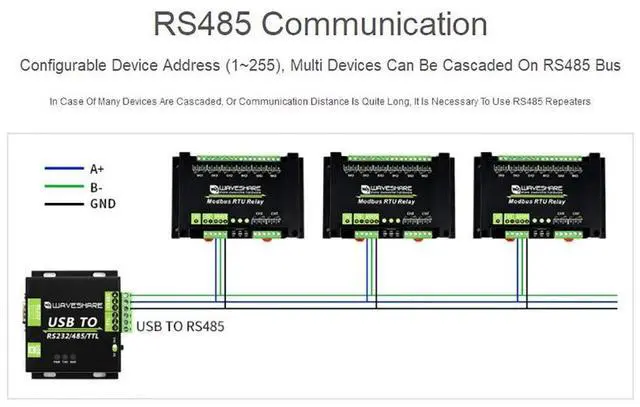

- Configurable device address (1~255), multi devices can be cascaded on RS485 bus
- Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically

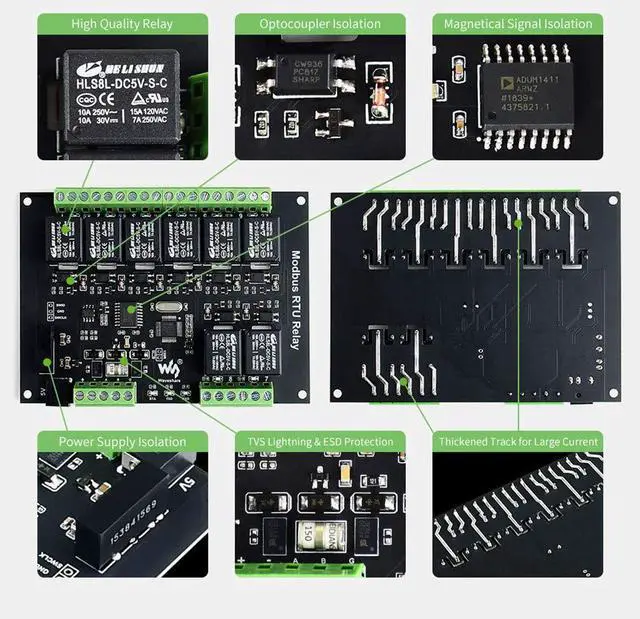

- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
- Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
- Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection

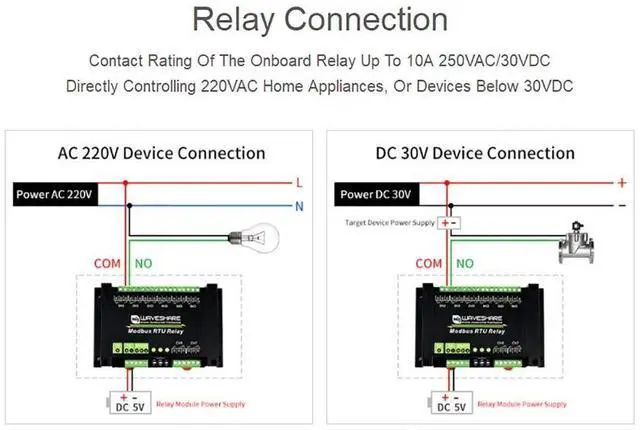

- High quality relay, contact rating: 10A 250VAC/30VDC

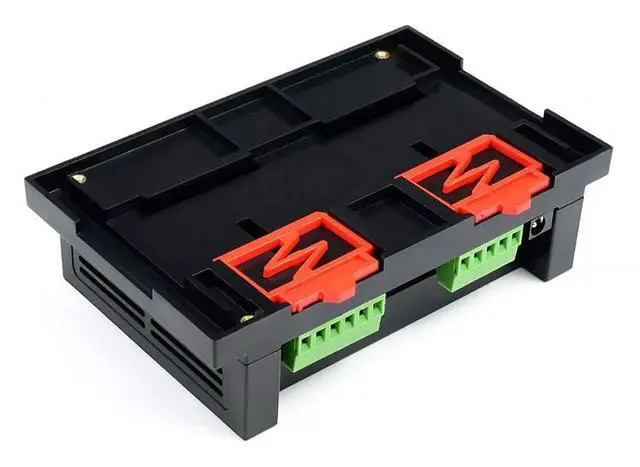

- Rail-mounted ABS plastic enclosure, easy to install, safe to use
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
High quality relay,
contact rating: 10A 250VAC/30VDC
Rail-mounted ABS plastic enclosure, easy to install, safe to use
Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
High quality relay,
contact rating: 10A 250VAC/30VDC
Rail-mounted ABS plastic enclosure, easy to install, safe to use
