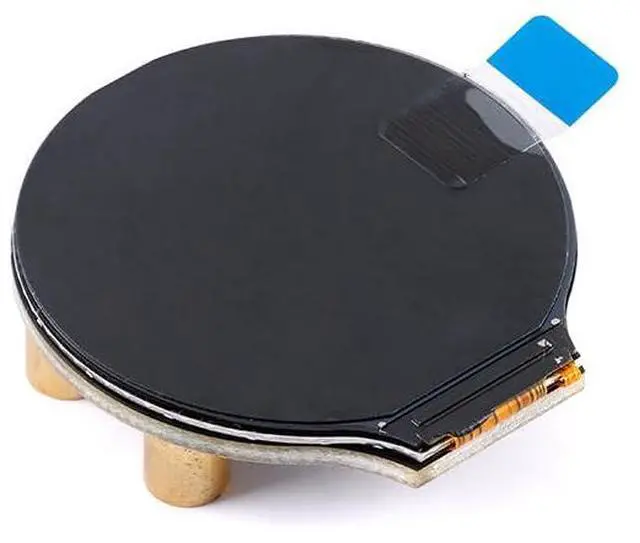

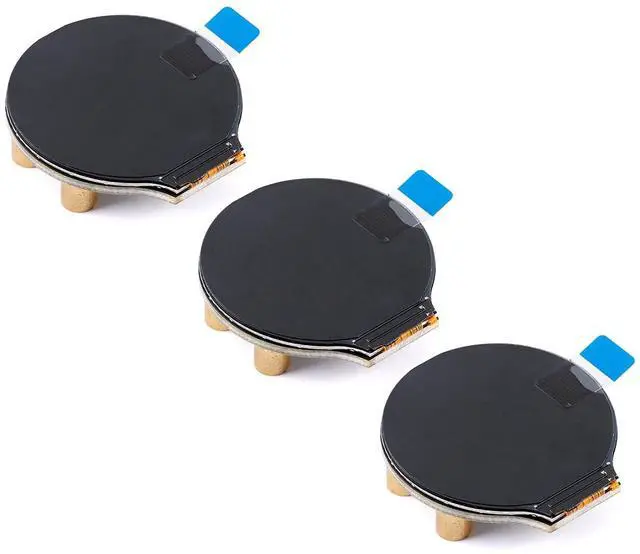

3Pcs 1.28 Inch TFT LCD Display Module Round GC9A01 Driver IPS LCD Screen Module Circular 4 Wire SPI Interface for Arduino

Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.

Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. GND

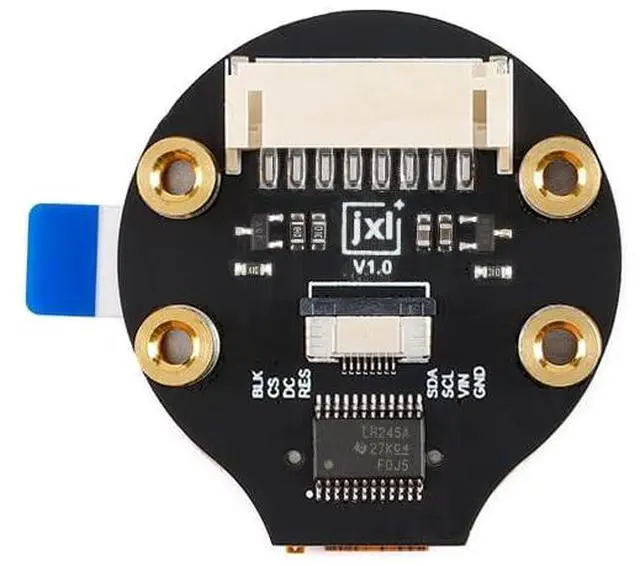

Power negative, ground VCC
Power supply positive, 3.3 -5V, need to be consistent with the communication level SCLSPI clock signal input port SDASPI data input port RES
Reset, low enable DCData/command select, low level command, high level data CSChip Select, Low Enable BLK
Backlight, Suspend Enable Ground Off, Default Pull-Up to 3.3V

Product Details

Arduino
Screen type: IPS
Working voltage: 3.3V /5V
Communication interface: 4-wire
SPI Resolution: 240x240
Pixel size: 0.135 x 0.135 mm
Display area: 32.4 mm in the middle
Driver chip: GC9A01
Working current: 20ma (typical)

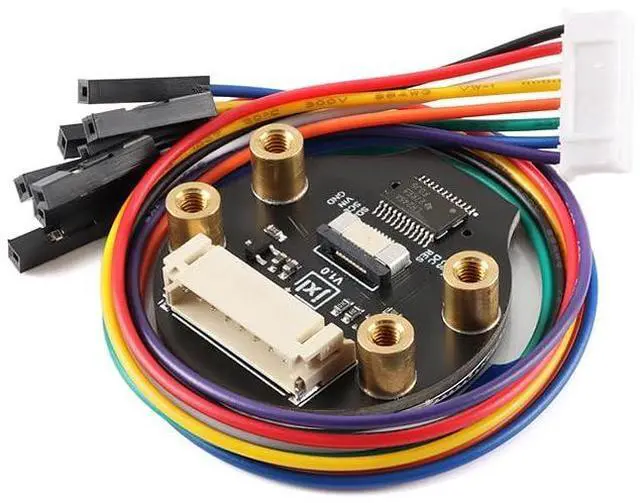

Interface model: PH2 0-8P/FPCO 5-8P Equipped with one PH 2.0 to DuPont female head wire
Positioning method: M3 screw (fixed to the copper column)

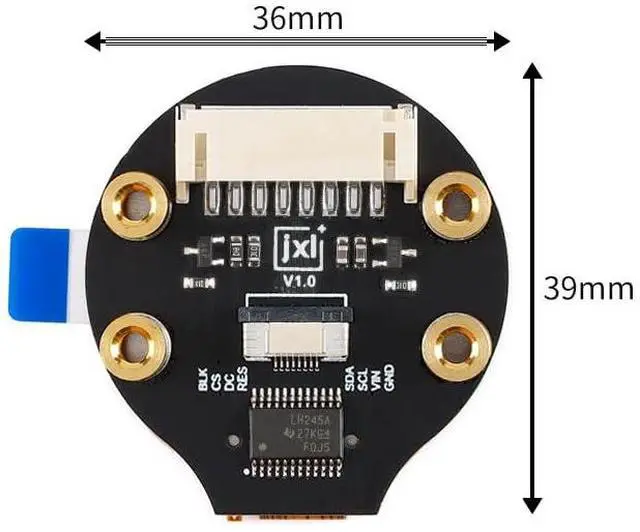

Module size: 36 * 38.8 * 9.4 mm/ 1.41 * 1.53 * 0.37 inch 1, the mo...
