1Pc MAX7219 Dot Matrix Module 4-in-1 LED Display Module for MCU Control
- MAX7219 4-in-1 Red Dot Matrix Module: This display module is built with the MAX7219 serial LED driver and combines four 8×8 common-cathode red LED matrices, making it ideal for scrolling text, numbers, symbols, patterns, and simple animation displays.; Drives 8x8 Common-Cathode LED Matrix: Each MAX7219 driver can control one 8x8 common-cathode dot matrix. The chip includes scan circuitry, segment drivers, and internal 8x8 static RAM, allowing stable and efficient LED matrix display control.; Simple Four-Wire Serial Interface: The module uses a convenient four-wire serial interface for easy connection to common microprocessors and microcontrollers. It requires only a few I/O pins, making it suitable for Arduino, STM32, 51 MCU, ARM, and other embedded platforms.; Adjustable Brightness and Low-Power Shutdown: The MAX7219 supports both analog and digital brightness control, a scan-limit register, display test mode, and a low-power shutdown mode of approximately 150 A, helping users customize brightness and reduce power consumption when needed.; Cascadable Design for Extended Displays: With input and output interfaces, multiple modules can be cascaded to create longer LED displays. The 5V module measures approximately 132 x 33 x 13 mm and includes 3 mm mounting holes for easy installation in DIY clocks, message boards, scoreboards, and prototype projects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The MAX7219 8×8 dot matrix display module is a practical LED display solution for microcontroller projects, DIY electronics, educational experiments, and embedded display applications. Built around the MAX7219 integrated serial input/output common-cathode display driver, this module can drive an 8×8 LED matrix with simple serial communication and only a few microcontroller pins.
Product
Driver Chip: MAX7219
Display Type: 8×8 common-cathode LED dot matrix
Display Capability: A single module can drive one 8×8 dot matrix
Interface Type: Serial input/output interface
Operating Voltage: 5V

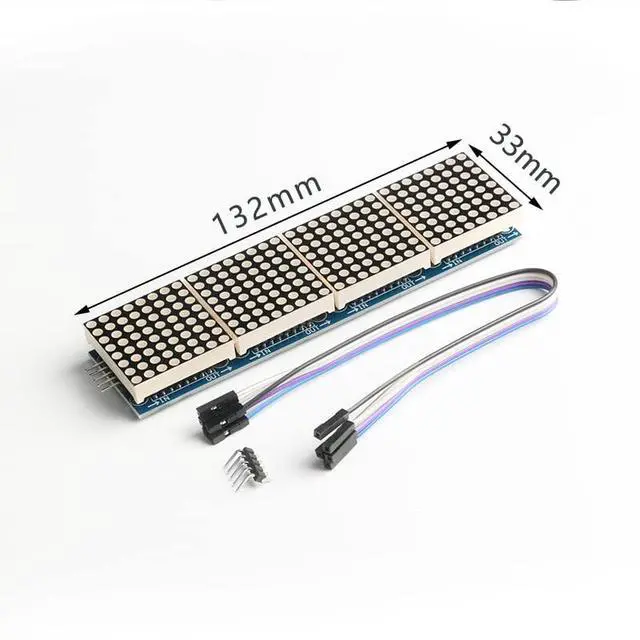

Module Dimensions: 132×33×13 mm
Mounting Holes: 32 screw holes
Mounting Hole Diameter: 3 mm
Cascading Support: Yes, input and output interfaces included
Display Features: Flicker-free display, brightness control, test mode, shutdown mode
Typical Applications: LED display projects, scrolling text, digital clock, message board, STEM education, DIY electronics
Product
Specifications
Product Name: MAX7219 8×8 Dot Matrix Display ModuleDriver Chip: MAX7219
Display Type: 8×8 common-cathode LED dot matrix
Display Capability: A single module can drive one 8×8 dot matrix
Interface Type: Serial input/output interface
Operating Voltage: 5V
Module Dimensions: 132×33×13 mm
Mounting Holes: 32 screw holes
Mounting Hole Diameter: 3 mm
Cascading Support: Yes, input and output interfaces included
Display Features: Flicker-free display, brightness control, test mode, shutdown mode
Typical Applications: LED display projects, scrolling text, digital clock, message board, STEM education, DIY electronics
