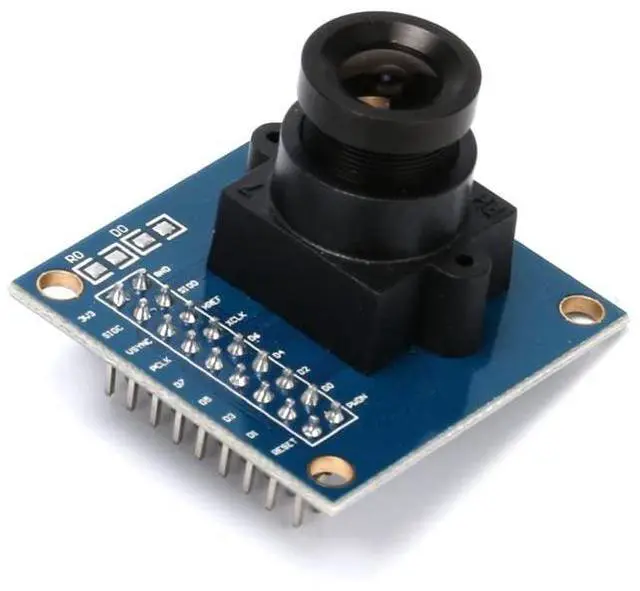

1Pc OV7670 Camera Module for STM32 MCU, Microcontroller DIY Board
- OV7670 VGA Camera Module: This OV7670 camera module features a 640×480 active array size and is designed for embedded vision projects, STM32 camera experiments, image acquisition, color recognition, smart car vision, and microcontroller-based imaging applications.; Multiple 8-Bit Output Formats: The module supports several image output formats, including YUV/YCbCr 4:2:2, RGB565, RGB555, RGB444, GRB 4:2:2, and Raw RGB data. These flexible formats make it suitable for TFT display projects, image processing, data transmission, and vision learning applications.; Up to 30fps VGA Image Transfer: With a maximum image transfer rate of 30fps at VGA resolution and progressive scan mode, the OV7670 can provide continuous frame output for real-time image capture, motion detection, color tracking, and educational vision development.; Low-Power CMOS Sensor Design: The sensor operates with low-voltage power requirements, including a 1.8V digital core, 2.45V3.0V analog supply, and 1.7V3.0V I/O voltage. Standby current is less than 20µA, making it suitable for compact embedded systems and low-power camera projects.; For STM32 and MCU Development: This camera module is suitable for STM32 and other microcontroller platforms that support parallel camera data acquisition. It is a practical choice for learning camera timing, frame data capture, basic image processing, and embedded machine vision experiments.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

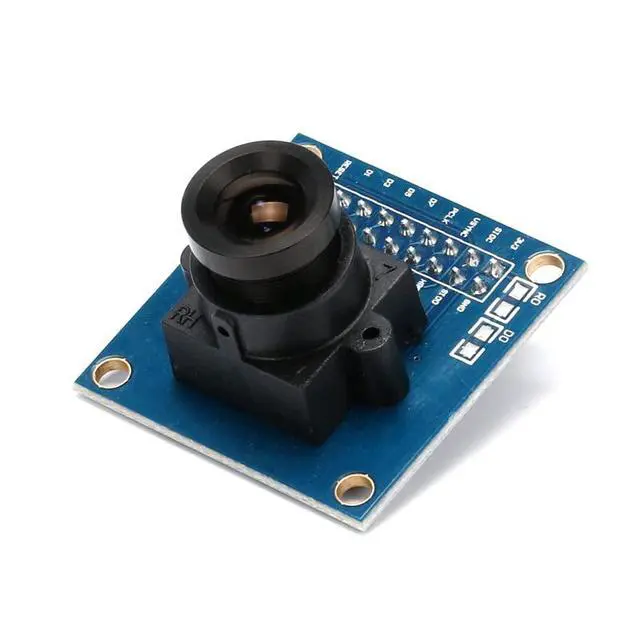

OV7670 Camera Module with STM32 Driver Microcontroller, VGA 640×480 CMOS Image Sensor Module, FIFO Control Pins, 8-Bit Output, Integrated Electronics Learning Kit
Product
Camera Module Sensor Type: CMOS camera module
Active Array Size: 640 × 480 Maximum
Image Transfer Rate: 30 fps for VGA
Output Formats 8-bit: YUV /
YCbCr 4:2: 2; RGB565 / 555 / 444;
GRB 4:2: 2;
Raw RGB Data Scan Mode: Progressive
Lens Size: 1/6 inch
Chief Ray Angle: 25°
Sensitivity: 1.3 V/(Lux · sec)
S/N Ratio: 46 dB
Dynamic Range: 52 dB
Electronic Exposure: Up to 510:1 for selected fps
Pixel Size: 3.6 µm × 3.6 µm
Dark Current: 12 mV/s at 60°C
Well Capacity: 17 ke
Image Area: 2.36 mm × 1.76 mm
Package Dimensions: 3785 µm × 4235 µm
Standby Current: <20 µA
Operating Temperature: -30°C to 70°C

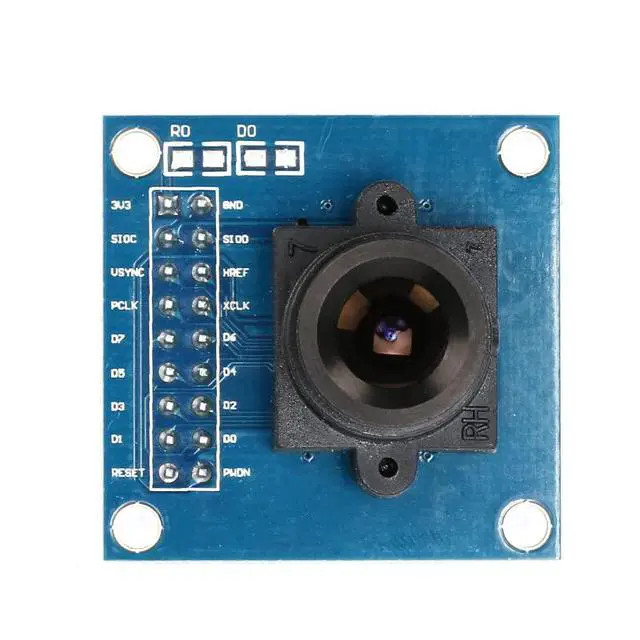

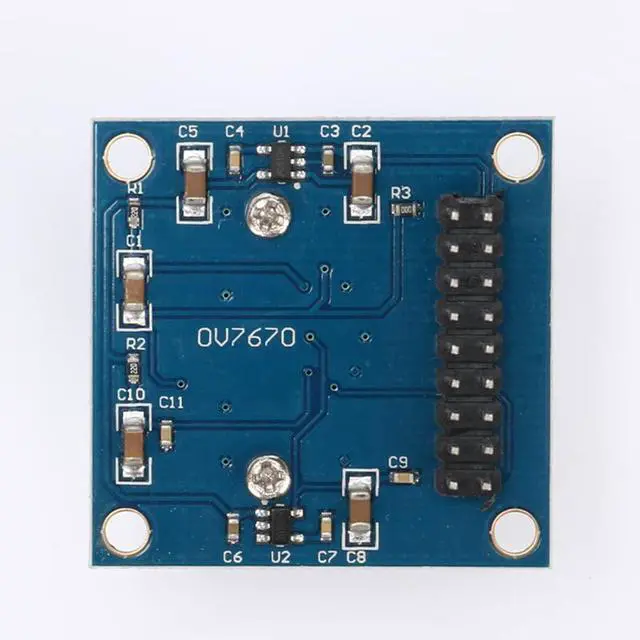

Pin Definitions 3V3: Input power supply voltage GND /
GDN: Power supply ground
SIO_C: SCCB interface control clock
SIO_D: SCCB interface serial data input/output pin.
VSYNC: Frame synchronization output signal
HREF: Horizontal reference / line synchronization output signal
PCLK: Pixel clock output signal
XCLK: External clock input signal D0D 7: 8 -bit parallel image data output pins
RESTE: Reset pin; set high during normal operation
PWDN: Power-down / power consumption selection mode; set low during normal operation
STROBE: Camera flash control port; not required during normal operation
FIFO_RCK: FIFO memory read clock control pin
FIFO_WR_CTR: FIFO write control pin; 1 enables CMOS writi...
Product
Specifications
Product Name: OV7670Camera Module Sensor Type: CMOS camera module
Active Array Size: 640 × 480 Maximum
Image Transfer Rate: 30 fps for VGA
Output Formats 8-bit: YUV /
YCbCr 4:2: 2; RGB565 / 555 / 444;
GRB 4:2: 2;
Raw RGB Data Scan Mode: Progressive
Lens Size: 1/6 inch
Chief Ray Angle: 25°
Sensitivity: 1.3 V/(Lux · sec)
S/N Ratio: 46 dB
Dynamic Range: 52 dB
Electronic Exposure: Up to 510:1 for selected fps
Pixel Size: 3.6 µm × 3.6 µm
Dark Current: 12 mV/s at 60°C
Well Capacity: 17 ke
Image Area: 2.36 mm × 1.76 mm
Package Dimensions: 3785 µm × 4235 µm
Standby Current: <20 µA
Operating Temperature: -30°C to 70°C
Pin Definitions 3V3: Input power supply voltage GND /
GDN: Power supply ground
SIO_C: SCCB interface control clock
SIO_D: SCCB interface serial data input/output pin.
VSYNC: Frame synchronization output signal
HREF: Horizontal reference / line synchronization output signal
PCLK: Pixel clock output signal
XCLK: External clock input signal D0D 7: 8 -bit parallel image data output pins
RESTE: Reset pin; set high during normal operation
PWDN: Power-down / power consumption selection mode; set low during normal operation
STROBE: Camera flash control port; not required during normal operation
FIFO_RCK: FIFO memory read clock control pin
FIFO_WR_CTR: FIFO write control pin; 1 enables CMOS writi...
