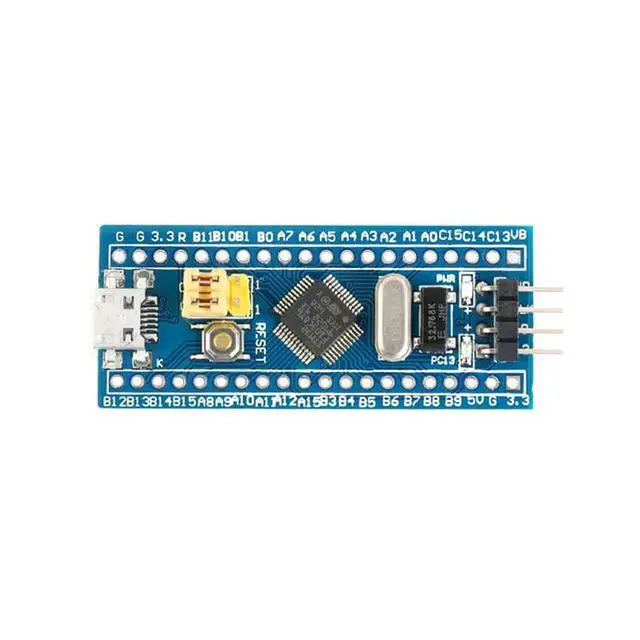

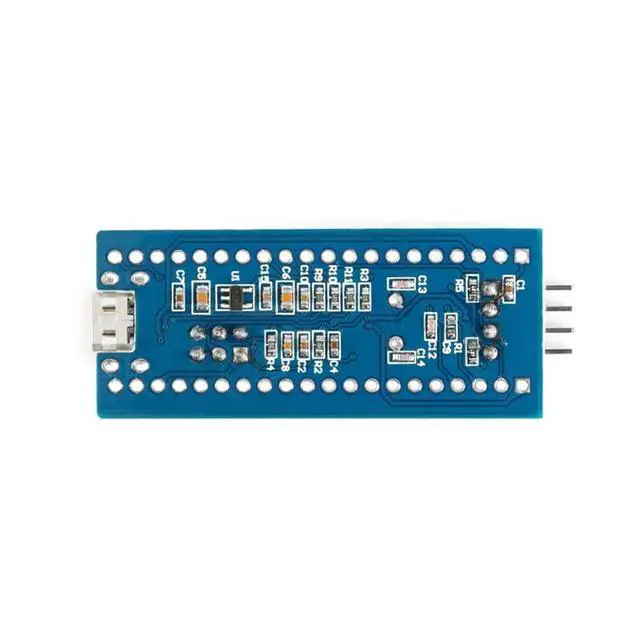

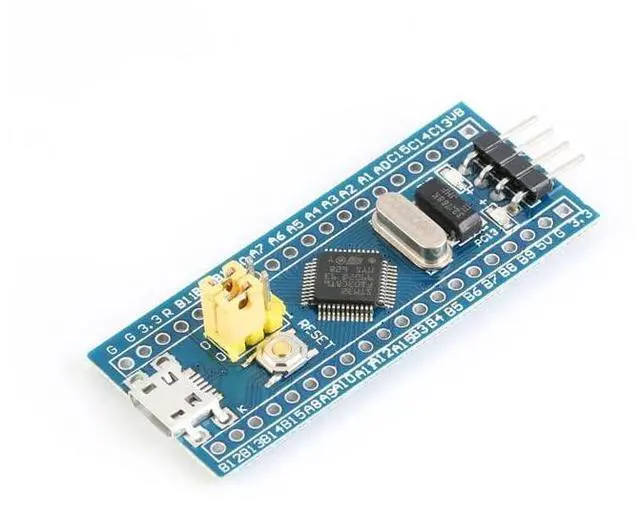

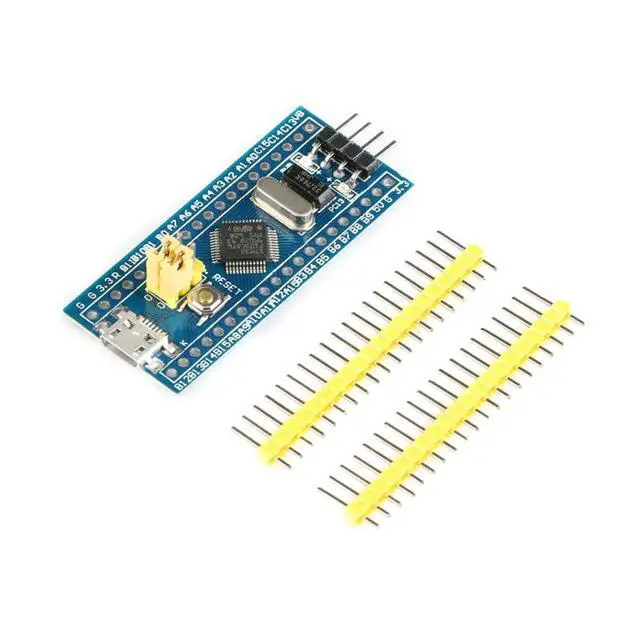

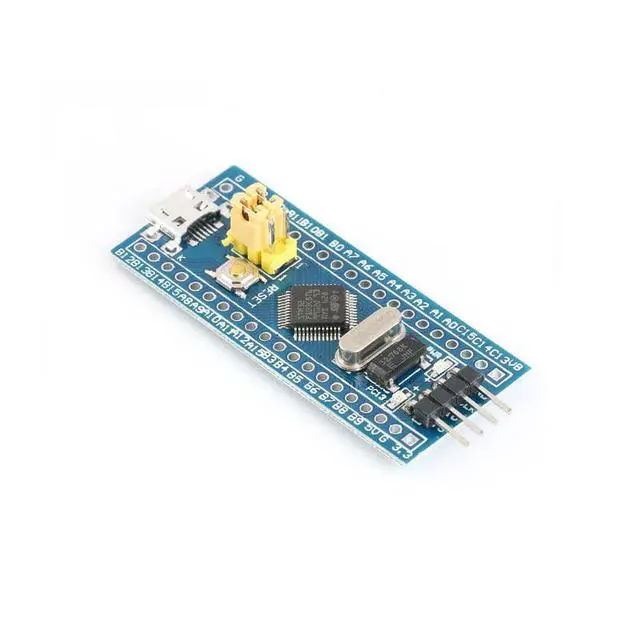

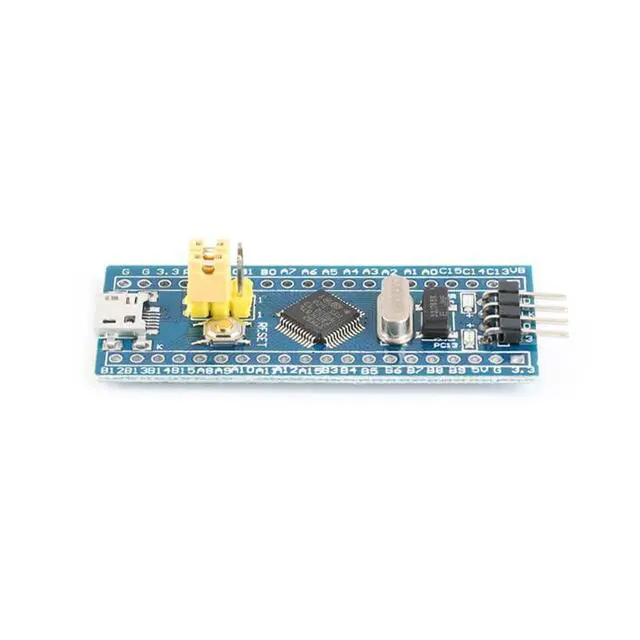

1Pc STM32F103C8T6 ARM Core Board STM32 Microcontroller System Board
- STM32F103C8T6 Development Board: This STM32F103C8T6 system board is built around a 32-bit ARM Cortex-M3 microcontroller with a maximum clock speed of 72MHz, making it suitable for embedded development, electronics learning, robotics control, sensor acquisition, and industrial control prototypes.; Rich On-Chip Peripheral Resources: The STM32F103C8T6 integrates 12-bit ADCs, multiple timers, DMA, USART, SPI, I2C, USB, CAN, and fast GPIO resources. It can easily connect to sensors, displays, motor drivers, communication modules, memory devices, and other common electronic components.; Powerful ADC and Timer Functions: With two 12-bit ADCs, up to 16 analog input channels, and conversion time as fast as 1s, this board is ideal for multi-channel analog data acquisition. The built-in timers support PWM output, input capture, output comparison, pulse counting, and motor control applications.; Multiple Communication Interfaces: The board supports serial communication, I2C devices, SPI peripheral expansion, USB 2.0 Full-Speed communication, and CAN 2.0B active bus control. It is suitable for communication experiments, sensor networks, smart car projects, IoT nodes, and automotive or industrial bus learning.; SWD/JTAG Debugging and Low-Power Modes: The board supports SWD/JTAG debug interfaces for program download, in-circuit debugging, and step-by-step execution with tools such as Sleep, stop, and standby low-power modes help support battery-powered devices, IoT nodes, portable instr...
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
ARM Core Board STM32F103C8T6 System Board, STM32 Microcontroller Development Board, 32-bit Cortex-M3 72MHz MCU Board with USB CAN SPI I2C USART ADC PWM SWD JTAG Interface The STM32F103C8T6 system board is a compact ARM microcontroller development board designed around the STM32F103C8T6 microcontroller. The core chip belongs to the STM32F103x8 / STM32F103xB series and features a 32-bit ARM Cortex-M3 CPU with a maximum clock speed of 72 MHz, providing stable performance for embedded control, communication experiments, sensor acquisition, robotics control, and electronics learning.
Product
Core Chip: STM32F103C8T6
Core Architecture: ARM 32-bit
Cortex-M3 CPU Maximum Clock Speed: 72
MHz Performance: Approx. 1.25 DMIPS/MHz, Dhrystone 2.1
Flash Capacity: 64 KB
Flash SRAM: 20 KB SRAM
Operating Voltage: 2.0V 3.6V
Package Type: STM32F103C8T6 is typically available in
LQFP48 I/O Pins: Up to 80 high-speed I/O pins; actual available pins depend on package and board pinout
ADC: 2 × 12-bit ADCs, 1 s conversion time, up to 16 input channels
Timers: Up to 7 timers
Communication Interfaces: USART, SPI, I²C, USB, CAN, etc.
Debug Interfaces: SWD /
JTAG DMA: 7-channel DMA controller
Low-Power Modes: Sleep, stop, and standby modes
Clock Resources: External 416 MHz crystal oscillator; internal 8 MHz RC, 40 kHz RC, 32 kHz RTC crystal oscillators, etc.
Reset / Power Management: POR/PDR power-on/power-down reset; PVD programmable voltage det...
Product
Specifications
Product Name: STM32F103C8T6 System BoardCore Chip: STM32F103C8T6
Core Architecture: ARM 32-bit
Cortex-M3 CPU Maximum Clock Speed: 72
MHz Performance: Approx. 1.25 DMIPS/MHz, Dhrystone 2.1
Flash Capacity: 64 KB
Flash SRAM: 20 KB SRAM
Operating Voltage: 2.0V 3.6V
Package Type: STM32F103C8T6 is typically available in
LQFP48 I/O Pins: Up to 80 high-speed I/O pins; actual available pins depend on package and board pinout
ADC: 2 × 12-bit ADCs, 1 s conversion time, up to 16 input channels
Timers: Up to 7 timers
Communication Interfaces: USART, SPI, I²C, USB, CAN, etc.
Debug Interfaces: SWD /
JTAG DMA: 7-channel DMA controller
Low-Power Modes: Sleep, stop, and standby modes
Clock Resources: External 416 MHz crystal oscillator; internal 8 MHz RC, 40 kHz RC, 32 kHz RTC crystal oscillators, etc.
Reset / Power Management: POR/PDR power-on/power-down reset; PVD programmable voltage det...
