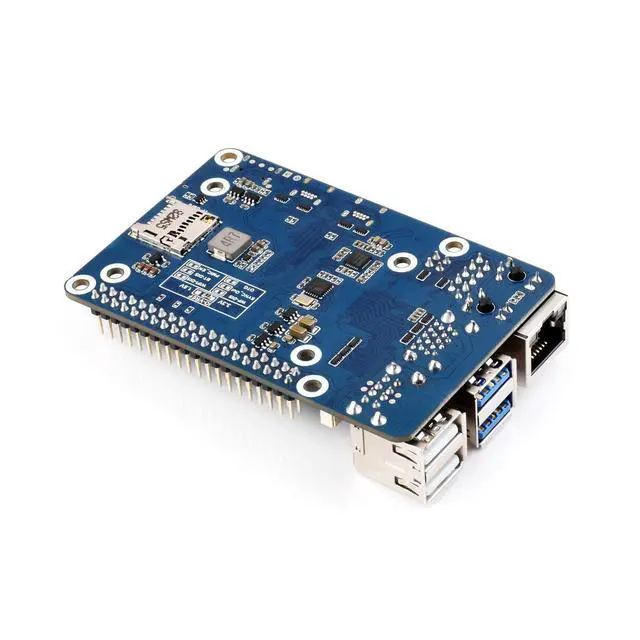

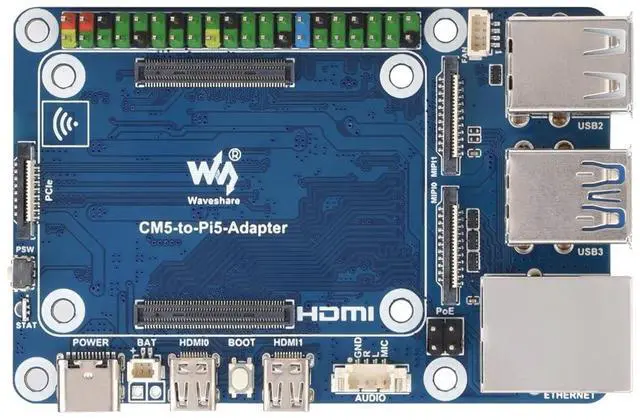

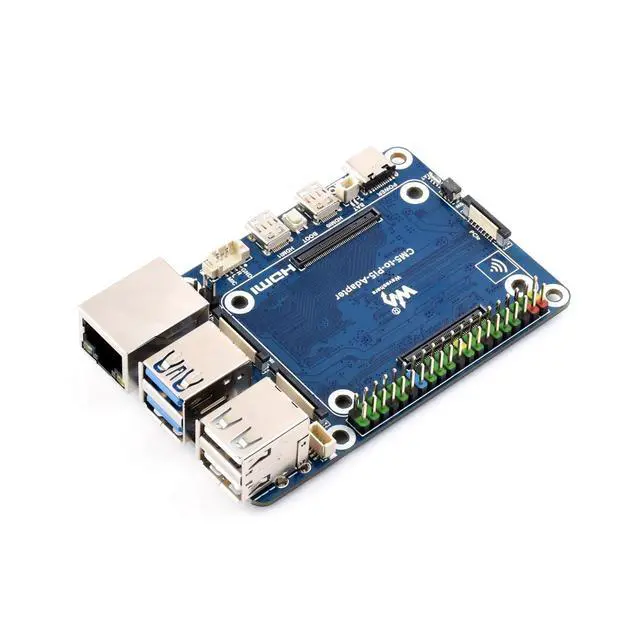

CM5 IO Board to Pi5 Alternative Adapter Board Carrier Expansion for RasPi RPI Raspberry Pi Compute Module 5 IOBoard Lite eMMC Projects 4GB 8GB 16GB 32GB RAM
- Note: The Raspberry Pi CM5 board is not included. This is the CM5-to-Pi5-Adapter
- This expansion board is only compatible with Raspberry Pi CM5. With this expansion board, your CM5 will have the same interface as Raspberry Pi 5
- More details are in the Wiki manual. I also have some CM5 accessories in my shop, so please visit my Amazon shop
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features and
Precautions 1: Do not plug or unplug any devices other than USB and HDMI while the power is on.
2: The Type-C can be used as a USB slave port for image writing.
3: Dual USB 3.2 Gen1 ports are standard.
4: By adding the MIPI DSI driver, quad-screen display is supported. Regardless of whether a monitor is connected, the system will default to the connected state and the screen will be displayed in split-screen mode (depending on the system version).
5: Onboard BOOT function. Press the BOOT button before powering on the device and connect it to a computer via Type-C to enter writing mode.
6: Do not connect any other devices when writing via Type-C. Insufficient power supply may cause the device to be recognized.
7: The maximum output of the USB 2.0 port is 2A, and the maximum output of the USB 3.0 port is 2A.
Precautions 1: Do not plug or unplug any devices other than USB and HDMI while the power is on.
2: The Type-C can be used as a USB slave port for image writing.
3: Dual USB 3.2 Gen1 ports are standard.
4: By adding the MIPI DSI driver, quad-screen display is supported. Regardless of whether a monitor is connected, the system will default to the connected state and the screen will be displayed in split-screen mode (depending on the system version).
5: Onboard BOOT function. Press the BOOT button before powering on the device and connect it to a computer via Type-C to enter writing mode.
6: Do not connect any other devices when writing via Type-C. Insufficient power supply may cause the device to be recognized.
7: The maximum output of the USB 2.0 port is 2A, and the maximum output of the USB 3.0 port is 2A.
