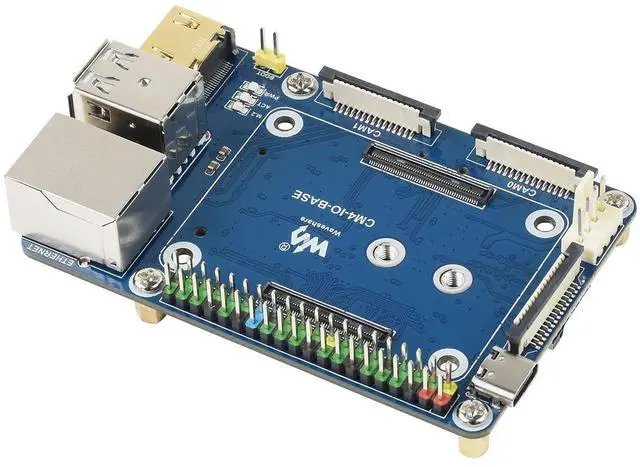

Mini Base USB HUB IO I/O Breakout Expansion Board for RPI Raspberry Pi Compute Module 4 CM4 4GB 8GB, with 40PIN GPIO Interface RJ45 Ethernet

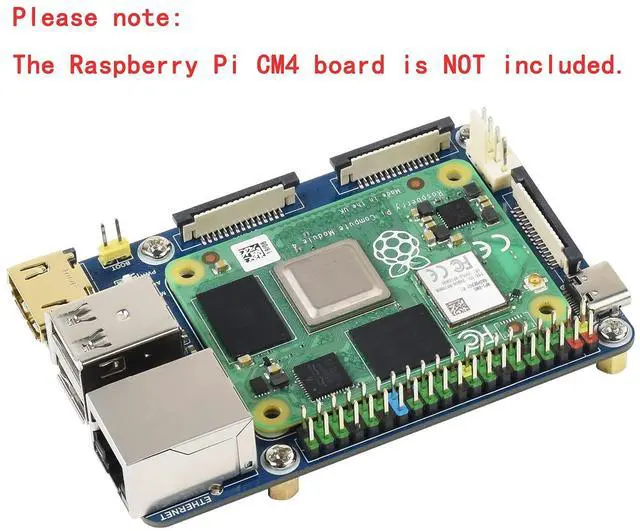

Mini Base Board (B) Designed For Raspberry Pi Compute Module 4
Note 1: This model only support 5V fan and cannot work with the 12V fan. Please confirm the fan voltage before connecting.
2: The DSI Display Port is connecting the DSI0 interface of the CM4, and doesn't use the DSI1 display interface.
3: The Type C interface can be used for power supply or USB SLAVE interface for burning the image.
4: In order to ensure the normal power supply of CM4, please do not connect other devices when using the Type C interface to burn the image.
5: It needs to use a 5V 2A power supply for CM4. Otherwise, problems such as automatic shutdown, frequency reduction, etc. may occur.

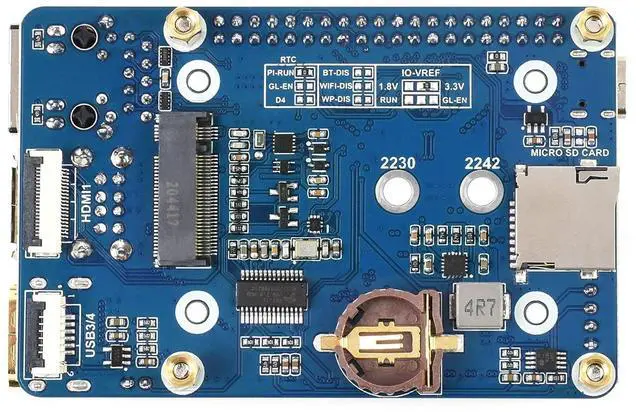

6: When using the M. 2 interface, please use the matching screws. Using screws of other lengths may cause the CM4 core to be damaged by the screws.
7: The module doesn't have any protection circuit, please do not short-circuit the power supply.
8: USB 2.0 is closed by default, if you need to open it, you need to add dtoverlay=dwc2, dr_mode=host in config. txt. 9. HDMI1 uses a flat cable output, if you need to use it, you can purchase an HDMI adapter. 10. This expansion board does not support POE function.
