915MHz SPI LoRa IoT Project HAT for RPI Raspberry Pi PICO 2 W PICO2 Starter Kit RP2040 RP2350 Expansion Board Programming Coding Accessories

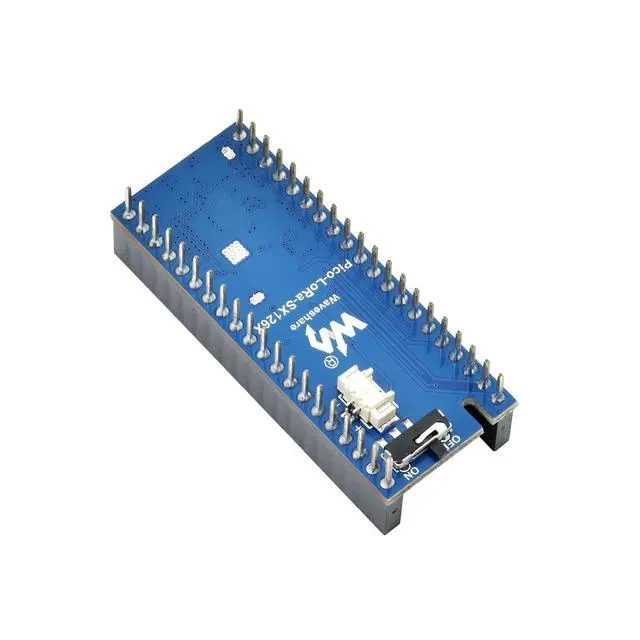

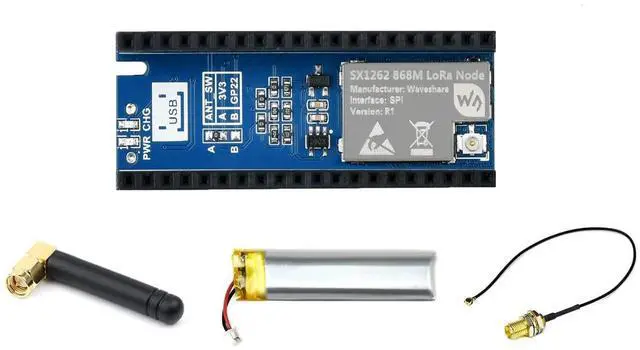

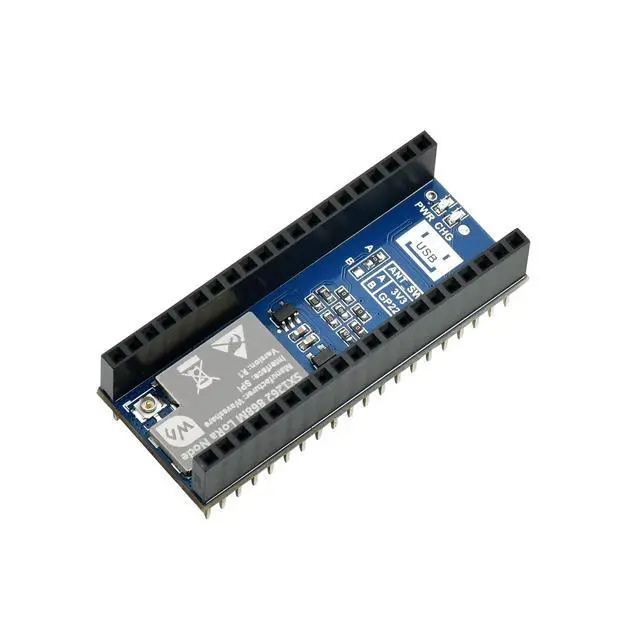

This is a LoRa node expansion module designed for Raspberry Pi Pico, based on the SX1262, which offers better performance than the SX127X series. LoRa modulation technology solves the balance problem among transmission distance, interference immunity, and power consumption that cannot be addressed by conventional solutions. It supports the LoRaWAN protocol, so you can connect to TTN and ChirpStack servers via a LoRa gateway and use LoRa cloud services quickly and easily. The standard Raspberry Pi Pico header supports Raspberry Pi Pico series boards. It supports the LoRaWAN protocol and is available in various frequency bands.

It adopts an active temperature-compensated crystal oscillator to ensure stable long-term operation under extreme high/low temperature conditions. Supports FSK, GFSK, LoRa modulation, excellent blocking resistance, and ultra-long-distance communication. The PH 1.25 battery header and charging controller allow you to connect a rechargeable lithium battery. High receiving sensitivity (up to -148 dBm), programmable transmit power (up to 22 dBm). Data packet engine up to 256 bytes, supporting preamble detection with CRC.
