EAI RPLIDAR X4 PRO Lidar 2D 360 Degree Lidar Sensor, 12Hz Scan Rate, 10m Scanning Radius Scanner Module for Obstacle Avoidance and Navigation of Robots

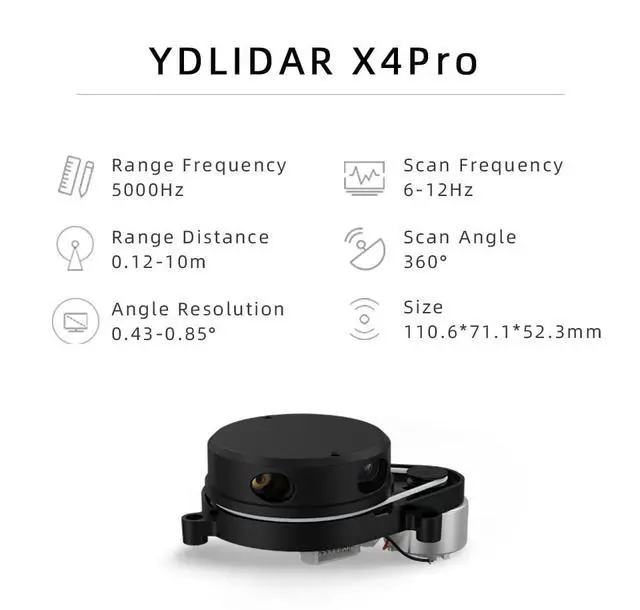

[High Accuracy] Based on the principle of triangulation; Ranging frequency up to 5kHz;
Range Distance: 0.12 -10m;

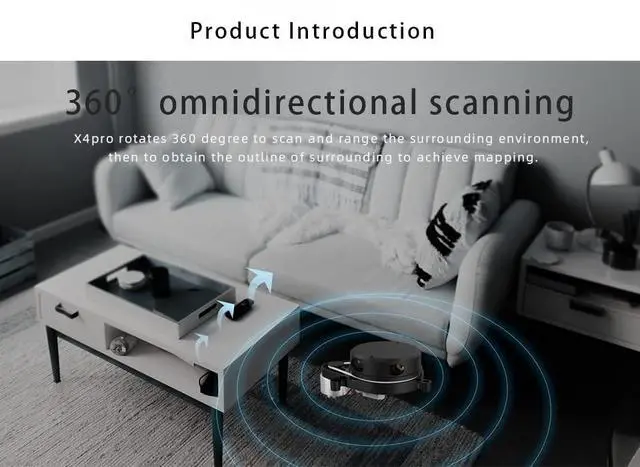

Angular resolution: 0.43 - 0.85 °; Scan rate from 5~12Hz; [360 Degree 2D Scanning] The ranging core of X4PRO rotates clockwise, performs 360 degree 2D omnidirectional Lidar range scan on the surrounding environment; [Working Environment] Strong Resistance to Ambient Light Interference; Low Power Consumption, Small Size, Stable performance and long life; [Motor Control]X4PRO is a motor driver with its own motor speed regulation function. M_CTR is the motor speed control signal, which can be used for voltage speed regulation or PWM wave debugging; [CLASS 1 SAFETY] The infrared point pulsed lidar used by X4PRO meets FDA Class I lidar safety standards; [Widely Application] It can be used for Robot navigation and obstacle avoidance; Robot ROS teaching; Area security; Environment scanning and 3D reconstruction; Home service and sweeping robot navigation and obstacle avoidance; [Wiki]
SDK/ROS driver: youyeetoo. com/blog/x4-pro-eaidpx4pro1-182; For after-sales problems, please contact us via our technical support. Click "WayPonDEV" Store or leave the message in our forum at "forum. youyeetoo. com/" and ask the question
