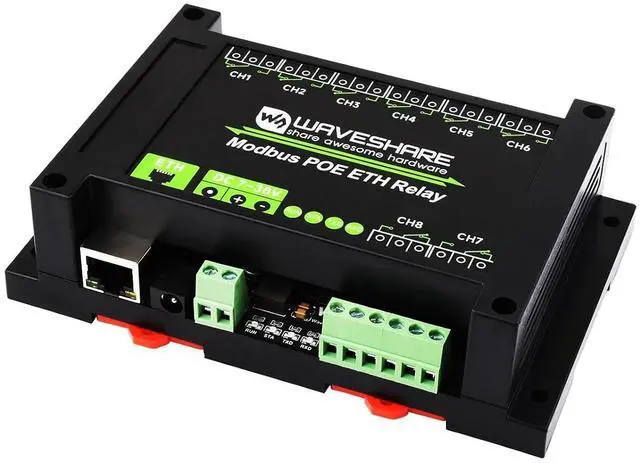

Modbus POE ETH Relay 8-CH Ethernet Relay Module Supports Sending Modbus RTU/Modbus TCP Protocol Commands via Ethernet Port to Control Relay and Various Devices
- Industrial 8-ch relay module supports Modbus RTU protocol/Modbus TCP protocol, supports TCP Server / TCP Client / UDP Mode / UDP Multicast / HTTP / MQTT, PoE port Communication; Modbus POE ETH Relay features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically. Supports DC 7~36V wide range power input and PoE power supply; Onboard optocoupler isolation, prevent the relay from being interfered by high-voltage circuit, onboard reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection; High-quality relay, contact rating: 10A 250VAC/30VDC, directly controlling 220VAC home appliances, or devices below 30VDC; 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status. Rail-Mounted ABS protective enclosure design, easy to install, safe to use
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

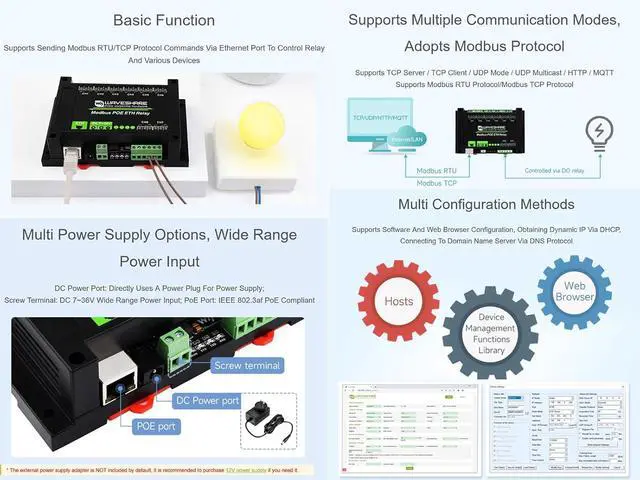

Industrial 8-ch relay module supports Modbus RTU protocol/Modbus TCP protocol, supports TCP Server / TCP Client / UDP Mode / UDP Multicast / HTTP / MQTT, PoE port Communication

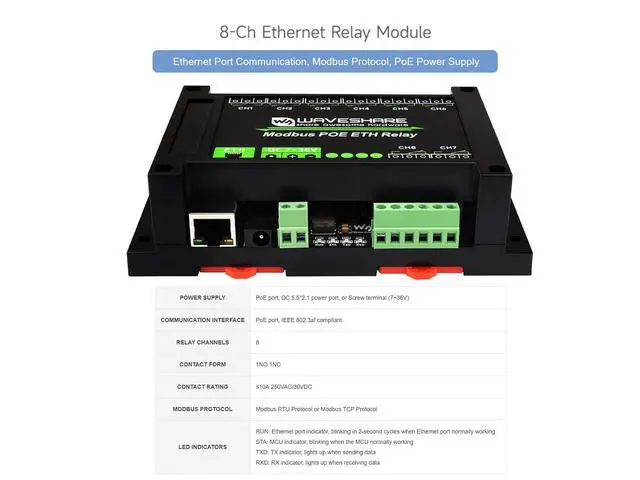

Modbus POE ETH Relay features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically. Supports DC 7~36V wide range power input and PoE power supply
Onboard optocoupler isolation, prevent the relay from being interfered by high-voltage circuit, onboard reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
High-quality relay,

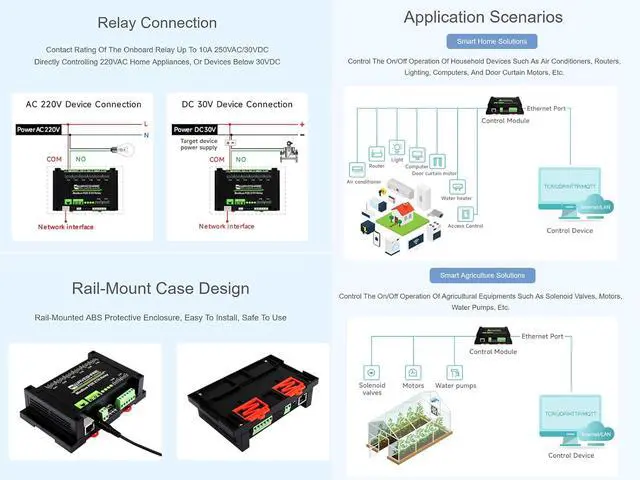

contact rating: 10A 250VAC/30VDC, directly controlling 220VAC home appliances, or devices below 30VDC

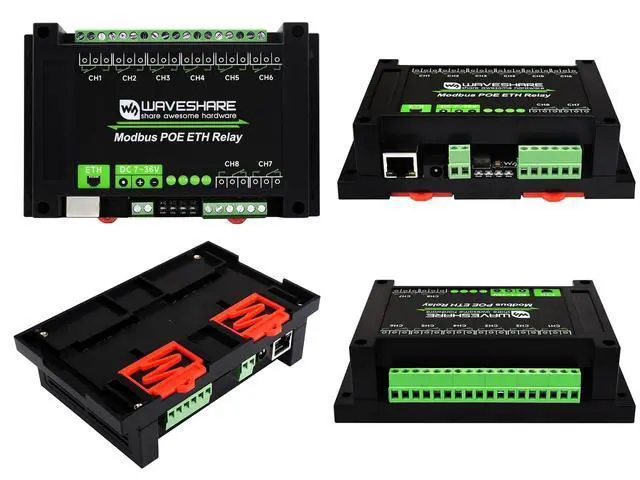

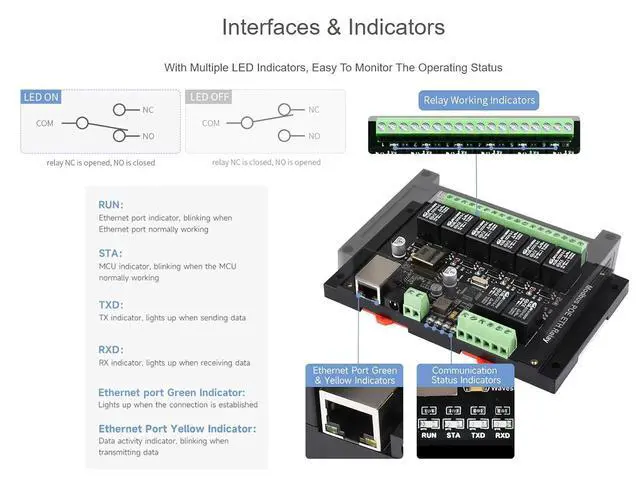

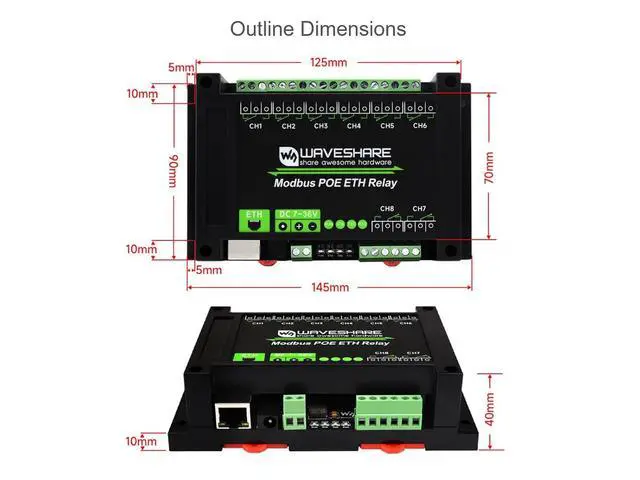

4 LEDs and Network indicators for indicating the MCU status and signal transceiving status. Rail-Mounted ABS protective enclosure design, easy to install, safe to use
Modbus POE ETH Relay features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically. Supports DC 7~36V wide range power input and PoE power supply
Onboard optocoupler isolation, prevent the relay from being interfered by high-voltage circuit, onboard reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
High-quality relay,
contact rating: 10A 250VAC/30VDC, directly controlling 220VAC home appliances, or devices below 30VDC
4 LEDs and Network indicators for indicating the MCU status and signal transceiving status. Rail-Mounted ABS protective enclosure design, easy to install, safe to use
