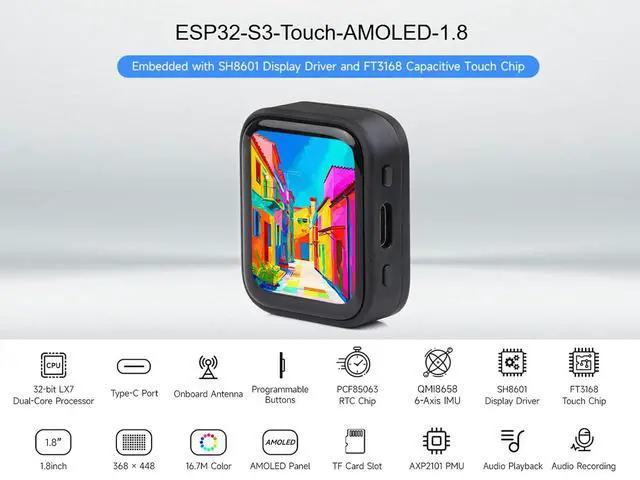

ESP32-S3 1.8inch AMOLED Touch Screen Development Board, 368×448 16.7M Color Display, 32-bit LX7 Dual-core Processor, Support 2.4GHz Wi-Fi and BLE-5, Onboard 6-Axis IMU, RTC, Audio Codec, etc.

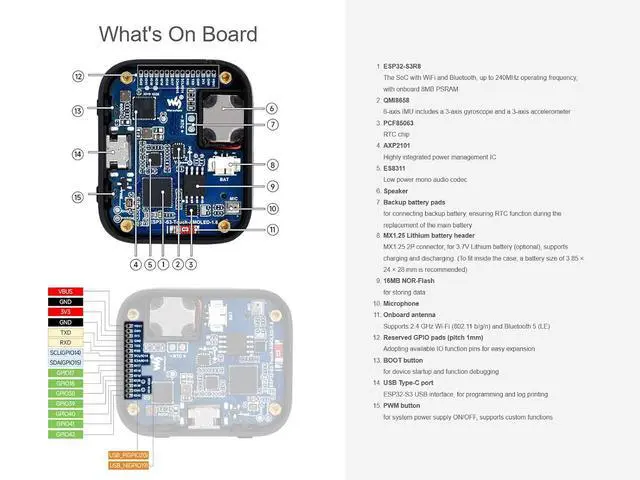

- ESP32-S3 1.8inch AMOLED touch display development board equipped with ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna; Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources; Built in 512KB of S-R-A-M and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback; Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads; Type-C connector, easier to use. Onboard PWR and BOOT programmable buttons for easy custom function development. Reserved pads of 7 × GPIO, 1 × I2C, 1 × UART, and 1 × USB interface, for connecting peripherals and debugging
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

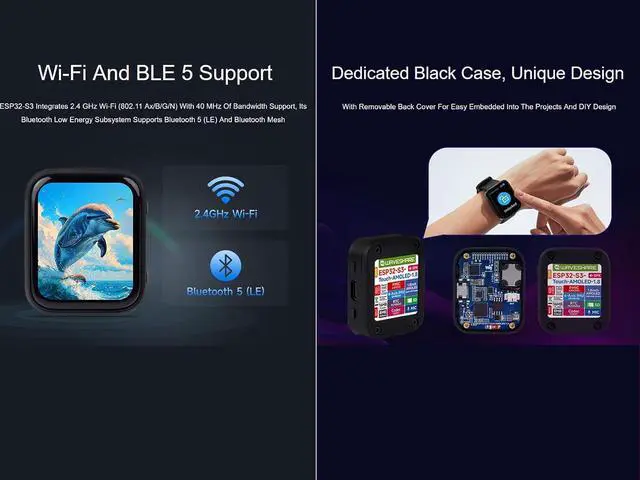

ESP32-S3 1.8 inch AMOLED touch display development board equipped with ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

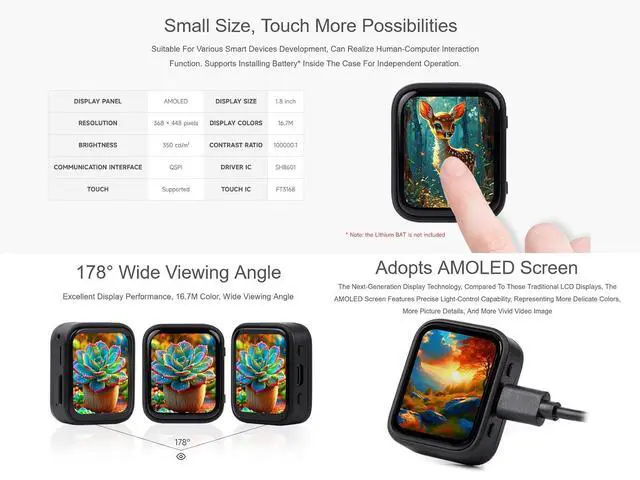

Onboard 1.8 inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Built in 512KB of S-R-A-M and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads
Type-C connector, easier to use. Onboard PWR and BOOT programmable buttons for easy custom function development. Reserved pads of 7 × GPIO, 1 × I2C, 1 × UART, and 1 × USB interface, for connecting peripherals and debugging
Onboard 1.8 inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Built in 512KB of S-R-A-M and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads
Type-C connector, easier to use. Onboard PWR and BOOT programmable buttons for easy custom function development. Reserved pads of 7 × GPIO, 1 × I2C, 1 × UART, and 1 × USB interface, for connecting peripherals and debugging
