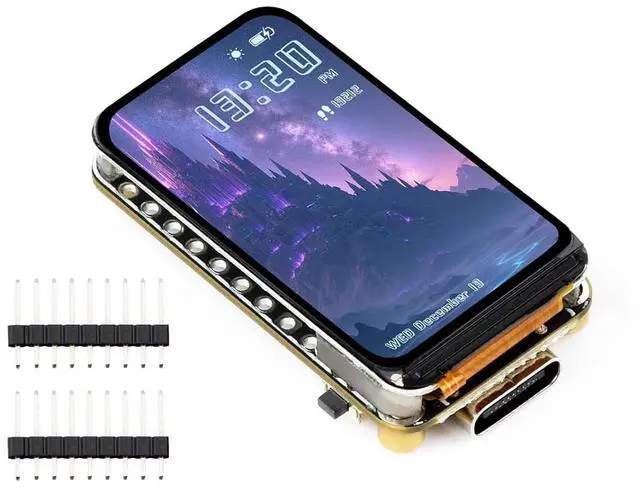

ESP32-S3 1.47inch LCD Display Development Board, 172×320 262K Color Display, Onboard TF Card Slot, 6-Axis IMU, etc. Built-in RGB LED, Support Wi-Fi/BLE 5, for Dev of ESP32-S3 HMI Applications
- ESP32-S3 1.47inch LCD Display Development Board equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna; Onboard 1.47inch LCD IPS display, 172×320 resolution, 262K color, can smoothly run GUI programs such as LVGL. Built-in RGB LED with clear acrylic sandwich panel, supports controlling via program for cool lighting effects; Built-in 512KB S-R-A-M and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard TF card slot for external TF card storage of pictures or files; Adapting multiple IO interfaces, supports full-speed USB standard. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc; Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header). Supports accurate control
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

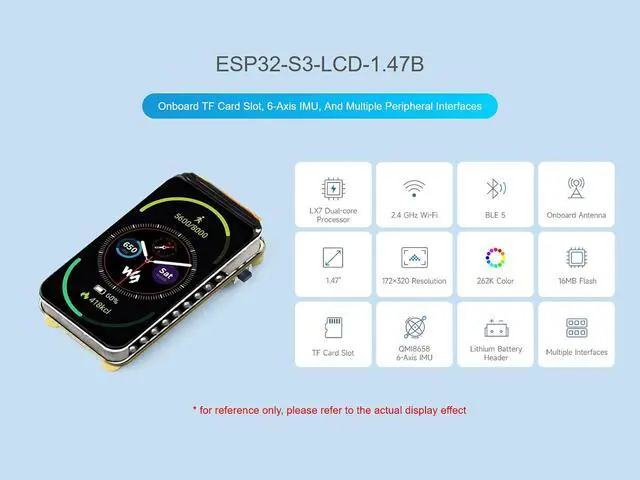

ESP32-S3 1.47 inch LCD Display Development Board equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Onboard 1.47 inch LCD IPS display, 172×320 resolution, 262K color, can smoothly run GUI programs such as LVGL. Built-in RGB LED with clear acrylic sandwich panel, supports controlling via program for cool lighting effects
Built-in 512KB S-R-A-M and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard TF card slot for external TF card storage of pictures or files
Adapting multiple IO interfaces, supports full-speed USB standard. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc
Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header). Supports accurate control
Onboard 1.47 inch LCD IPS display, 172×320 resolution, 262K color, can smoothly run GUI programs such as LVGL. Built-in RGB LED with clear acrylic sandwich panel, supports controlling via program for cool lighting effects
Built-in 512KB S-R-A-M and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard TF card slot for external TF card storage of pictures or files
Adapting multiple IO interfaces, supports full-speed USB standard. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc
Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header). Supports accurate control
