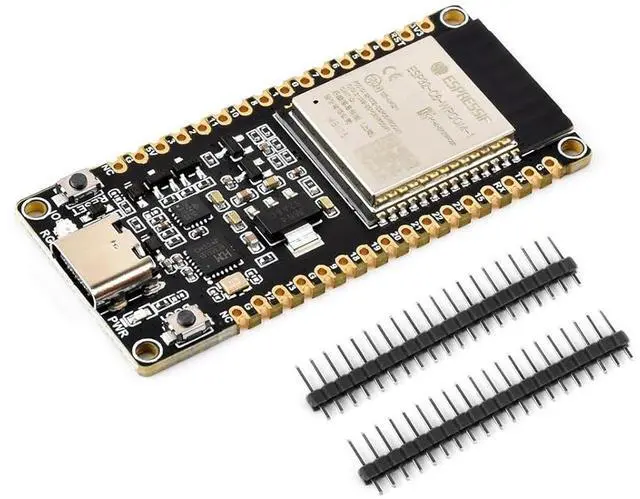

ESP32-C6 RISC-V Microcontroller Dev Board, Integrated WiFi 6, IEEE 802.15.4 (Zigbee 3.0&Thread) and BLE 5, Adopt ESP32-C6-WROOM-1-NX Series Module, Support USB/UART Development, 16M Flash
- ESP32-C6-DEV-KIT-N16 is an entry-level RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). Compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, etc.; ESP32-C6 microcontroller development board adopts ESP32-C6-WROOM-1-NX series module with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 16MB Flash; Type-C connector, easier to use. Onboard CH343 and CH334 chips, supports USB and UART development at the same time via a USB-C port; Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, SDIO and other interfaces; compatible with the pinout of the ESP32-C6-DevKitC-1 development board, offers strong compatibility and expandability. Castellated module allows soldering directly to carrier boards; Comes with online examples and tutorials for ESP-IDF development environment, if you need, please feel free to contact us
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

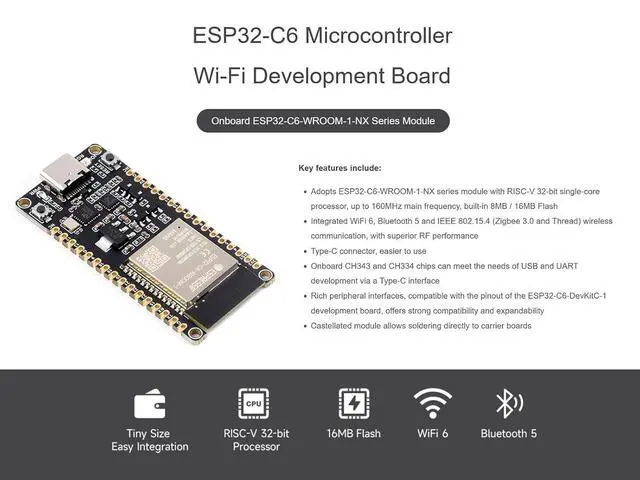

ESP32-C6-DEV-KIT-N16 is an entry-level RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15. 4 (Zigbee 3.0 and Thread). Compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, etc.
ESP32-C6 microcontroller development board adopts ESP32-C6-WROOM-1-NX series module with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 16MB Flash
Type-C connector, easier to use. Onboard CH343 and CH334 chips, supports USB and UART development at the same time via a USB-C port
Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, SDIO and other interfaces
compatible with the pinout of the ESP32-C6-DevKitC-1 development board, offers strong compatibility and expandability. Castellated module allows soldering directly to carrier boards
Comes with online examples and tutorials for ESP-IDF development environment, if you need, please feel free to contact us
ESP32-C6 microcontroller development board adopts ESP32-C6-WROOM-1-NX series module with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 16MB Flash
Type-C connector, easier to use. Onboard CH343 and CH334 chips, supports USB and UART development at the same time via a USB-C port
Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, SDIO and other interfaces
compatible with the pinout of the ESP32-C6-DevKitC-1 development board, offers strong compatibility and expandability. Castellated module allows soldering directly to carrier boards
Comes with online examples and tutorials for ESP-IDF development environment, if you need, please feel free to contact us
