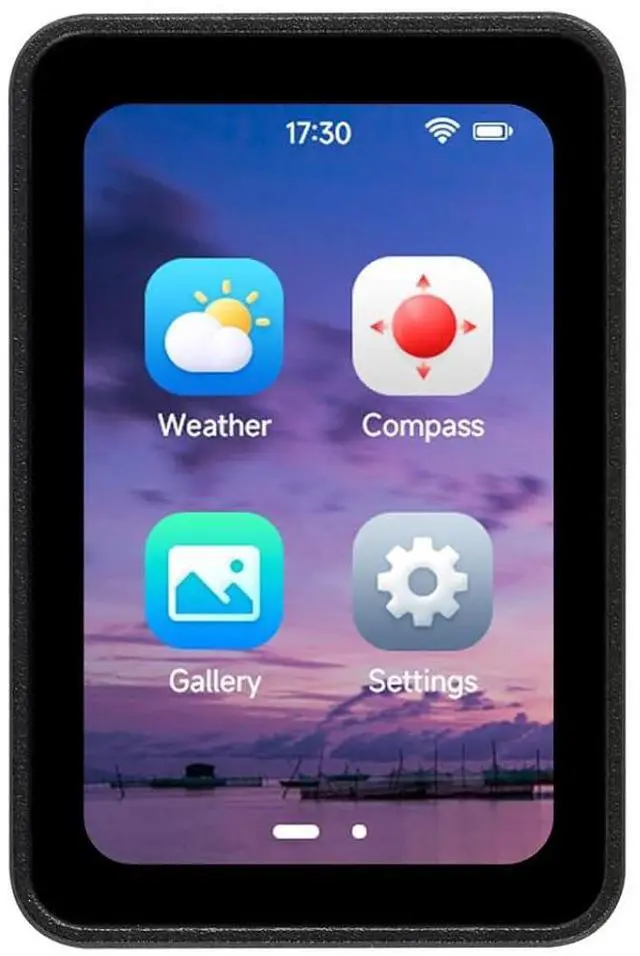

ESP32-C6 1.64inch AMOLED Touch Screen Dev Board, Onboard 280×456 16.7M Color QSPI Display, 6-Axis IMU, TF Card Slot, etc. Supports Wi-Fi 6, BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)

ESP32-C6-Touch-AMOLED- 1.64 development board equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz. Built-in 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM, with external 16MB Flash
Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance, onboard antenna, and supports switching to an external antenna by resoldering an onboard resistor
Onboard 1.64 inch AMOLED capacitive touch display, 280 × 456 resolution, 16.7M color. Built-in CO5300 display driver and FT6146 capacitive touch chip, using QSPI and I2C communication respectively
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more. Onboard TF card slot, enabling external storage for pictures or files. Onboard PWR button, along with programmable BOOT button for customizable functionality and flexible development
Onboard 3.7V MX 1.25 Lithium Batt recharge/discharge header. Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient. Adapting I2C, UART and USB pins for connecting peripherals and debugging, enabling flexible configuration of peripheral functions
