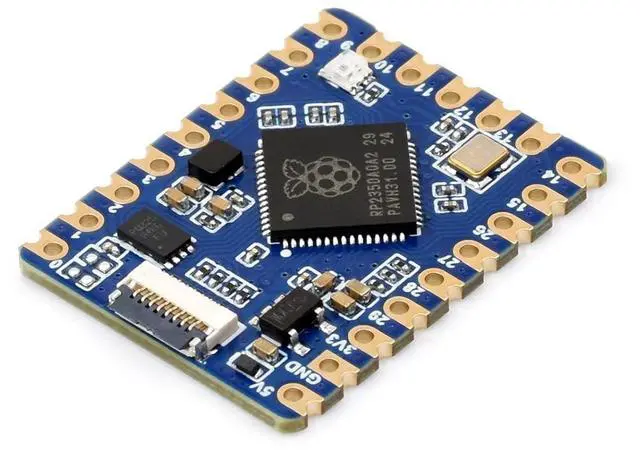

RP2350-Tiny Microcontroller Development Board Based on Raspberry Pi RP2350 Dual-core & Dual-Architecture Chip, onboard FPC Connector, Adapting USB Type-C Port via Adapter Board
- RP2350-Tiny development board based on Raspberry Pi RP2350 microcontroller, adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz, Support C/C++, MicroPython; 520KB of Static Random-Access Memory, and 4MB of on-board Flash memory. Onboard FPC 8--PIN connector, adapting USB Type-C port via adapter board. Castellated module allows soldering direct to carrier boards; 28 × multi-function GPIO pins (20× via edge pinout, others via solder points), 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels, 12 × Programmable I/O (PIO) state machines for custom peripheral support; USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip; Package Content: RP2350-Tiny development board x1 (Board Only)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
RP2350-Tiny development board based on Raspberry Pi RP2350 microcontroller, adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz, Support C/C++, MicroPython
520KB of Static Random-Access Memory, and 4MB of on-board Flash memory. Onboard FPC 8--PIN connector, adapting USB Type-C port via adapter board. Castellated module allows soldering direct to carrier boards
28 × multi-function GPIO pins (20× via edge pinout, others via solder points), 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels, 12 × Programmable I/O (PIO) state machines for custom peripheral support
USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip
Package Content: RP2350-Tiny development board x1 (Board Only)
520KB of Static Random-Access Memory, and 4MB of on-board Flash memory. Onboard FPC 8--PIN connector, adapting USB Type-C port via adapter board. Castellated module allows soldering direct to carrier boards
28 × multi-function GPIO pins (20× via edge pinout, others via solder points), 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels, 12 × Programmable I/O (PIO) state machines for custom peripheral support
USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip
Package Content: RP2350-Tiny development board x1 (Board Only)
