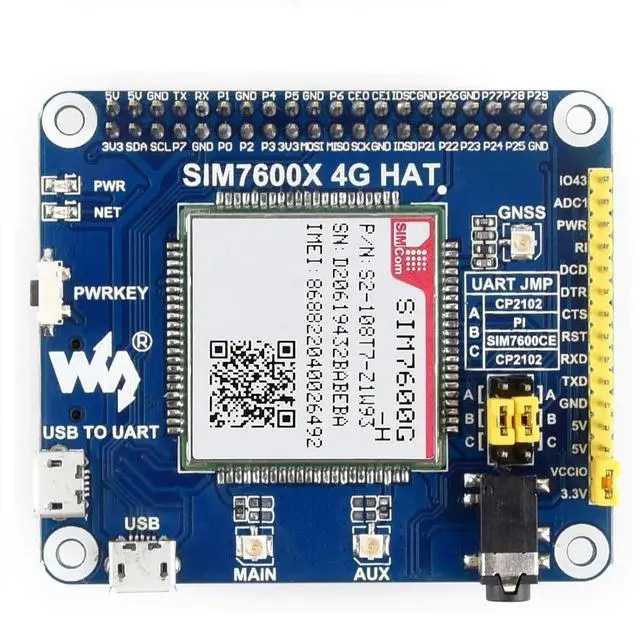

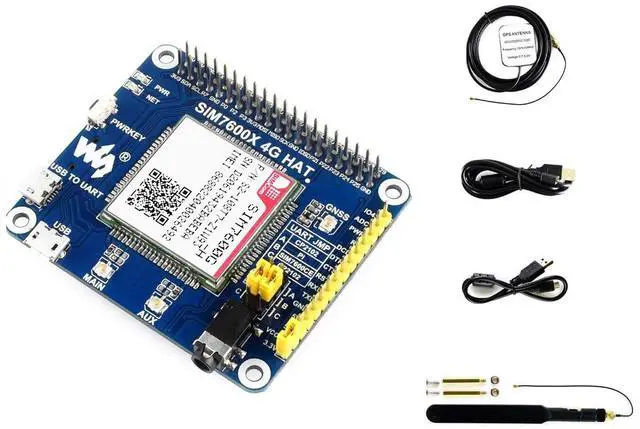

4G/3G/2G/GSM/GPRS/GNSS HAT Module for Raspberry Pi /4B/3B+3B/2B/Zero/Zero W/Zero WH/Jetson Nano Based on SIM7600G-H Support LTE CAT4 up to 150Mbps for Downlink Data Transfer,the Global Version

ESP32-S3 4.3 inch Capacitive Touch Display Development Board Type B, 800×480, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna and Plastic Case Features ESP32-S3-Touch-LCD- 4.3B is a microcontroller development board with 2.4GH z WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3 inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 4.3 inch capacitive touch display, 800×480 resolution, 65K color Supports capacitive touch control via I2C interface, 5-point touch with interrupt support Onboard voltage regulator, supports 7~36V wide range power supply Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss Onboard CAN, RS485, I2C interface and TF card slot, GH 1.25 2P battery header and digital isolated IO interfaces, etc.

Supports passive and active digital input, with bi-directional optocoupler isolation Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current Onboard LED indicators for indicating the power and battery recharging status Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios Package Content ESP32-S3-Touch-LCD- 4.3B -BOX x1 Note Technical Support is provided, please contact with us first if you have any problem.
