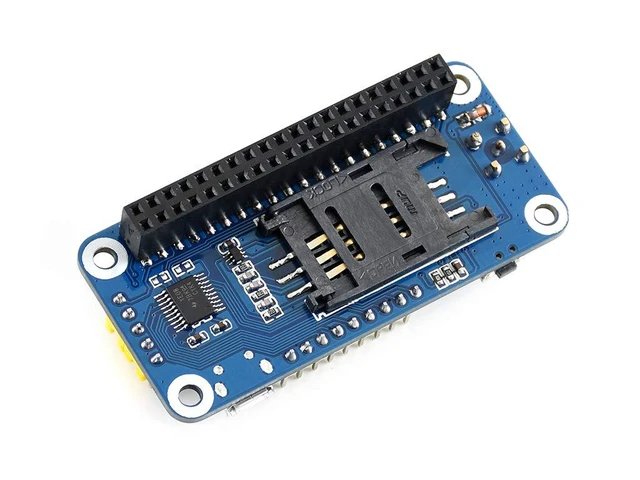

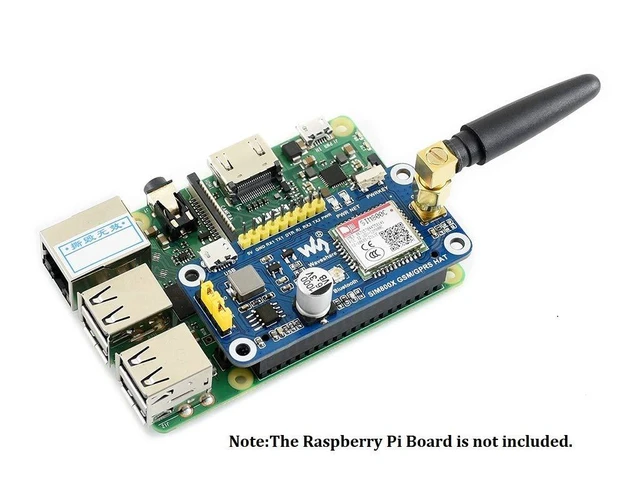

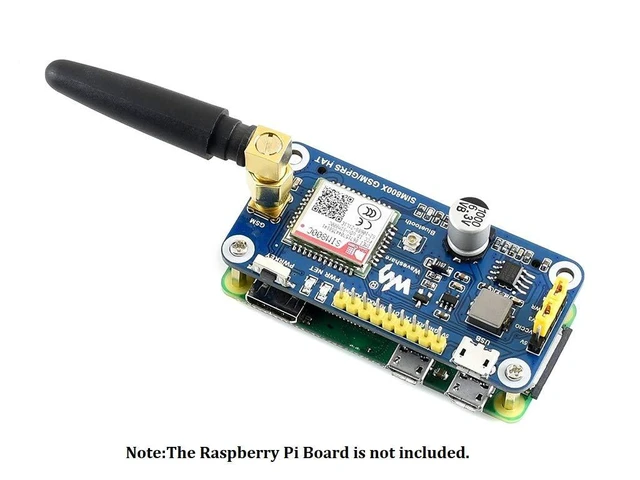

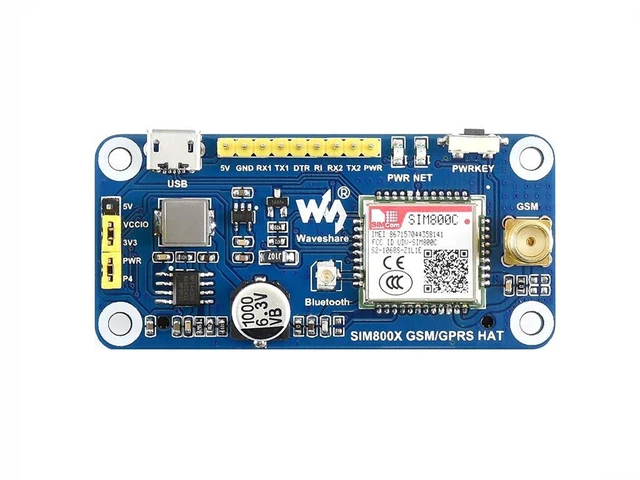

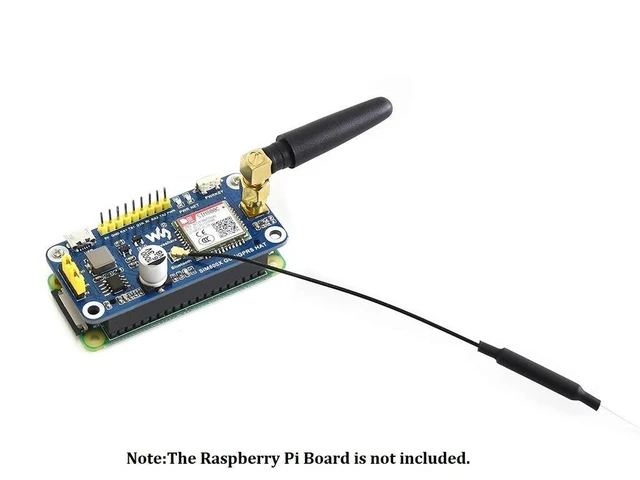

GSM/GPRS/Bluetooth 3.0 HAT for Raspberry Pi 2B/3B/3B+/Zero/Zero W Based on SIM800C Support SMS Data Transfer ect
- Raspberry Pi connectivity, compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W,Comes with development resources and manual (examples compatiible with Raspberry Pi/Arduino/STM32); Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc.Supports SIM application toolkit: GSM 11.14 Release 99; Bluetooth 3.0, supports data transferring through Bluetooth,UART interface, compatible with host control boards like Arduino/STM32,2x LEDs for indicating the module working status; Onboard voltage level translator, 3.3V by default, switch to 5V via jumper,SIM card slot for 1.8V/3V SIM card; Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands),Baudrate auto detection (1200bps ~115200bps)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Overview A handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth. It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on. GSM/GPRS Band GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz Quad-band auto search Compliant to GSM phase 2/2+ Emitting power Class 4 (2W @ GSM 850/EGSM 900 MHz) Class 1 (1W @ DCS 1800/PCS 1900 MHz) GPRS connectivity GPRS multi-slot class 12 (default) GPRS multi-slot class 1~12 (configurable) GPRS data feature
Downlink speed: max 85.6 kbps
Uplink speed: max 85.6 kbps
Coding schemes: CS-1\CS-2\CS-3\CS-4 Supports PAP (Password Authentication Protocol) for PPP connection Supports PBCCH Supports USSD SMS Supports: MT/MO/CB/Text/PDU mode
SMS storage: SIM card Bluetooth Integrates AT commands Compliant to Bluetooth specification 3.0 + EDR Supports SPP, OPP, HFP/HSP, etc.
Misc Power supply: 5V (USB port OR pinheader)
Logic level: 5V / 3.3V (default)
Operating temperature: -40°C ~ 85°C
Storage temperature: -45°C ~ 90°C

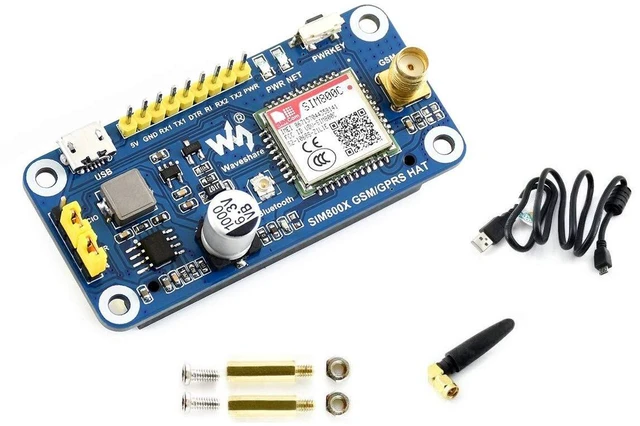

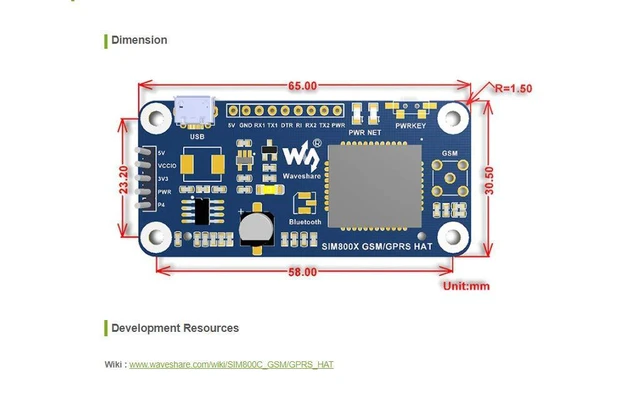

Dimensions: 30.2 mm x 65mm Package Content SIM800C GSM/GPRS HAT x1 GSM Antenna x1 Bluetooth Antenna x1 USB type A plug to micro plug cable x1 RPi screws pack (2pcs) x1
Downlink speed: max 85.6 kbps
Uplink speed: max 85.6 kbps
Coding schemes: CS-1\CS-2\CS-3\CS-4 Supports PAP (Password Authentication Protocol) for PPP connection Supports PBCCH Supports USSD SMS Supports: MT/MO/CB/Text/PDU mode
SMS storage: SIM card Bluetooth Integrates AT commands Compliant to Bluetooth specification 3.0 + EDR Supports SPP, OPP, HFP/HSP, etc.
Misc Power supply: 5V (USB port OR pinheader)
Logic level: 5V / 3.3V (default)
Operating temperature: -40°C ~ 85°C
Storage temperature: -45°C ~ 90°C
Dimensions: 30.2 mm x 65mm Package Content SIM800C GSM/GPRS HAT x1 GSM Antenna x1 Bluetooth Antenna x1 USB type A plug to micro plug cable x1 RPi screws pack (2pcs) x1
