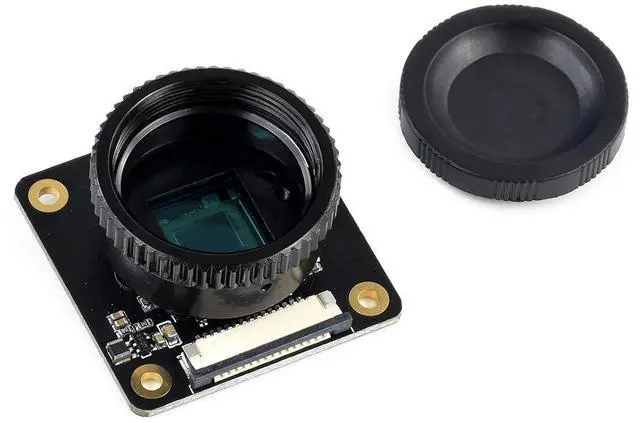

12.3M HQ Camera Module for Jetson Nano,Raspberry Pi Compute Module 3,3Lite,3+,3+ Lite,IMX477 Camera Supports C- and CS-Mount Lenses,High Sensitivity

Introduction It is a 1230M pixels MIPI-CSI Camera which based on IMX477 sensor, and requires a C- or CS-mount lens to work. The camera supports Raspberry Pi Compute Module series and Jetson Nano developer Kit, offers higher resolution ( 12.3MP ) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than IMX219 cameras. It is suitable for industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

Specifications

1. SENSOR IMX477R 12.3MP, 4056 (H) × 3040 (V) 7.9 mm CMOS diagonal size 1.55 µm (H) × 1.55 µm (V) pixel size 2.

OUTPUT: RAW12 / 10 / 8, COMP8 3.
BACK FOCUS: Adjustable 4.
LENS SUPPORT: C-mount / CS-mount (C-CS adapter included) 5.

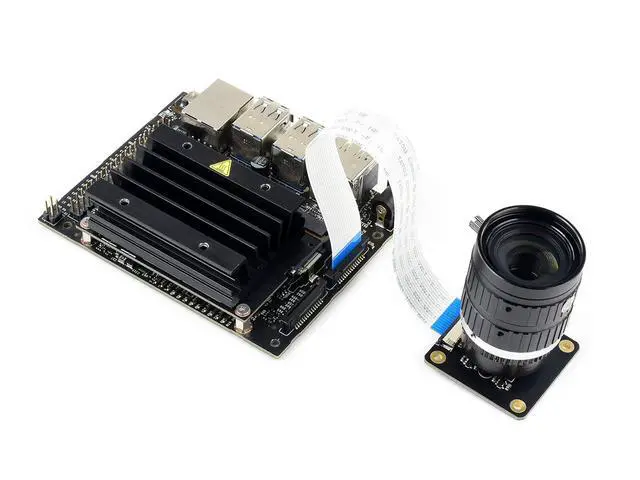

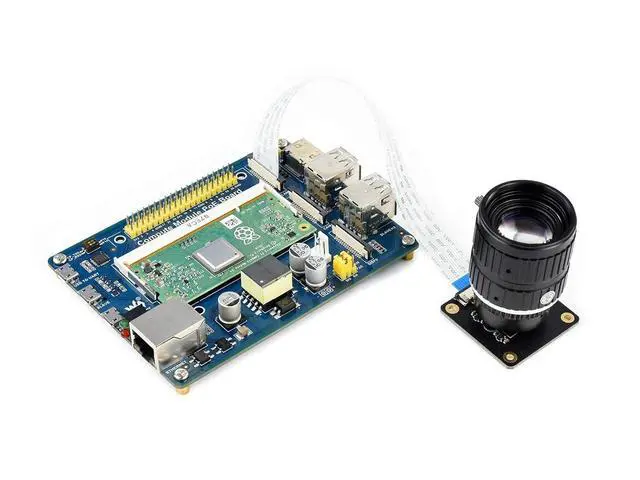

IR CUT FILTER: Integrated Package Content IMX477 12.3MP Camera main unit C-CS adapter Dust cap FFC ribbon Note IMX477 12.3MP Camera can only support Raspberry Pi Compute Module series, it cannot be used with Raspberry Pi boards like Raspberry Pi Model 4B. IMX477 12.3MP Camera can be used with Jetson Nano Developer Kit, if you want to use it with Jetson Nano, you need to install driver. Please backup your OS before you install driver, because the driver is not suitable for IMX219. Development Resources are provided please contact with us via buyer message to get.
