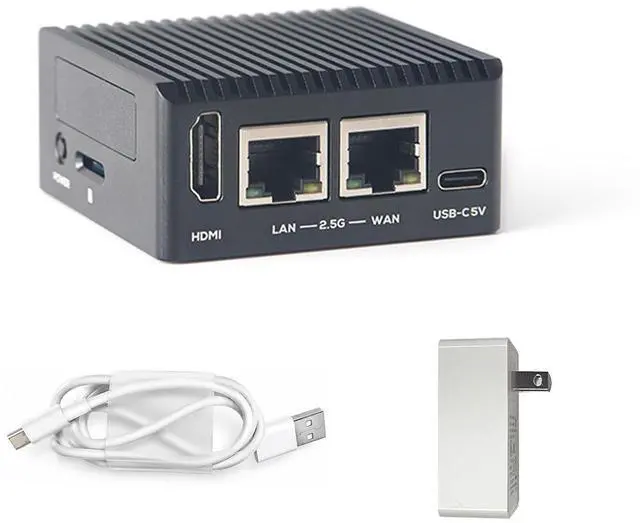

NanoPi R76S3+0,with Power Supply
- NanoPi R76S Router Dev Board Powered by Rockchip RK3576 octa-core SoC (4× Cortex-A72 @ 2.2GHz + 4× Cortex-A53 @ 1.8GHz) with 6TOPS NPU, designed for soft routing, edge AI, and IoT gateway applications.; Dual 2.5GbE & High-Speed I/O Features two PCIe 2.5Gbps Ethernet ports (RTL8125BG), one USB 3.2 Gen1 Type-A, HDMI 2.0 up to 4K@60Hz, M.2 E-key SDIO slot for WiFi/BT modules, and microSD UHS-I for storage expansion.; 6TOPS NPU for AI Inference Integrated 6 TOPS NPU supports INT4/INT8/INT16/FP16/BF16/TF32 mixed precision, enabling local deployment of AI models like LLaMA, ChatGLM3, and offline voice assistants on the edge.; Multi-OS Pre-Loaded & Docker Ready Supports FriendlyWrt, OpenMediaVault, Proxmox VE, Ubuntu 24.04, Debian 12/13, Android 14, and more. Pre-loaded systems for out-of-the-box use with Docker support for containerized deployments.; Complete Development Kit Includes NanoPi R76S board with 8-layer PCB (58×58mm), optional M.2 SDIO WiFi module, USB-C power adapter, and CNC aluminum case (Full Kit variants) for immediate development.; Ideal for Soft Router & NAS Perfect for soft routing, light NAS, edge AI development, 4K media playback, smart home gateway, and industrial networking. Compact 58×58mm form factor with 0-70°C operating temperature.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Overview The NanoPi R76S is a compact router development board powered by RK3576 octa-core SoC with 6TOPS NPU, dual 2.5G bE, and rich I/O for soft routing, edge AI, and IoT.
Key
GPU: Mali-G52 MC3 |
NPU: 6 TOPS @
INT8 VPU: 8K@30fps decode, 4K@60fps encode
RAM: 3GB/4GB LPDDR4X or 16GB
LPDDR5 Storage: 32GB/64GB eMMC + microSD
UHS-I Ethernet: 2× 2.5G bE (PCIe
RTL8125BG) USB: 3.2 Gen1 Type-A |
HDMI: 2.0 4K@60Hz M. 2 E-key SDIO for WiFi/BT module
GPIO: 8-pin FPC |
Debug: 3-pin
UART RTC: HYM8563TS |
Power: USB-C 5V
PCB: 8-layer 58×58× 1.6 mm | 37.5 g (board)
OS: FriendlyWrt, Ubuntu, Debian, Android 14 Applications Soft routing, light NAS, edge AI, 4K media, smart home gateway, industrial IoT. Docker and RKLLM model deployment supported.
Key
Specifications
SoC: RK3576 (4× Cortex-A72 @ 2.2GH z + 4× Cortex-A53 @ 1.8GH z)GPU: Mali-G52 MC3 |
NPU: 6 TOPS @
INT8 VPU: 8K@30fps decode, 4K@60fps encode
RAM: 3GB/4GB LPDDR4X or 16GB
LPDDR5 Storage: 32GB/64GB eMMC + microSD
UHS-I Ethernet: 2× 2.5G bE (PCIe
RTL8125BG) USB: 3.2 Gen1 Type-A |
HDMI: 2.0 4K@60Hz M. 2 E-key SDIO for WiFi/BT module
GPIO: 8-pin FPC |
Debug: 3-pin
UART RTC: HYM8563TS |
Power: USB-C 5V
PCB: 8-layer 58×58× 1.6 mm | 37.5 g (board)
OS: FriendlyWrt, Ubuntu, Debian, Android 14 Applications Soft routing, light NAS, edge AI, 4K media, smart home gateway, industrial IoT. Docker and RKLLM model deployment supported.
