MiniF Lidar Sensor Scanner 0-4m ToF Ranging Module for UAV & Robot Obstacle Avoidance, Compatible with Raspberry Pi & Arduino, Splashproof Radar
- High-Precision MeasurementAchieves accurate distance measurements with a range of 20mm to 4000mm and an accuracy of ±3%, making it ideal for precise applications like robotics and UAV obstacle avoidance.; Robust PerformanceFeatures a compact design (21.0mm × 16.5mm × 13.5mm) and lightweight construction (approx. 3.6g), with a durable PC housing and PMMA optical lens, ensuring reliability in various environments.; Advanced Optical TechnologyUtilizes D-TOF technology with a 3±0.5 ° field of view and a frame rate adjustable from 30Hz to 90Hz, providing stable performance even in strong ambient light up to 190,000 Lux.; Easy IntegrationCompatible with popular platforms like Raspberry Pi and Arduino, and supports UART communication with a baud rate of 115200, facilitating seamless integration into a variety of projects.; Reliable and Safe OperationOperates within a temperature range of -20°C to +70°C and humidity levels of 35% to 80% RH, ensuring consistent performance. It also meets Class 1 laser safety standards (IEC 60825-1: 2014) for safe use.; Contact Us If you have any questions, please click on to ask them or send an e-mail to am2#.com (#>>@).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

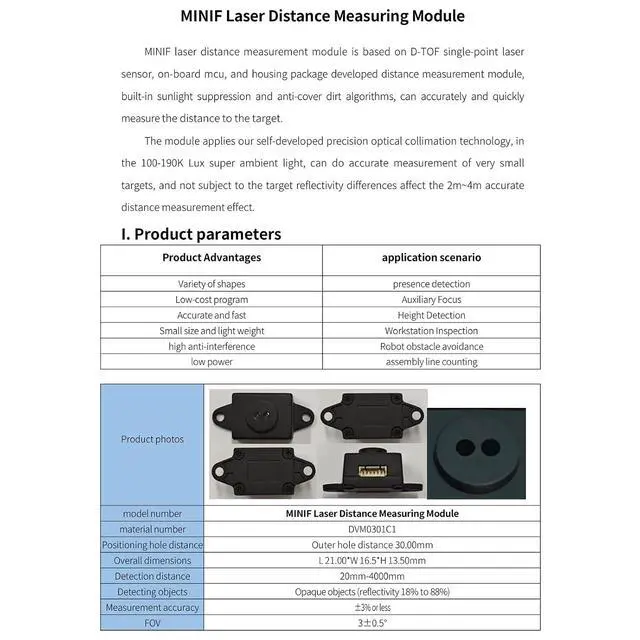

Product Overview The MINIF Laser Ranging Module is a compact and lightweight ToF (Time-of-Flight) ranging module based on a single-point laser sensor. It features built-in algorithms for sunlight suppression and anti-dirt on the cover, enabling precise and rapid distance measurement of target objects.
Key

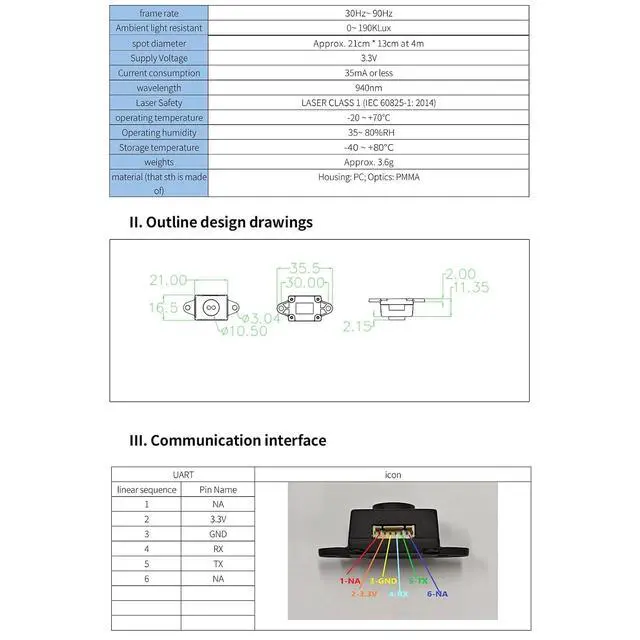

Dimensions: 21.0 mm × 16.5 mm × 13.5 mm (L×W×H)
Mounting Hole Spacing: 30.00 mm (outer edge)
Detection Range: 20mm - 4000mm
Target Object: Opaque surfaces (reflectivity 18% to 88%)
Accuracy: ±3% (full range) Field of
View (FOV): 3 ± 0.5 °
Frame Rate: 30Hz to 90Hz (adjustable) Spot
Size at 4m: ~21cm × 13cm
Operating Voltage: 3.3V DC
Current Consumption: 35mA
Wavelength: 940nm (infrared)
Laser Safety Class: Class 1 (IEC 60825- 1: 2014 )
Operating Temperature: -20°C to +70°C
Operating Humidity: 35% to 80% RH
Storage Temperature: -40°C to +80°C
Weight: Approx.
3.6 g Material:
Housing: PC;
Optical Lens: PMMA
Support: Support#.
com (# >>>@) Forum: Forum.. com recommend
Communication and individual advice: am2#. com (# >>>@)
Key
Specifications
Model Number: DVM0301C1Dimensions: 21.0 mm × 16.5 mm × 13.5 mm (L×W×H)
Mounting Hole Spacing: 30.00 mm (outer edge)
Detection Range: 20mm - 4000mm
Target Object: Opaque surfaces (reflectivity 18% to 88%)
Accuracy: ±3% (full range) Field of
View (FOV): 3 ± 0.5 °
Frame Rate: 30Hz to 90Hz (adjustable) Spot
Size at 4m: ~21cm × 13cm
Operating Voltage: 3.3V DC
Current Consumption: 35mA
Wavelength: 940nm (infrared)
Laser Safety Class: Class 1 (IEC 60825- 1: 2014 )
Operating Temperature: -20°C to +70°C
Operating Humidity: 35% to 80% RH
Storage Temperature: -40°C to +80°C
Weight: Approx.
3.6 g Material:
Housing: PC;
Optical Lens: PMMA
Support: Support#.
com (# >>>@) Forum: Forum.. com recommend
Communication and individual advice: am2#. com (# >>>@)
