Tinker Edge R SBC Rockchip RK3399Pro Mini Motherboard with 4G RAM 2GB Rockchip NPU 16GB eMMC 3TOPS (Pro Version 6GB+16GB)
Limited time offer, ends 08/30 By SlotNeat
- [Design for AI applications]Tinker Edge R base on the RK3399Pro combines a hexa-core RK3399 with a 3.0-TOPS performing Neural Network Processing Unit (NPU) that supports Tensorflow, TensorflowLite, Caffe, and other deep leamning models.; [CPU and GPU] Dual-core ARM Cortex-A72 and integrated Rockchip NPU support for better computing performance.; [Memory and storage] Tinker Edge R Pro version has 4GB RAM for System & 2GB for NPU and Micro SD(TF) card slot for storage.; [Multiple connectivity options]Tinker Edge R support Dual MIPI CSI for stereoscopic applications, compatible with DSI touch panel, HDMI port for display and USB 3. 2 Gen 1 port for date transfer.; [Advanced power design] Tinker Edge R Supports 12V~19V Wide-range DC-in and power-protection design.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

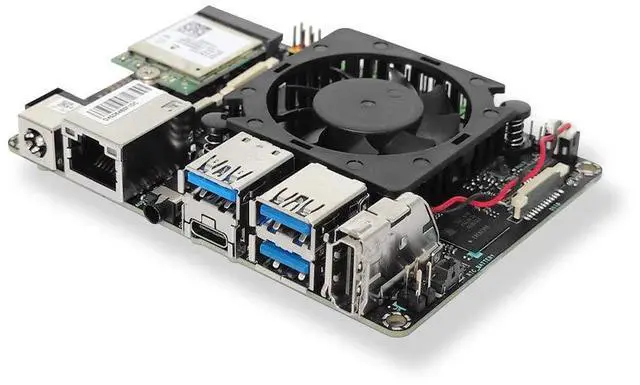

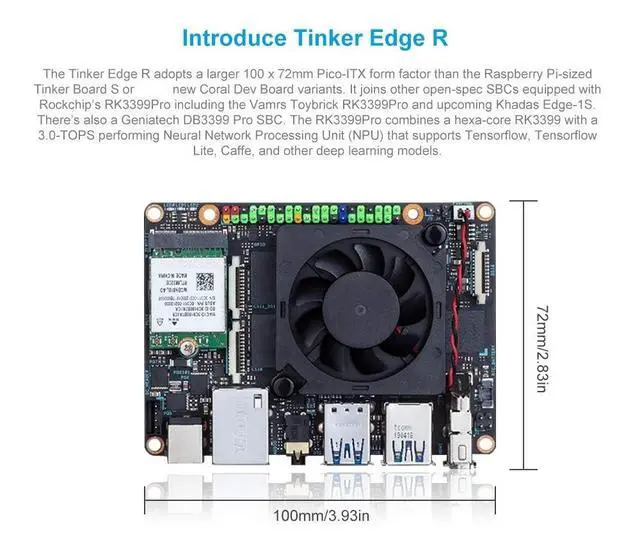

[Tinker Edge R Pro version ] The Tinker Edge R adopts a larger 100 x 72mm Pico-ITX form factor than the Pi-sized Tinker Board S or new Coral Dev Board variants. It joins other open-spec SBCs equipped with Rockchips RK3399Pro including the Vamrs Toybrick RK3399Pro and upcoming Khadas Edge-1S. Theres also a Geniatech DB3399 Pro SBC. The RK3399Pro combines a hexa-core RK3399 with a 3.0 -TOPS performing Neural Network Processing Unit (NPU) that supports Tensorflow, Tensorflow Lite, Caffe, and other deep learning models. The Tinker Edge R ships with 4GB LPDDR4 plus 2GB LPDDR3 dedicated to the NPU.

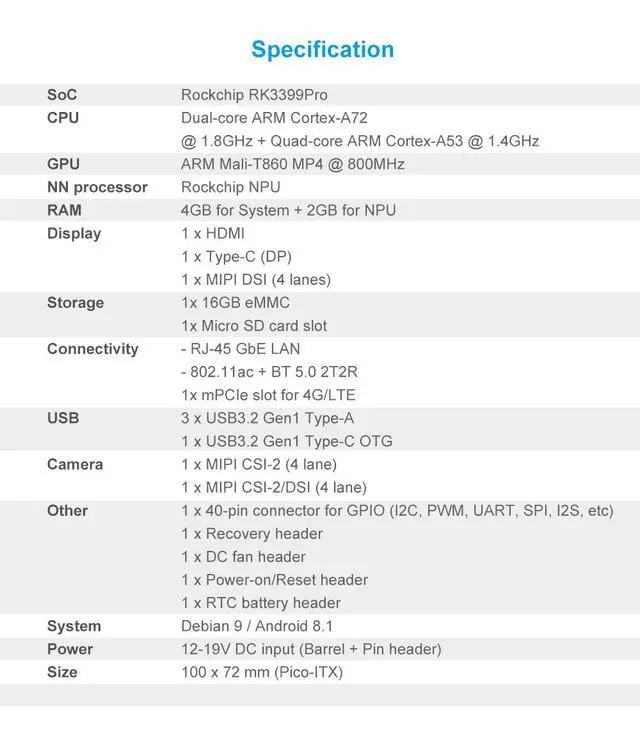

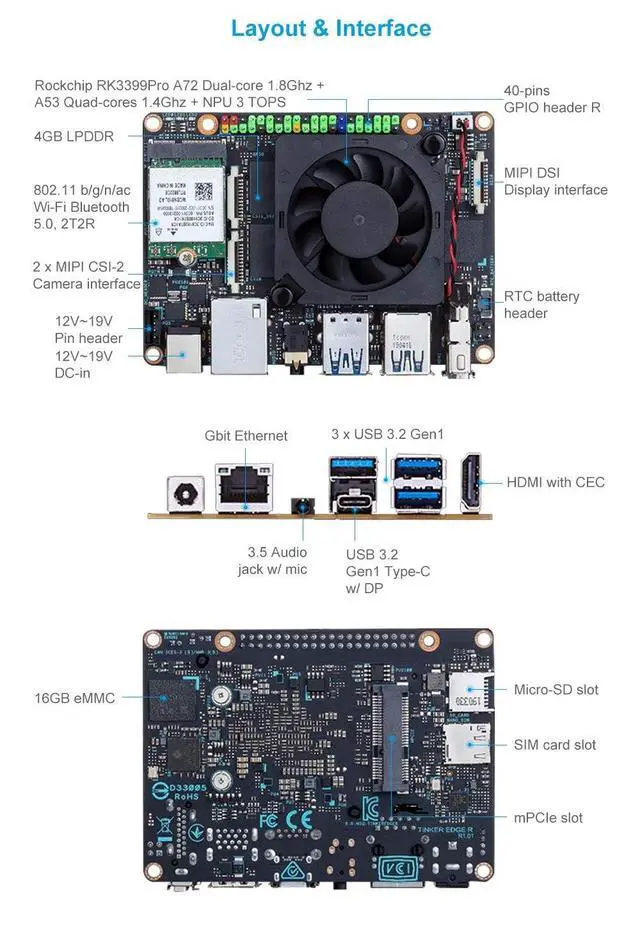

The board is said to be further equipped with 16GB eMMC, a microSD slot, a GbE port, and 802.11 ac with Bluetooth 4.2. You get 4x USB 3.1 Gen1 ports, one of which is a Type-C with DisplayPort support. Other media features include an HDMI port, 2x MIPI-DSI, 2x MIPI-CSI2, and an audio jack. Theres a 40-pin GPIO header with the same pinout as the Tinker Board, as well as a mini-PCIe slot with a nano-SIM slot that supports 4G/LTE extended, says CNXSoft. Other features are said to include a 12-19V input and an RTC battery header.
An open source Linux kernel is on tap along with support for major AI frameworks.
[Technical Support] Wiki:
ExpertSupport: support@.
com Skype live: fuxiang_12
The board is said to be further equipped with 16GB eMMC, a microSD slot, a GbE port, and 802.11 ac with Bluetooth 4.2. You get 4x USB 3.1 Gen1 ports, one of which is a Type-C with DisplayPort support. Other media features include an HDMI port, 2x MIPI-DSI, 2x MIPI-CSI2, and an audio jack. Theres a 40-pin GPIO header with the same pinout as the Tinker Board, as well as a mini-PCIe slot with a nano-SIM slot that supports 4G/LTE extended, says CNXSoft. Other features are said to include a 12-19V input and an RTC battery header.
An open source Linux kernel is on tap along with support for major AI frameworks.
[Technical Support] Wiki:
ExpertSupport: support@.
com Skype live: fuxiang_12
