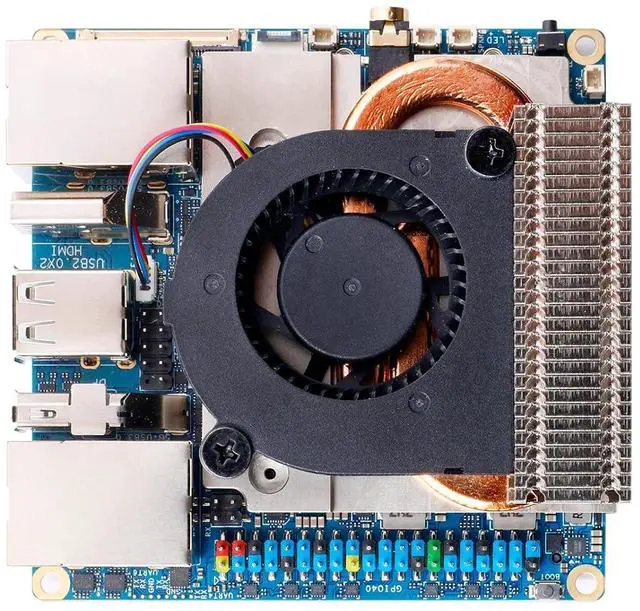

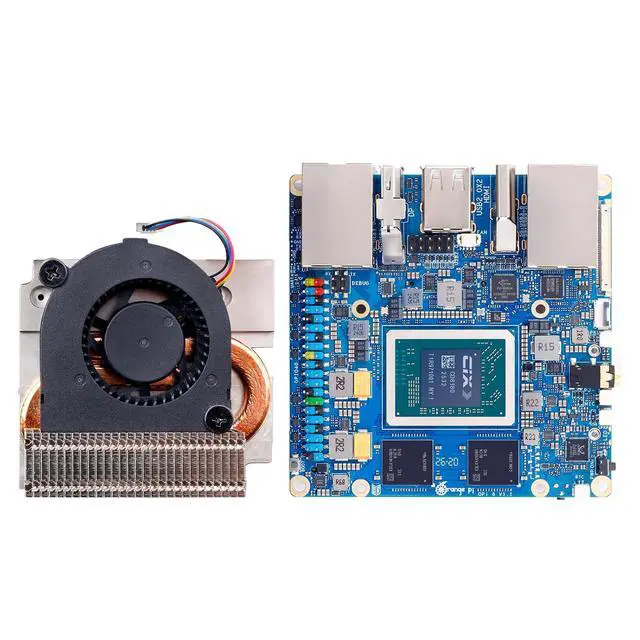

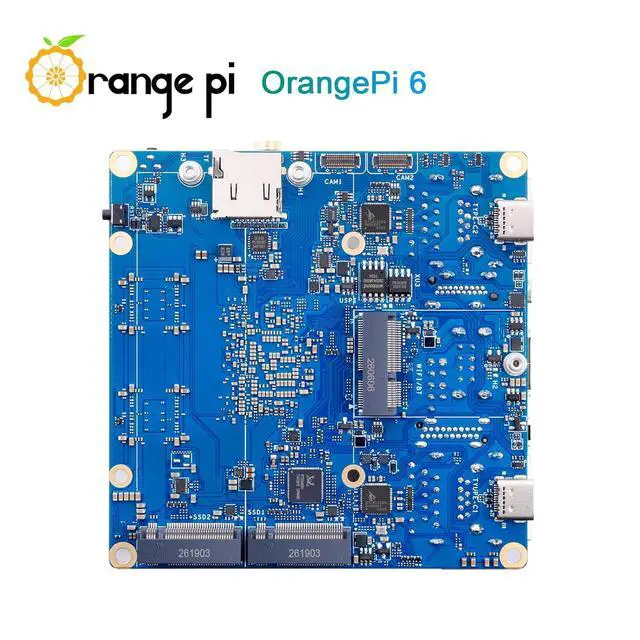

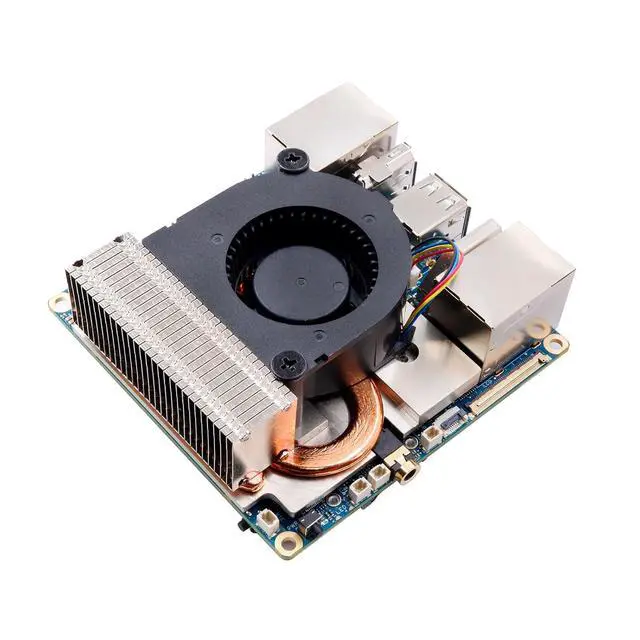

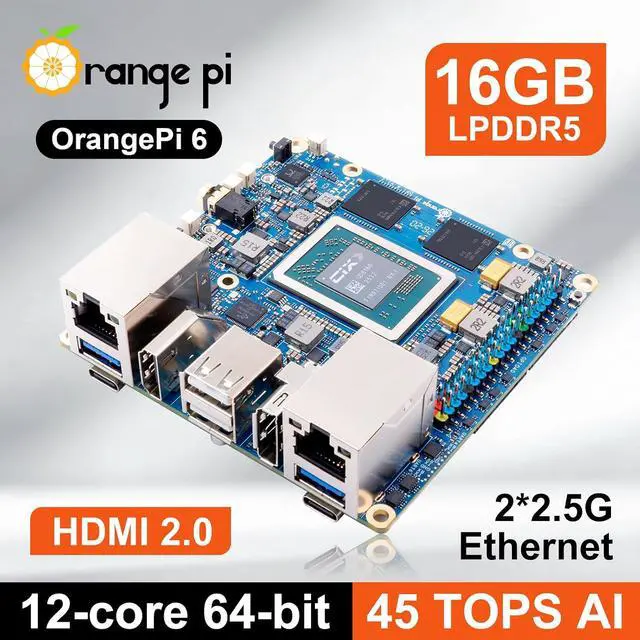

Orange Pi 6 16GB RAM LPDDR5 12 Core 64 Bit Single Board Computer, CIX SoC 45TOPS AI NPU Mini PC Run Linux, Android, Windows, ROS2 OS with Heat Dissipation Assembly with Cooling Fan

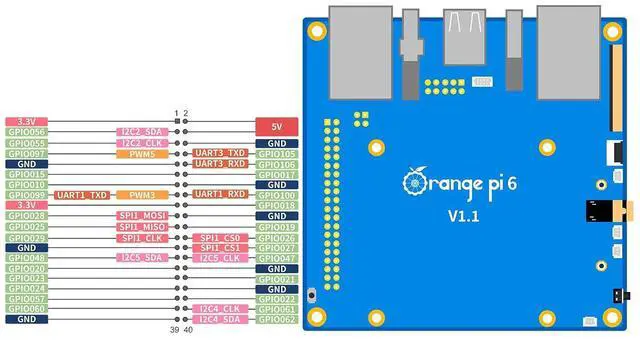

- High Performance CIX SoC - OrangePi 6 16GB adopts CIX CD8180 SoC, built-in 12-core 64-bit processor + NPU processor, integrated graphics processor, equipped with 16GB/32GB /64GB LPDDR5, and provides two M.2 KEY-M interfaces 2280 for NVMe SSD,as well as SPI FLASH and TF slots to meet the needs of fast read/write and high-capacity storage; It is equipped with 45 Tops computing power to support a variety of end-side large-model applications and a rich end-side AI scene.; 45TOPS AI Computing Power - AI acceleration performance reaches 45TOPS, significantly enhancing AI development and deployment efficiency. It supports multiple mainstream AI models and meets the application needs of generative AI in diverse edge scenarios, such as chatbots and AI-assisted programming. At the same time, relying on its graphics acceleration algorithm and graphics engine, it can support desktop 3D graphics applications such as games and industrial design software.; Rich Ports - OrangePi 6 16G offers extensive connectivity, including USB, Type-C 3.0, HDMI, MIPI CSI, dual 2.5Gb Ethernet, a 3.5mm audio jack, 40-pin GPIO header, fan connector, and RTC interface, enabling seamless integration with peripherals and sensors.;
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Hardware

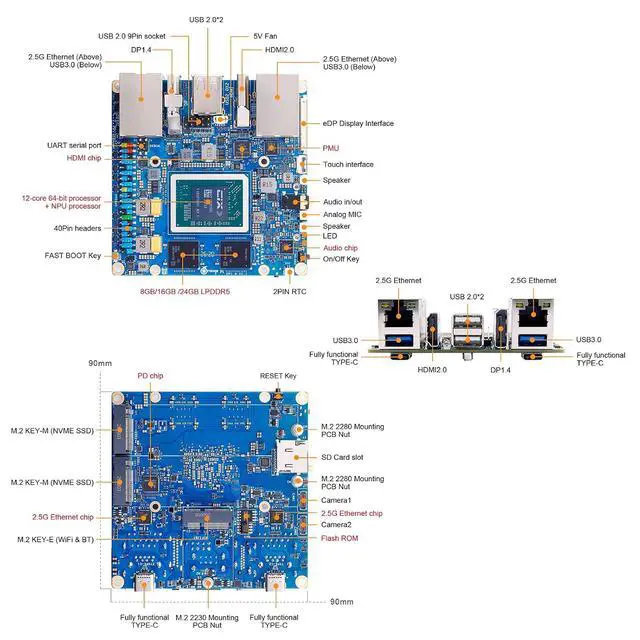

Storage Expansion SPI FLASH: 64Mbit NVMe SSD (PCIe 4.0 x4, M. 2 KEY-M 2280) x2 TF card slot Wi-Fi / BluetoothM. 2 KEY-E socket (module not included) EthernetDual 2.5G bE Ethernet USB USB 3.0 x2, USB 2.0 x2 Full-function Type-C 3.0 x2 Reserved USB 2.0 9-pin header Display Interfaces 1 x DP 1.4 (4K@120Hz) 2 x Type-C DP 1 x HDMI 2.0 (4K@60Hz, bridge chip PS185) 1 x eDP (4K@60Hz) Camera2 x 4-lane MIPI CSI camera interfaces Audio 3.5 mm headphone jack (audio in/out), dual speaker headers, 1 x analog microphone PowerDual Type-C PD 20V, compatible with 65W/100W Expansion Interface40Pin (GPIO, UART, I2C, SPI, PWM) LEDsPower LED, system status LED ButtonsPower button, reset button, BOOT button Fan Header1 x PWM fan header Reserved InterfacesRTC header, UART debug serial port Operating SystemsOpenHarmony, Debian, Ubuntu, Android, Windows, ROS2 Dimensions90 x 90 mm Weight106g
Specifications
ItemCIX CD8180, 12-core 64-bit processor NPU 28.8 TOPS GPUIntegrated graphics processor, supports hardware ray tracing Total AI Compute45 TOPS (CPU+NPU+GPU) RAMLPDDR5, 128bit, 8GB/16GB/24GBStorage Expansion SPI FLASH: 64Mbit NVMe SSD (PCIe 4.0 x4, M. 2 KEY-M 2280) x2 TF card slot Wi-Fi / BluetoothM. 2 KEY-E socket (module not included) EthernetDual 2.5G bE Ethernet USB USB 3.0 x2, USB 2.0 x2 Full-function Type-C 3.0 x2 Reserved USB 2.0 9-pin header Display Interfaces 1 x DP 1.4 (4K@120Hz) 2 x Type-C DP 1 x HDMI 2.0 (4K@60Hz, bridge chip PS185) 1 x eDP (4K@60Hz) Camera2 x 4-lane MIPI CSI camera interfaces Audio 3.5 mm headphone jack (audio in/out), dual speaker headers, 1 x analog microphone PowerDual Type-C PD 20V, compatible with 65W/100W Expansion Interface40Pin (GPIO, UART, I2C, SPI, PWM) LEDsPower LED, system status LED ButtonsPower button, reset button, BOOT button Fan Header1 x PWM fan header Reserved InterfacesRTC header, UART debug serial port Operating SystemsOpenHarmony, Debian, Ubuntu, Android, Windows, ROS2 Dimensions90 x 90 mm Weight106g
