Orange Pi Zero 3 1G Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth
- The Orange Pi Zero 3 1GB uses a full-memory H618 64-bit high-performance quad-core Cortex-A53 processor, Arm Mali-G31 MP2 GPU, and supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1, etc.; Orange Pi Zero 3 1G Microcontroller has four memory specifications of 1GB /1.5GB/2GB/4GB to choose from, support a variety of video formats codec, Micro-HDMI output support 4K display, can be widely used in TV boxes, smart projection equipment and so on. Suitable for Building Mini PC/Smart Robot/Game Console/Workstation/Media Center/VR/Etc.; The Orange Pi Zero 3 Mini PC Computer can also extend the functions of headphones, TV-Out, USB2.0, and infrared reception through the 13Pin expansion port and adapter board.; The Orange Pi Zero 3 26Pin expansion function port on this board further enrichis the functional interface of the motherboard and enhances the potential for development.; Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source.; Notice before order: By default, we won't responsible for customs clearance fee charged by your local. If you have any questions, Please feel free to contact us.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Parameter CPU: Full memory H618 high-performance quad-core Cortex-A53 processor 1.5GH z
GPU: Mali G31 MP2 Support OpenGL ES 1.0 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1
Memor: 1GB/ 1.5GB /2GB/4GB
LPDDR4 Onboard storage: 16MB SPI
Flash Power management: AXP313A
Onboard WiFi+ Bluetooth: supports WiFi5 and
Bluetooth 5.0 Network: 10M/100M/1000M Ethernet interface
Audio input and output: 13Pin expansion port supports two outputs and one input
Video Output: Micro
HDMI support 4K@60fps tv-out: 13Pin supports one TV CVBS output
UART: 3Pin
Debug UART USB: USB 2.0 x 3 (two of which lead from the expansion board)
SD Card port: MicroSD card port

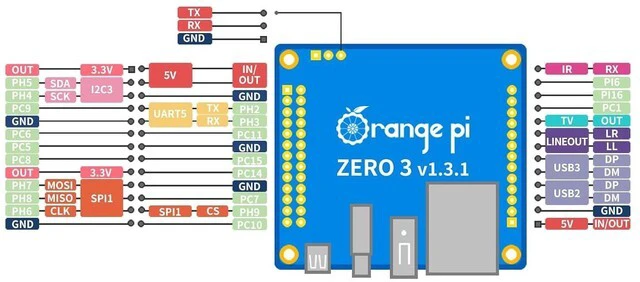

Expansion interface: 26Pin GPIO interface 13Pin GPIO interface
Power input: 5V3A, Type-c interface
Supported Operating Systems: Android 12 TV, Debian11, Debian12, Ubuntu 22.04, Ubuntu 20.04 Appearance
Specification Product size: 50mmX55mm
GPU: Mali G31 MP2 Support OpenGL ES 1.0 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1
Memor: 1GB/ 1.5GB /2GB/4GB
LPDDR4 Onboard storage: 16MB SPI
Flash Power management: AXP313A
Onboard WiFi+ Bluetooth: supports WiFi5 and
Bluetooth 5.0 Network: 10M/100M/1000M Ethernet interface
Audio input and output: 13Pin expansion port supports two outputs and one input
Video Output: Micro
HDMI support 4K@60fps tv-out: 13Pin supports one TV CVBS output
UART: 3Pin
Debug UART USB: USB 2.0 x 3 (two of which lead from the expansion board)
SD Card port: MicroSD card port
Expansion interface: 26Pin GPIO interface 13Pin GPIO interface
Power input: 5V3A, Type-c interface
Supported Operating Systems: Android 12 TV, Debian11, Debian12, Ubuntu 22.04, Ubuntu 20.04 Appearance
Specification Product size: 50mmX55mm
