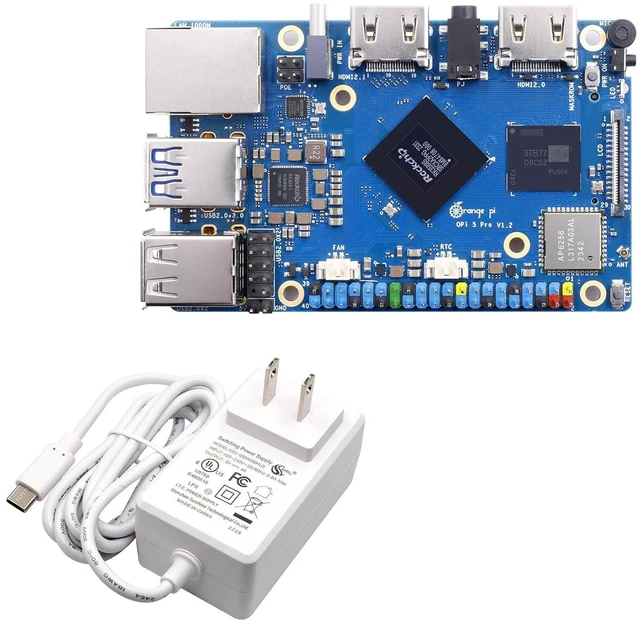

Orange Pi 5 Pro 8GB LPDDR5 RK3588S 8 Core 64 Bit Single Board Computer, 8K Video Decoding 2.4GHz Frequency WiFi Bluetooth Open Source Board Run Orange Pi OS, Android, Debian, Ubuntu
Limited time offer, ends 09/19 By CoreDepot
- High Performance LPDDR5 - Orange Pi 5 Pro 8g uses Rockchip RK3588S 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, with 4GB/8GB/16GB LPDDR5 and supports for eMMC module or SPI Flash (either one), integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2; High Computility - Orange Pi 5 Pro 8gb embedded NPU supports INT4/INT8/INT16 mixed computing, with up to 6TOPS of computility, which can meet the edge computing needs of most end devices.; 8K Video Decoding - 8K video decoding for clear and realistic picture. With support for up to 8K@60Hz, the powerful video codec allows for clearer images and more detailed picture quality.; WiFi5+ BT5.0 with BLE Support - Orange pi 5 pro 8G Built-in 2.4G/5G dual-band Wi-Fi5 and Bluetooth 5.0 with BLE support for stronger and more stable signals and easier and faster network transmission; Rich Ports - The Orange Pi 5 Pro provides abundant interfaces, including HDMI output, GPIO ports, USB2.0, USB3.1, 3.5mm headphone socket,Gigabit LAN port with PoE+ support (PoE+ HAT required), etc., with an M.2 M-key slot that supports the installation of NVMe SSD or SATA SSD.;
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

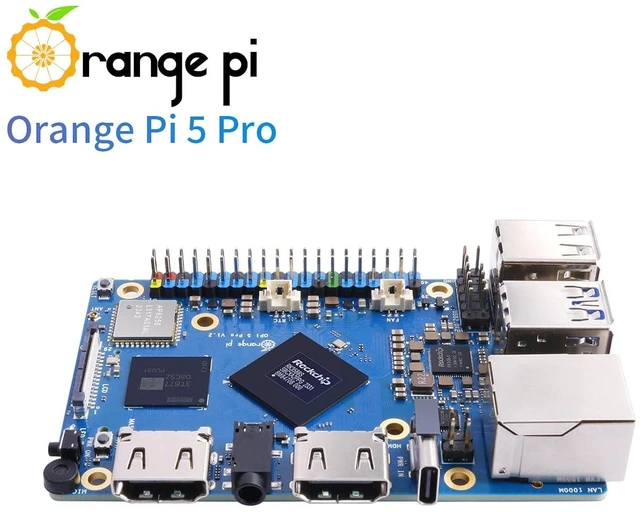

Orange Pi 5
Pro Hardware Parameters Master Chip: Rockchip RK3588S (8nm LP process)
CPU: 8-core 64-bit processor big.
LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GH z, and little core cluster is 1.8GH z frequency.
GPU: Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2
NPU: Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power
PMU: RK806-1
RAM: LPDDR5 496PIN4GB/8GB/16GB (optional)
Memory: eMMC
socket: supports eMMC module (optional) SPI Flash (default empty)
Note: either eMMC socket or on-board SPI Flash is preferred. MicroSD (TF) slot M.
2 M-KEY slot: NVMe SSD or
SATA SSD USB: USB 3.1 Gen1 * 1; USB 2.0 *1
USB HUB: USB 2.0 *2TYPE A+UAB 2.0 *2 row of pins
Video Output: HDMI 2.1 up to 8K @60Hz HDMI 2.0, up to 4K @60Hz MIPI 4 Lane, up to 4K @60Hz
Camera: 2*MIPI 4
Lane Audio:
CODEC: ES8388 3.5 mm headphone jack audio input/output
Input: onboard MIC HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required)
Wi-Fi+BT Module: Onboard
Wi-Fi5+BT 5.0 /BLE module: AP6256 PCIe M. 2 M-KEY Socket M. 2 M-Key slot supports access to NVMe SSD or SATA
SSD Expansion Port: Dual-row
pin: 2.54 mm 40Pin Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button: 1* MaskROM, 1*RESET, 1 * POWER
Power Source: Supports Type-C power supply, 5V @ 5A
LED: RGB LED three-color indicator
Status indicator: green
FAN: 5V 2PIN 1.25 mm socket
RTC: 3V 2PIN 1.25 mm socket Appearance
Specification Introduction Dimension: 89mm*56mm* 1.6 mm
Weight: 62g
Pro Hardware Parameters Master Chip: Rockchip RK3588S (8nm LP process)
CPU: 8-core 64-bit processor big.
LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GH z, and little core cluster is 1.8GH z frequency.
GPU: Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2
NPU: Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power
PMU: RK806-1
RAM: LPDDR5 496PIN4GB/8GB/16GB (optional)
Memory: eMMC
socket: supports eMMC module (optional) SPI Flash (default empty)
Note: either eMMC socket or on-board SPI Flash is preferred. MicroSD (TF) slot M.
2 M-KEY slot: NVMe SSD or
SATA SSD USB: USB 3.1 Gen1 * 1; USB 2.0 *1
USB HUB: USB 2.0 *2TYPE A+UAB 2.0 *2 row of pins
Video Output: HDMI 2.1 up to 8K @60Hz HDMI 2.0, up to 4K @60Hz MIPI 4 Lane, up to 4K @60Hz
Camera: 2*MIPI 4
Lane Audio:
CODEC: ES8388 3.5 mm headphone jack audio input/output
Input: onboard MIC HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required)
Wi-Fi+BT Module: Onboard
Wi-Fi5+BT 5.0 /BLE module: AP6256 PCIe M. 2 M-KEY Socket M. 2 M-Key slot supports access to NVMe SSD or SATA
SSD Expansion Port: Dual-row
pin: 2.54 mm 40Pin Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button: 1* MaskROM, 1*RESET, 1 * POWER
Power Source: Supports Type-C power supply, 5V @ 5A
LED: RGB LED three-color indicator
Status indicator: green
FAN: 5V 2PIN 1.25 mm socket
RTC: 3V 2PIN 1.25 mm socket Appearance
Specification Introduction Dimension: 89mm*56mm* 1.6 mm
Weight: 62g
