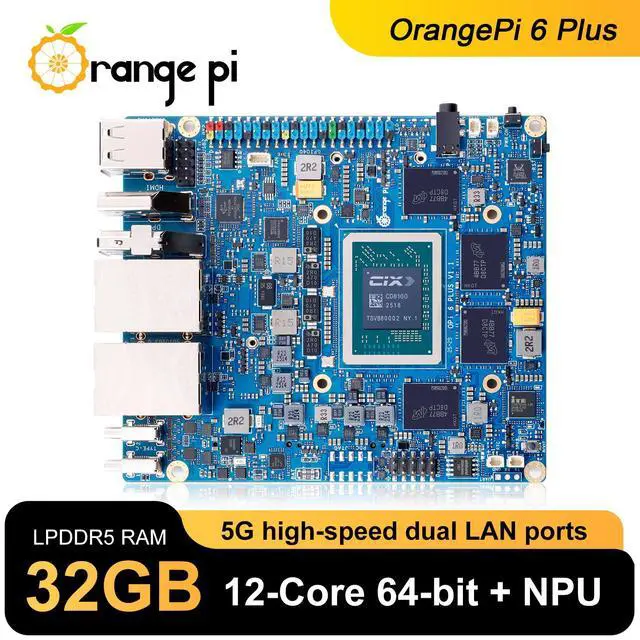

Orange Pi 6 Plus 32GB RAM 12 Core 64 Bit LPDDR5 Single Board Computer, CIX SoC 45TOPS AI NPU Mini PC Run Linux, Android, Windows, ROS2 OS with Heat Dissipation Assembly with Cooling Fan
- High Performance CIX SoC - OrangePi 6 Plus 32G adopts CIX CD8180/CD8160 SoC, built-in 12-core 64-bit processor + NPU processor, integrated graphics processor, equipped with 16GB/32GB /64GB LPDDR5, and provides two M.2 KEY-M interfaces 2280 for NVMe SSD,as well as SPI FLASH and TF slots to meet the needs of fast read/write and high-capacity storage; It is equipped with 45 Tops computing power to support a variety of end-side large-model applications and a rich end-side AI scene.; 45TOPS AI Computing Power - AI acceleration performance reaches 45TOPS, significantly enhancing AI development and deployment efficiency. It supports multiple mainstream AI models and meets the application needs of generative AI in diverse edge scenarios, such as chatbots and AI-assisted programming. At the same time, relying on its graphics acceleration algorithm and graphics engine, it can support desktop 3D graphics applications such as games and industrial design software.; Rich Ports - OrangePi 6 Plus 32GB has a rich set of interfaces, including USB3.0, USB2.0, HDMI, 5G Ethernet, MIPI camera interface, TF slot, Type-C port power supply, 40Pin expansion connector, and fan connector, etc., which greatly meets the user's needs for connecting to a variety of peripherals.;
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Hardware Parameters CPU: 12-core 64-bit processor + NPU processor 45TOPS computing power
GPU: Integrated graphics processor
RAM: LPDDR 5: 128 -bit x 32; 16GB/32GB /64GB
Storage Expansion: SPI
FLASH: 64Mbit NVME SSD (PCIe 4 laneM. 2 KEY-M interface 2280) *2 TF slot
Wi-Fi Module: M. 2 KEY-E socket PCIE Ethernet 5G
Ethernet*2 USB: USB 3.0 HOST *2 USB 2.0 *2 Reserved USB 2.0 9-pin socket USB full-function Type-C 3.0 HOST*2
Camera Interface: 2*4-lane MIPI CSI camera interface
Display Interface: 1*DP 1.4 4K@120HZ 2*TYPE-C DP 1*HDMI 1.4 4K@60HZ 1*eDP 4K@60HZ
Audio: 3.5 mm headphone jack audio input/output, speakers*2, analog MIC*1 TYPE-C Port
Power Supply: Type-C PD 20V IN*2, standard 100W
Expansion Interface: 40-pin function expansion interface, supporting
the following interface types: GPIO, UART, I2C, SPI, PWM
Indicator Light: Power-on indicator, system indicator, battery charging indicator
Button: 1* Power button, 1* BOOT button, 1* RESET button
Fan Interface: 1* Fan connector with PWM control
Reserved Interface: Board-to-board battery connector; 2-pin RTC connector
Power Adapter: Type-C PD 20V input, standard 100W
Operating System: Debian, Ubuntu, Android, Windows, ROS2
Appearance Dimensions: 115*100mm
Weight: 132g
GPU: Integrated graphics processor
RAM: LPDDR 5: 128 -bit x 32; 16GB/32GB /64GB
Storage Expansion: SPI
FLASH: 64Mbit NVME SSD (PCIe 4 laneM. 2 KEY-M interface 2280) *2 TF slot
Wi-Fi Module: M. 2 KEY-E socket PCIE Ethernet 5G
Ethernet*2 USB: USB 3.0 HOST *2 USB 2.0 *2 Reserved USB 2.0 9-pin socket USB full-function Type-C 3.0 HOST*2
Camera Interface: 2*4-lane MIPI CSI camera interface
Display Interface: 1*DP 1.4 4K@120HZ 2*TYPE-C DP 1*HDMI 1.4 4K@60HZ 1*eDP 4K@60HZ
Audio: 3.5 mm headphone jack audio input/output, speakers*2, analog MIC*1 TYPE-C Port
Power Supply: Type-C PD 20V IN*2, standard 100W
Expansion Interface: 40-pin function expansion interface, supporting
the following interface types: GPIO, UART, I2C, SPI, PWM
Indicator Light: Power-on indicator, system indicator, battery charging indicator
Button: 1* Power button, 1* BOOT button, 1* RESET button
Fan Interface: 1* Fan connector with PWM control
Reserved Interface: Board-to-board battery connector; 2-pin RTC connector
Power Adapter: Type-C PD 20V input, standard 100W
Operating System: Debian, Ubuntu, Android, Windows, ROS2
Appearance Dimensions: 115*100mm
Weight: 132g
