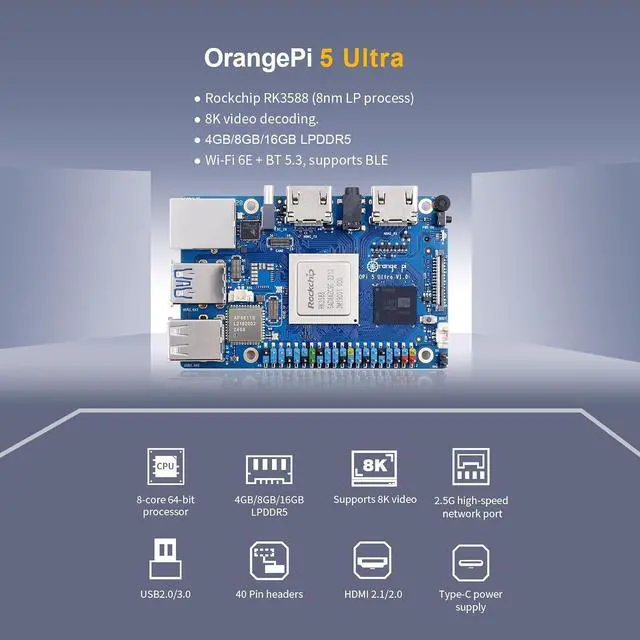

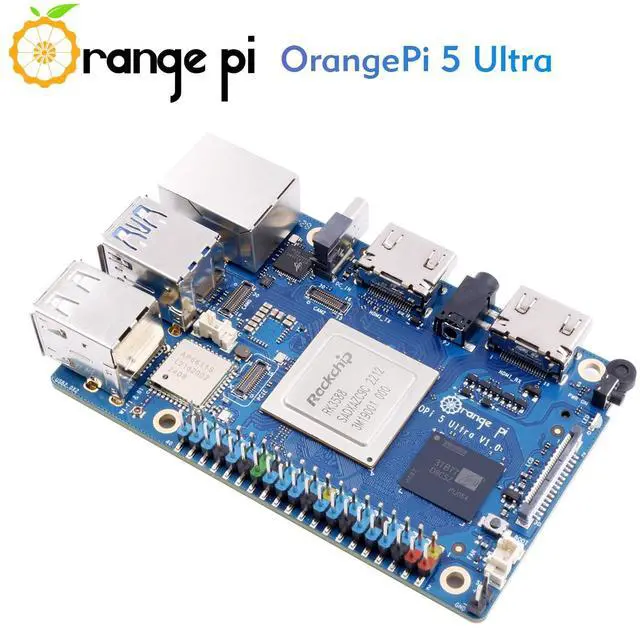

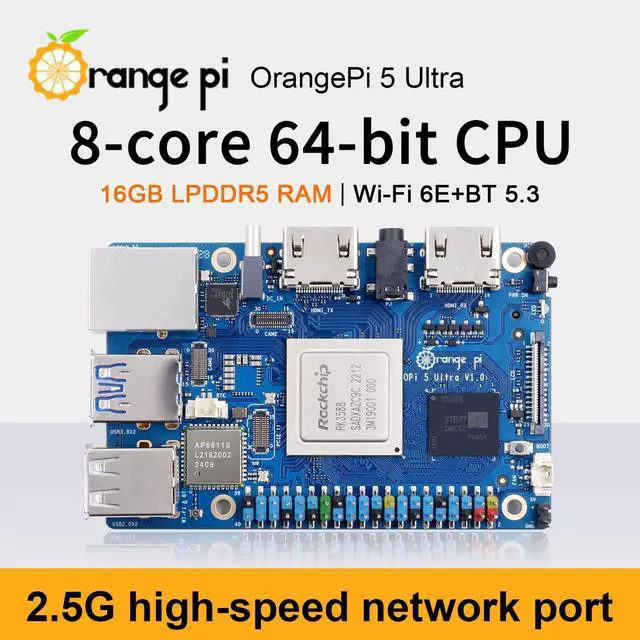

Orange Pi 5 Ultra 16GB RAM LPDDR5 Rockchip RK3588 Development Board, 8K Video Decoding 2.4GHz Frequency M.2 PCIE 2.5G LAN Wi-Fi 6E+BT 5.3/BLE Single Board Computer
- High Performance RK3588 - Orange Pi 5 Ultra 16GB uses Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor. Adopting 8nm process design, the main frequency is up to 2.4GHz, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2; LPDDR5 8K Video Decoding - Orange pi 5 Ultra has 16gb LPDDR5, with up to 8K display processing capability, the powerful video codec allows for clearer images and more detailed picture quality, 1*HDMl 2.1 out up to 8k@60FPS & 1*HDMl 2.0 in up to 4k@60FPS, supports up to 8K@60FPS + 4-Lane MIPI DSI for high-end applications such as VR cameras and deep vision. supports eMMC socket and onboard eMMC (either one ); 6TOPS High Computing Power - Orange Pi 5 Ultra 16G embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing, with up to 6TOPS of computing power, which can meet the edge computing needs of most terminal devices, suitable for developing AI applications.; Wi-Fi 6E+BT 5.3 with BLE Support - Orange pi 5 Ultra 16g has WiFi 6E + Bluetooth 5.3, supports BLE, stronger and more stable signals and easier and faster network transmission; Rich Ports - OrangePi 5 Ultra provides abundant interfaces, including HDMI output, GPIO interface, USB2.0, USB3.0, 3.5mm headphone socket, one PCIe extended 2.5G high-speed network port, one M.2 M-Key slot (PCIe 3.0 4-Lane), supporting for the installation of NVMe SSDs or SATA SSDs.;
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

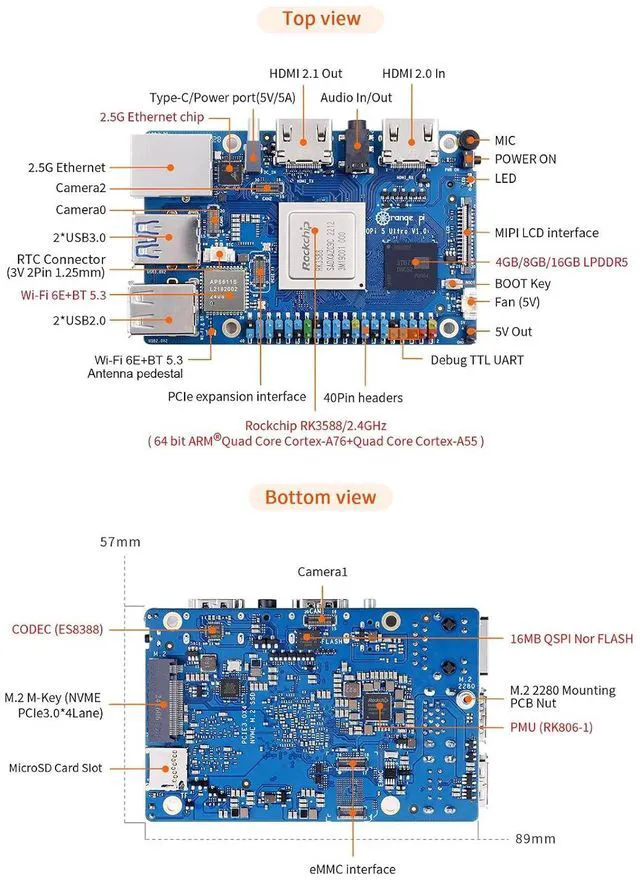

Hardware Parameters Master Chip: Rockchip RK3588 (8nm LP process) CPU 8-core 64-bit processor 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor Cortex-A76 at 2.4GH z, Cortex-A55 at 1.8GH z GPU Integrated ARM Mali-G610 Built-in 3D GPU Fully compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2.
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
PMU: RK806-1
RAM: LPDDR5 496PIN4GB8GB16GB optional Memory eMMC Flash Socketsdefault Onboard eMMCcustomizable
Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional
QSPI Nor FLASH: 16MB MicroSD card slot M.
2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane)
USB: 2*USB 3.02 *USB 2.0 Video 1*HDMl 2.1 out up to 8k@60FPS & 1*HDMl 2.0 in up to 4k@60FPS 1* MIPI DSI TX 4 Lane Camera 2* MIPI CSI 4 Lane 1* MIPI D-PHY RX 4 Lane Audio CODECES8388 1* Audio 3.5 mm jack with mic 1*MIC In 1*HDMI 2.1 eARC
Ethernet: 1*PCIe 2.5G LANRTL8125BG ) Wi-Fi+BT Module Onboard Wi-Fi 6E+BT 5.3 /BLE module: AP6611
Wi-Fi interface: SDIO 3.0
BT interface: UART/PCM

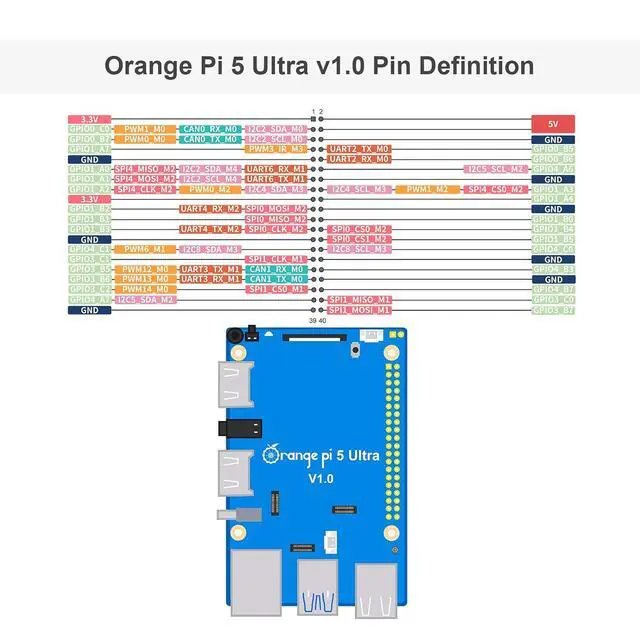

Expansion Port Dual-row pin: 2.54 mm 40Pin Supports DC 5V and 3.3V power output Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* BOOT key, 1 * On/Off key

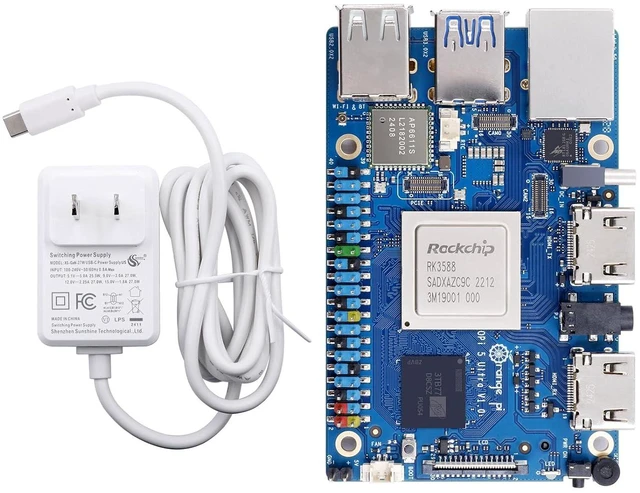

Power Source: Supports Type-C power supply, 5V @ 5A
LED: RGB LED Side
Illumination FAN: 5V 2PIN 1.25 mm socket
RTC: 3V 2PIN 1.25 mm socket
Debugging: Debug serial UART included in 40PIN expansion port
Supported OS: Orangepi OSDroidOrangepi OSArchOrangepi OSOH
UbuntuDebianAndroid12 Appearance Specification Introduction PCB Length: 89mm, Width: 57mm, Thickness: 1.6 mm
Weight: 62g
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
PMU: RK806-1
RAM: LPDDR5 496PIN4GB8GB16GB optional Memory eMMC Flash Socketsdefault Onboard eMMCcustomizable
Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional
QSPI Nor FLASH: 16MB MicroSD card slot M.
2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane)
USB: 2*USB 3.02 *USB 2.0 Video 1*HDMl 2.1 out up to 8k@60FPS & 1*HDMl 2.0 in up to 4k@60FPS 1* MIPI DSI TX 4 Lane Camera 2* MIPI CSI 4 Lane 1* MIPI D-PHY RX 4 Lane Audio CODECES8388 1* Audio 3.5 mm jack with mic 1*MIC In 1*HDMI 2.1 eARC
Ethernet: 1*PCIe 2.5G LANRTL8125BG ) Wi-Fi+BT Module Onboard Wi-Fi 6E+BT 5.3 /BLE module: AP6611
Wi-Fi interface: SDIO 3.0
BT interface: UART/PCM
Expansion Port Dual-row pin: 2.54 mm 40Pin Supports DC 5V and 3.3V power output Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* BOOT key, 1 * On/Off key
Power Source: Supports Type-C power supply, 5V @ 5A
LED: RGB LED Side
Illumination FAN: 5V 2PIN 1.25 mm socket
RTC: 3V 2PIN 1.25 mm socket
Debugging: Debug serial UART included in 40PIN expansion port
Supported OS: Orangepi OSDroidOrangepi OSArchOrangepi OSOH
UbuntuDebianAndroid12 Appearance Specification Introduction PCB Length: 89mm, Width: 57mm, Thickness: 1.6 mm
Weight: 62g
