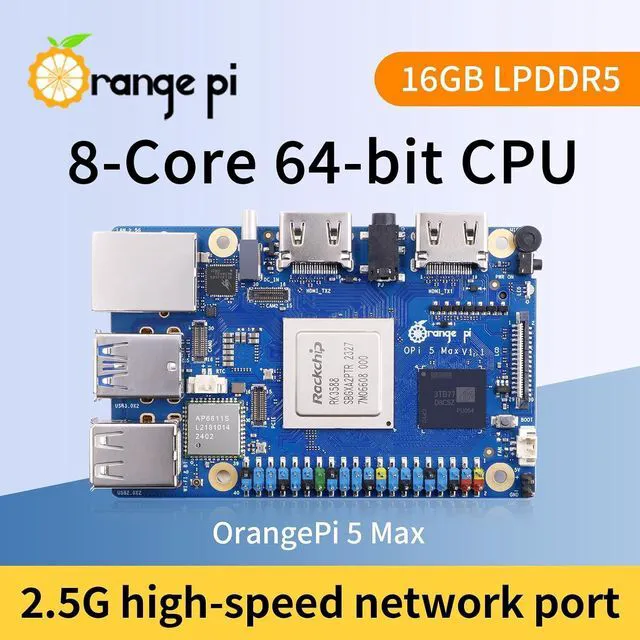

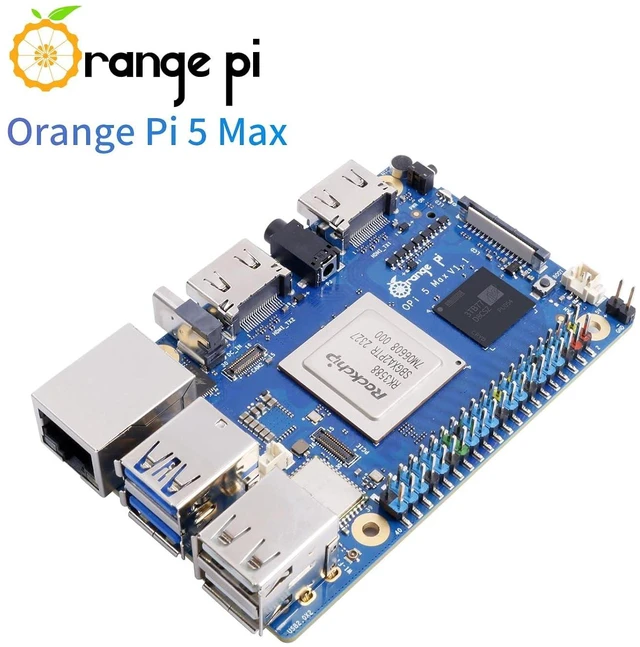

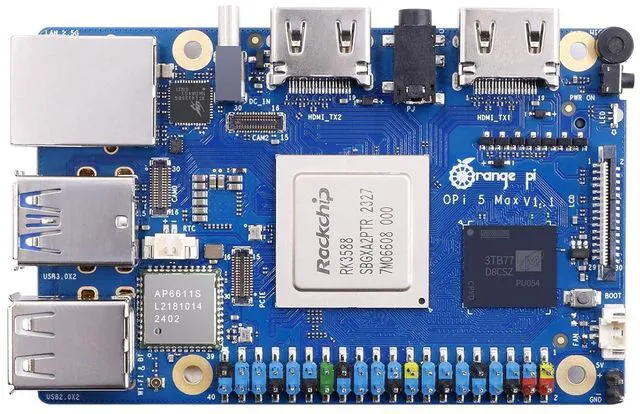

Orange Pi 5 Max 16GB RAM LPDDR5 8 Core 64 Bit Rockchip RK3588 Development Board, 8K Video Decoding 2.4GHz Frequency M.2 PCIE 2.5G LAN Single Board Computer
- High Performance RK3588 - Orange Pi 5 Max 16G uses Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor. Adopting 8nm process design, the main frequency is up to 2.4GHz, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2; LPDDR5 8K Video Decoding - Orange pi 5 max 16gb has LPDDR5, with up to 8K display processing capability, the powerful video codec allows for clearer images and more detailed picture quality, Dual HDMI 2.1, supports up to 8K@60FPS + 4-Lane MIPI DSI for high-end applications such as VR cameras and deep vision. supports eMMC socket and onboard eMMC (either one ); 6TOPS High Computing Power - Orange Pi 5 Max 16GB embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing, with up to 6TOPS of computing power, which can meet the edge computing needs of most terminal devices, suitable for developing AI applications.; Wi-Fi 6E+BT 5.3 with BLE Support - Orange pi 5 Max has WiFi 6E + Bluetooth 5.3, supports BLE, stronger and more stable signals and easier and faster network transmission; Rich Ports - OrangePi 5 Max provides abundant interfaces, including HDMI output, GPIO interface, USB2.0, USB3.0, 3.5mm headphone socket, one PCIe extended 2.5G high-speed network port, one M.2 M-Key slot (PCIe 3.0 4-Lane), supporting for the installation of NVMe SSDs or SATA SSDs.;
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Hardware Parameters Master Chip: Rockchip RK3588 (8nm LP process) CPU 8-core 64-bit processor 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor Cortex-A76 at 2.4GH z, Cortex-A55 at 1.8GH z GPU Integrated ARM Mali-G610 Built-in 3D GPU Fully compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2.
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
PMU: RK806-1
RAM: LPDDR5 496PIN4GB8GB16GB optional Memory eMMC Flash Socketsdefault Onboard eMMCcustomizable
Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional
QSPI Nor FLASH: 16MB MicroSD card slot M.
2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane)
USB: 2*USB 3.02 *USB 2.0 Video 2* HDMI 2.1, up to 8k@60FPS 1* MIPI DSI TX 4 Lane Camera 2* MIPI CSI 4 Lane 1* MIPI D-PHY RX 4 Lane Audio CODECES8388 1* Audio 3.5 mm jack with mic 1*MIC In 1*HDMI 2.1 eARC
Ethernet: 1*PCIe 2.5G LANRTL8125BG ) Wi-Fi+BT Module Onboard Wi-Fi 6E+BT 5.3 /BLE module: AP6611
Wi-Fi interface: SDIO 3.0
BT interface: UART/PCM
Expansion Port Dual-row pin: 2.54 mm 40Pin Supports DC 5V and 3.3V power output Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* BOOT key, 1 * On/Off key
Power Source: Supports Type-C power supply, 5V @ 5A
LED: RGB LED Side
Illumination FAN: 5V 2PIN 1.25 mm socket
RTC: 3V 2PIN 1.25 mm socket
Debugging: Debug serial UART included in 40PIN expansion port
Supported OS: Orangepi OSDroidOrangepi OSArchOrangepi OSOH
UbuntuDebianAndroid12 Appearance Specification Introduction PCB Length: 89mm, Width: 57mm, Thickness: 1.6 mm
Weight: 62g
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
PMU: RK806-1
RAM: LPDDR5 496PIN4GB8GB16GB optional Memory eMMC Flash Socketsdefault Onboard eMMCcustomizable
Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional
QSPI Nor FLASH: 16MB MicroSD card slot M.
2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane)
USB: 2*USB 3.02 *USB 2.0 Video 2* HDMI 2.1, up to 8k@60FPS 1* MIPI DSI TX 4 Lane Camera 2* MIPI CSI 4 Lane 1* MIPI D-PHY RX 4 Lane Audio CODECES8388 1* Audio 3.5 mm jack with mic 1*MIC In 1*HDMI 2.1 eARC
Ethernet: 1*PCIe 2.5G LANRTL8125BG ) Wi-Fi+BT Module Onboard Wi-Fi 6E+BT 5.3 /BLE module: AP6611
Wi-Fi interface: SDIO 3.0
BT interface: UART/PCM
Expansion Port Dual-row pin: 2.54 mm 40Pin Supports DC 5V and 3.3V power output Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* BOOT key, 1 * On/Off key
Power Source: Supports Type-C power supply, 5V @ 5A
LED: RGB LED Side
Illumination FAN: 5V 2PIN 1.25 mm socket
RTC: 3V 2PIN 1.25 mm socket
Debugging: Debug serial UART included in 40PIN expansion port
Supported OS: Orangepi OSDroidOrangepi OSArchOrangepi OSOH
UbuntuDebianAndroid12 Appearance Specification Introduction PCB Length: 89mm, Width: 57mm, Thickness: 1.6 mm
Weight: 62g
