Orange Pi 5 Pro 16GB LPDDR5 8 Core 64 Bit RK3588S Single Board Computer, 8K Video Decoding 2.4GHz Frequency WiFi Bluetooth Open Source Board Run Orange Pi OS, Android, Debian, Ubuntu

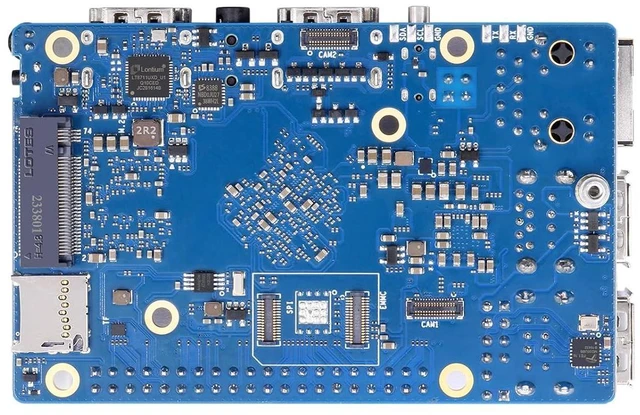

Product description New Single Board Computer Orange Pi 5 Pro Orange Pi 5 Pro uses Rockchip RK3588S 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GH z main frequency, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2 Dual HDMI 2.1, supports up to 8K@60FPS + 4-Lane MIPI DSI for high-end applications such as VR cameras and deep vision. Orange Pi 5 Pro Product Parameters Main Control Chip Rockchip RK3588S (8nm LP process) CPU 8-core 64-bit processor big.

LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GH z, and little core cluster is 1.8GH z frequency. GPU Arm Mali-G610 Built-in 3D GPU Compatible with OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2 and Vulkan 1.2 NPU Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power RAM LPDDR5 496PIN4GB/8GB/16GB (optional)
Memory eMMC socket: supports eMMC module (optional) SPI Flash (default empty)
Note: either eMMC socket or on-board SPI Flash is preferred. MicroSD (TF) slot M.
2 M-KEY slot: NVMe SSD or SATA SSD USB USB 3.1 Gen1 * 1; USB 2.0 *1
USB HUB: USB 2.0 *2TYPE A+UAB 2.0 *2 row of pins Video Output HDMI 2.1 up to 8K @60Hz HDMI 2.0, up to 4K @60Hz MIPI DSI 4 Lane, up to 4K @60Hz Camera 2*MIPI 4 Lane
Audio CODEC: ES8388 3.5 mm headphone jack audio input/output
Input: onboard MIC HDMI 2.1 eARC Ethernet&Wi-Fi+BT Module 10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required);
Onboard Wi-Fi5+BT 5.0 /BLE module: AP6256 Expansion port
Dual-row pin: 2.54 mm 40Pin Supports DC 5V and 3.3V power outputs Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces RTC 3V 2PIN 1.25 mm socket FAN 5V 2PIN 1.25 mm socket LED RGB LED tri-color indicator Supported Operating Systems Orangepi OSDroidOrangepi OSArchUbuntuDebianAndroid12 Orange Pi 5 Pro & Other Orange Pi Single Board Computer Orange Pi 5 Pro Add to Cart Orange Pi 5 Max Buying Options Orange Pi 5 Plus Buying Options Orange Pi 5B Buying Options Orange Pi 3 LTS Buying Options Orange Pi Zero 2 Buying Options Orange Pi Zero 3 Add to Cart Customer Reviews 4.1 out of 5 stars 25 3.7 out of 5 stars 7 4.1 out of 5 stars 32 3.8 out of 5 stars 10 4.4 out of 5 stars 155 4.4 out of 5 stars 9 4.4 out of 5 stars 68 Price $ 261.99 $261. 99 $ 80.99 $80. 99 SoC Rockchip RK3588S Rockchip RK3588 Rockchip RK3588 Rockchip RK3588S Allwinner H6 Allwinner H616 Allwinner H618 RAM 4GB/8GB/16GB LPDDR5 496PIN LPDDR5 496PIN4GB/8GB/16GB 4GB/8GB/16GB/32G (LPDDR4/4x) 4GB/8GB/16GB (LPDDR4/4x) 2GB LPDDR3 1GB DDR3 1GB/ 1.5GB /2GB/4GB LPDDR4 Core 8 Core 8 Core 8 Core 8 Core 4 Core 4 Core 4 Core Onboard Storage - - - 32G/64G/128G/256G eMMC Flash 8GB EMMC Flash 2MB SPI Flash 16MB SPI Flash eMMC Module Socket 32GB/64GB/256GB 32GB/64GB/256GB 32GB/64GB/256GB - - - - Wi-Fi / Bluetooth Onboard Wi-Fi 6E+BT 5.3 /BLE Onboard Wi-Fi5+BT 5.0 /BLE - Dual-band Wi-Fi6+BT 5.0 Dual-band Wi-Fi+BT 5.0 Wi-Fi+BT 5.0 WiFi5 and Bluetooth 5.0 CPU Frequency 2.4GH z 2.4GH z 2.4GH z 2.4GH z 1.8GH z - 1.5GH z Power Source 5V5A Type C Power Supply 5V5A Type C Power Supply 5V4A Type C Power Supply 5V4A Type C Power Supply 5V3A Type C Power Supply 5V3A Type C Power Supply 5V3A Type C Power Supply Dimension 89mm * 56mm 89mm * 57mm 100mm * 75mm 62mm * 100mm 56mm*85mm 53mm*60mm 50mm*55mm Weight 62g 62g 86.5 g 52g 45g 30g -
