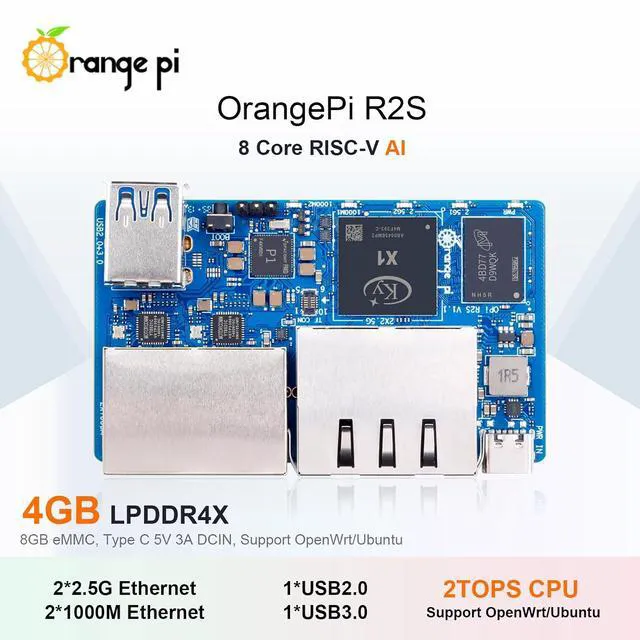

Orange Pi R2S 4GB RAM LPDDR4X with 8GB eMMC Flash RISC V 8 Core 2Tops Al Arithmetic Power Development Board, 2.5G High-Speed Dual LAN Ports Single Board Computer (4GB)

Product description New Single Board Computer Orange Pi R2S Orange Pi R2S features a wealth of interfaces, including 2.5G high-speed dual LAN ports, dual Gigabit LAN ports, USB 2.0, USB 3.0, Type-C power supply, TF card slot, debug serial port, and more. It has 2GB/4GB/8GB LPDDR4X operating memory, and supports 8GB eMMC. OrangePi R2S is a cost-effective RISC-V development board with Ky X1 8-core RISC V AI CPU, providing 2TOPS CPU fusion of general-purpose computing power to support rapid deployment of AI model algorithms. Deeply adapted to DeepSeekSupports local deployment of Deepseek-R1 distillation models, which helps users realize efficient end-side intelligence and ensure the security and controllability of data processing through offline deployment at the edge.

Orange Pi R2S Product Parameters CPU Ky X1 8-core RISC-V AI CPU 2TOPS AI power
Memory LPDDR4X: 2GB/4GB/8GB optional
Storage eMMC: 8GB Ethernet transceiver 1000M Ethernet*2; 2.5G Ethernet*2 USB USB 3.0 *1; USB 2.0 *1 (can be used for software upgrade and burning software) Buttons MASKROM key *1 Status lights Power indicator *1; 1000M Ethernet indicator *2; 2.5G Ethernet indicator *2 TF card TF card transfer interface DEBUG 3PIN debug serial port, 3.3V level Power supply Type C 5V 3A DCIN PCB 79.2 *46* 1.6 mm Supported OS OpenWrtUbuntu Orange Pi R2S & Other Orange Pi Single Board Computer Orange Pi R2S Add to Cart Orange Pi 5 Plus Buying Options Orange Pi 5 Pro Buying Options Orange Pi 5 Max Buying Options Orange Pi Zero 3 Add to Cart Orange Pi RV2 Buying Options Orange Pi Zero 2W Buying Options Customer Reviews 4.1 out of 5 stars 32 3.5 out of 5 stars 8 3.2 out of 5 stars 4 4.4 out of 5 stars 68 4.2 out of 5 stars 10 3.1 out of 5 stars 15 Price $ 83.99 $83. 99 $ 80.99 $80. 99 SoC Ky X1 8-core RISC-V AI CPU Rockchip RK3588 Rockchip RK3588S Rockchip RK3588 Allwinner H618 Ky X1 8-core RISC-V AI CPU Allwinner H618
RAM LPDDR4X: 2GB/4GB/8GB optional 4GB/8GB/16GB/32G (LPDDR4/4x) LPDDR5 496PIN4GB/8GB/16GB 4GB/8GB/16GB LPDDR5 496PIN 1GB/ 1.5GB /2GB/4GB
LPDDR4 LPDDR4X: 2GB/4GB/8GB optional LPDDR 4:1 GB/ 1.5GB /2GB/4GB Core 8-core 8 Core 8 Core 8 Core 4 Core 8 Core 4 Core Onboard Storage 32GB eMMC - - - 16MB SPI Flash - 16MB SPI Flash eMMC Module Socket - 32GB/64GB/256GB 32GB/64GB/256GB 32GB/64GB/256GB - 16GB/32GB/64GB/128GB optional - Wi-Fi / Bluetooth - - Onboard Wi-Fi5+BT 5.0 /BLE Onboard Wi-Fi 6E+BT 5.3 /BLE WiFi5 and Bluetooth 5.0 Wi-Fi 5.0 +BT 5.0, BLE Wi-Fi 5.0 +BT 5.0 CPU Frequency 1.6GH z 2.4GH z 2.4GH z 2.4GH z 1.5GH z 1.6GH z 1.5GH z Power Source 5V3A Type C Power Supply 5V4A Type C Power Supply 5V5A Type C Power Supply 5V5A Type C Power Supply 5V3A Type C Power Supply Type-C 5V 5A DC IN 5V3A Type C Power Supply Dimension 79.2 mm * 46mm 100mm * 75mm 89mm * 56mm 89mm * 57mm 50mm*55mm 89mm * 56mm 30mm * 65mm Weight 86.5 g 62g 62g - 12g 12.5 g
