$176.99
Ships from China.
Meet Your Seller

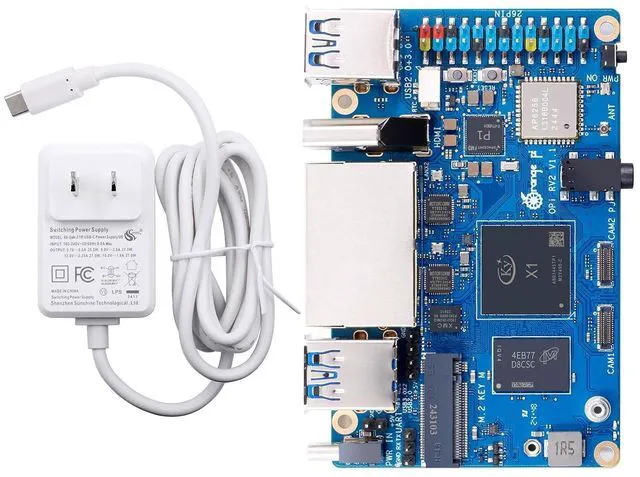

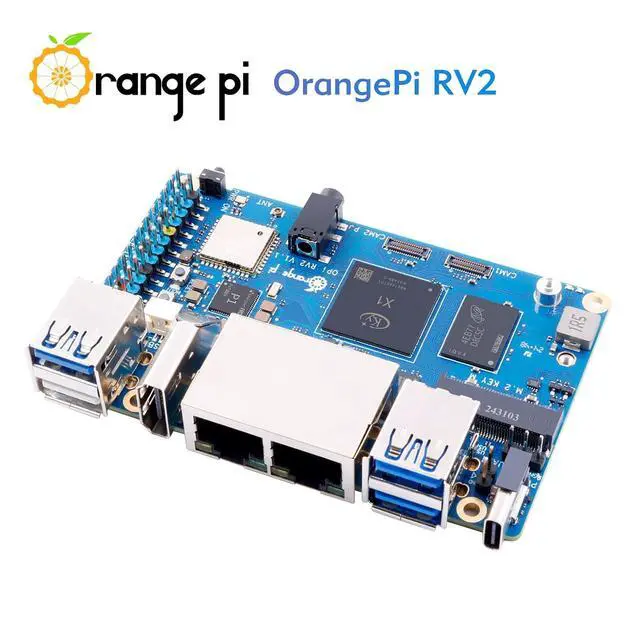

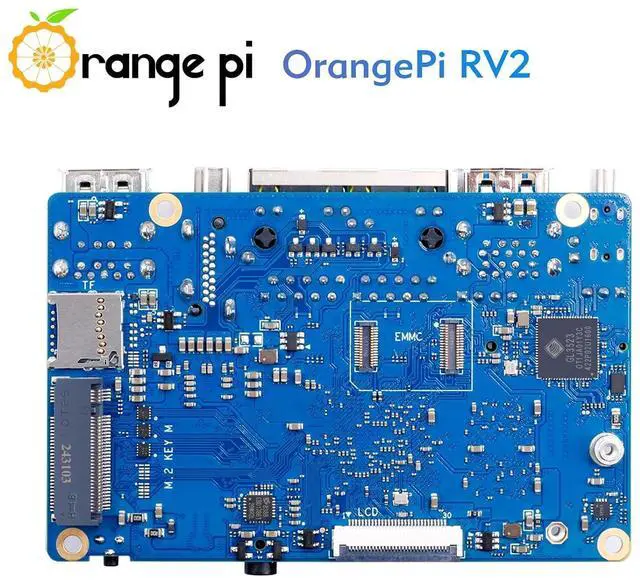

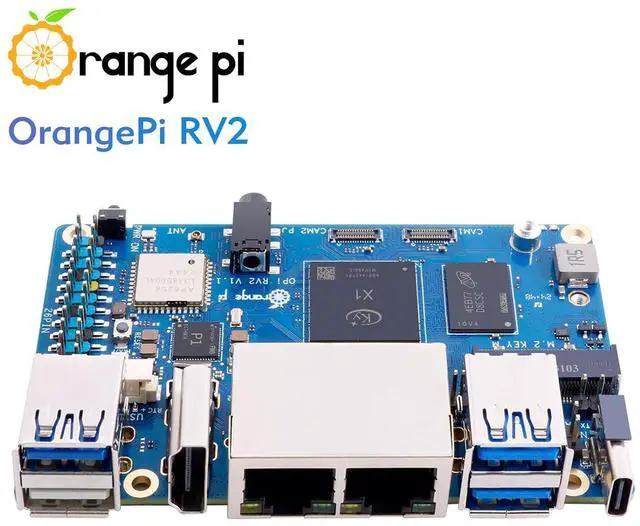

Orange Pi RV2 4GB RAM LPDDR4X RISC V 8 Core 2Tops Al Arithmetic Power Development Board, Wi-Fi 5+BT 5 with BLE Support Single Board Computer Run Ubuntu24.04 (4GB+Supply)
Limited time offer, ends 09/19 By CoreDepot
- High Performance RISC V AI - Orange Pi RV2 4GB is a cost-effective RlSC-V development board with CPU fusion Al technology architecture, equipped with a RlSC-V octa-core processor with 2TOPS Al arithmetic power fused in the core, which can support the rapiddeployment of Al model algorithms. lt has 8GB LPDDR4X, supports eMMC module(16GB/32GB/64GB/128GB optional), has WiFi 5.0+BT 5.0, with BLE support.; Leading Arithmetic Energyefficiency - With the streamlined RlSC-V architecture and excellent micro-architecture design, the arithmetic energy efficiency breaks through the process bottleneck, and the power consumption in the same scenario is only 80% of that of ARM A55.; Rich Ports - Orange Pi RV2 has a rich set of interfaces, including HDM output, GPlO port, USB2.0,USB3.0, PCle2.0 interface, Gigabit LAN port, 3.5mm headphone socket, Gigabit Ethernet interface, Wi-Fi and Bluetooth. MIPDSl, MPlCSl, 26Pin expansion port, equipped with two M.2 M-Key slots (PCle 2.0 2-Lane), supporting for the installation of NVMe SSDs.; CPU-integrated Al technology - Provides Al computing power in CPU mode, building a converged processor with complete CPU functions and powerful NPU computing power, realizing fast docking with mainstream Al ecosystems, support DeepSeek.;
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

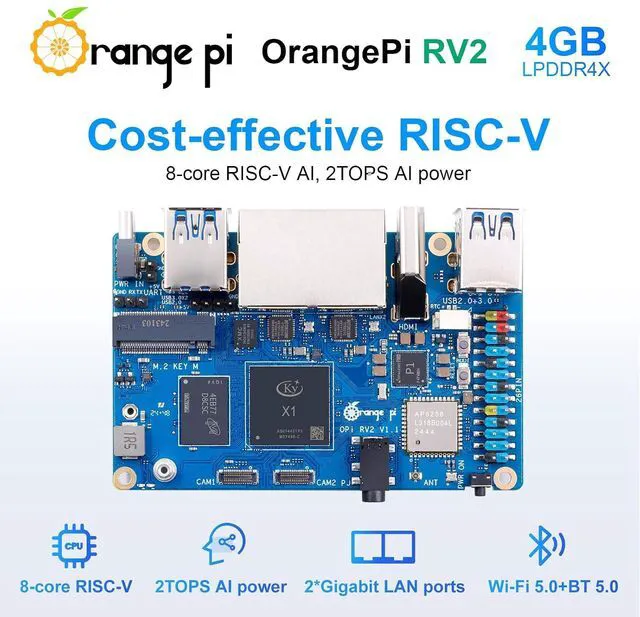

Product description New Single Board Computer Orange Pi RV2 Orange Pi RV2 Single borad computer has 2GB, 4GB, 8GB LPDDR4X, supports eMMC module, has Wi-Fi 5.0 +BT 5.0, with BLE support, has a rich set of interfaces, including HDMI output, GPIO port, USB 2.0, USB 3.0, Gigabit LAN port, 3.5 mm headphone socket, equipped with two M. 2 M-Key slots (PCIe 2.0 2-Lane) OrangePi RV2 is a cost-effective RISC-V development board with Ky X1 8-core RISC V AI CPU, providing 2TOPS CPU fusion of general-purpose computing power to support rapid deployment of AI model algorithms.
Deeply adapted to DeepSeekSupports local deployment of Deepseek-R1 distillation models, which helps users realize efficient end-side intelligence and ensure the security and controllability of data processing through offline deployment at the edge. Orange Pi RV2 Product Parameters CPU Ky X1 8-core RISC-V AI CPU 2TOPS AI power
Memory LPDDR4X: 2GB/4GB/8GB optional
Storage eMMC module (optional): 16GB/32GB/64GB/128GB optional
SPI FLASH: 128Mb (default), 256Mb optional 2*M.
2 M-Key SOCKET: PCIe 2.0 2 Lane NVMe
SSD TF Card: Supports SDIO 3.0 TF Card Wi-Fi + Bluetooth Wi-Fi +
Bluetooth 2-in-1 Module: AP6256 Wi-Fi 5.0 +BT 5.0, BLE Ethernet interface 2* Gigabit Ethernet, PHY

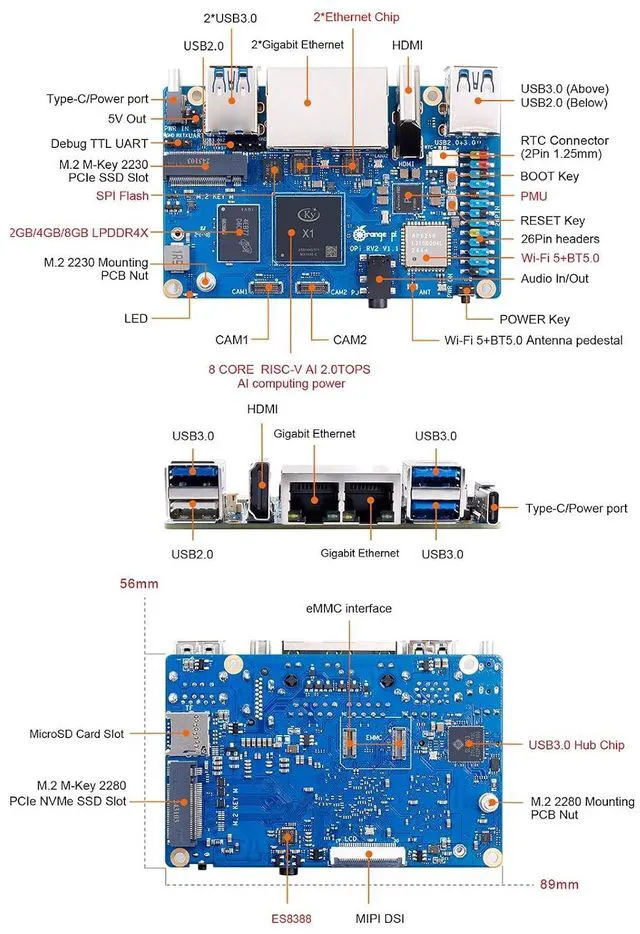

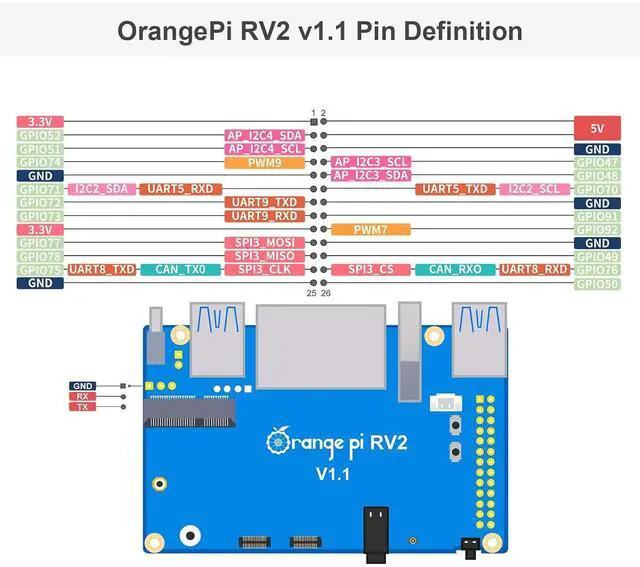

Chip: YT8531C-CA Display Supports dual-screen heterodyne display, up to 1920*1440@60fPS 1* HDMI 2.0 1* 4-lane MIPI DSI Camera 2x 4-lane MIPI CSI camera interface USB 1*USB 2.0 HOST or DEVICE 3*USB 3.0 HOST 1*USB 2.0 HOST (4Pin header) Audio 3.5 mm headphone jack audio input/output HDMI audio output Buttons 1* BOOT, 1*RESET, 1 *PWR ON RTC 2Pin spare battery connector (Pitch= 1.25 mm) 26Pin 26Pin function expansion interface, supports
the following interface types: GPIO, UART, I2C, SPI, PWM, etc. DEBUG 3Pin debug serial port, 3.3V level Power input/output
Power connector: 2Pin. Maximum 5V 1A output, such as connecting the fan. Supported OS Ubuntu 24.04 PCB size 89*56* 1.6 mm Orange Pi RV2 & Other Orange Pi Single Board Computer Orange Pi RV2 Buying Options Orange Pi 5 Plus Buying Options Orange Pi 5 Pro Buying Options Orange Pi 5 Max Buying Options Orange Pi Zero 3 Add to Cart Orange Pi CM5 Buying Options Orange Pi Zero 2W Buying Options Customer Reviews 4.2 out of 5 stars 10 4.1 out of 5 stars 32 3.5 out of 5 stars 8 3.2 out of 5 stars 4 4.4 out of 5 stars 68 3.4 out of 5 stars 4 3.1 out of 5 stars 15 Price $ 80.99 $80. 99 SoC Ky X1 8-core RISC-V AI CPU Rockchip RK3588 Rockchip RK3588S Rockchip RK3588 Allwinner H618 Rockchip RK3588S Allwinner H618
RAM LPDDR4X: 2GB/4GB/8GB optional 4GB/8GB/16GB/32G (LPDDR4/4x) LPDDR5 496PIN4GB/8GB/16GB 4GB/8GB/16GB LPDDR5 496PIN 1GB/ 1.5GB /2GB/4GB LPDDR4 4GB/8GB/16GB (LPDDR4/4x) LPDDR 4:1 GB/ 1.5GB /2GB/4GB Core 8-core 8 Core 8 Core 8 Core 4 Core 8 Core 4 Core Onboard Storage - - - - 16MB SPI Flash 32GB 16MB SPI Flash eMMC Module Socket 16GB/32GB/64GB/128GB optional 32GB/64GB/256GB 32GB/64GB/256GB 32GB/64GB/256GB - - Wi-Fi / Bluetooth Wi-Fi 5.0 +BT 5.0, BLE - Onboard Wi-Fi5+BT 5.0 /BLE Onboard Wi-Fi 6E+BT 5.3 /BLE WiFi5 and Bluetooth 5.0 - Wi-Fi 5.0 +BT 5.0 CPU Frequency 1.6GH z 2.4GH z 2.4GH z 2.4GH z 1.5GH z 2.4GH z 1.5GH z Power Source Type-C 5V 5A DC IN 5V4A Type C Power Supply 5V5A Type C Power Supply 5V5A Type C Power Supply 5V3A Type C Power Supply 5V4A/5V5A Type C Power Supply 5V3A Type C Power Supply Dimension 89mm * 56mm 100mm * 75mm 89mm * 56mm 89mm * 57mm 50mm*55mm 50mm*40mm 30mm * 65mm Weight 86.5 g 62g 62g - 12g 12.5 g
Deeply adapted to DeepSeekSupports local deployment of Deepseek-R1 distillation models, which helps users realize efficient end-side intelligence and ensure the security and controllability of data processing through offline deployment at the edge. Orange Pi RV2 Product Parameters CPU Ky X1 8-core RISC-V AI CPU 2TOPS AI power
Memory LPDDR4X: 2GB/4GB/8GB optional
Storage eMMC module (optional): 16GB/32GB/64GB/128GB optional
SPI FLASH: 128Mb (default), 256Mb optional 2*M.
2 M-Key SOCKET: PCIe 2.0 2 Lane NVMe
SSD TF Card: Supports SDIO 3.0 TF Card Wi-Fi + Bluetooth Wi-Fi +
Bluetooth 2-in-1 Module: AP6256 Wi-Fi 5.0 +BT 5.0, BLE Ethernet interface 2* Gigabit Ethernet, PHY
Chip: YT8531C-CA Display Supports dual-screen heterodyne display, up to 1920*1440@60fPS 1* HDMI 2.0 1* 4-lane MIPI DSI Camera 2x 4-lane MIPI CSI camera interface USB 1*USB 2.0 HOST or DEVICE 3*USB 3.0 HOST 1*USB 2.0 HOST (4Pin header) Audio 3.5 mm headphone jack audio input/output HDMI audio output Buttons 1* BOOT, 1*RESET, 1 *PWR ON RTC 2Pin spare battery connector (Pitch= 1.25 mm) 26Pin 26Pin function expansion interface, supports
the following interface types: GPIO, UART, I2C, SPI, PWM, etc. DEBUG 3Pin debug serial port, 3.3V level Power input/output
Power connector: 2Pin. Maximum 5V 1A output, such as connecting the fan. Supported OS Ubuntu 24.04 PCB size 89*56* 1.6 mm Orange Pi RV2 & Other Orange Pi Single Board Computer Orange Pi RV2 Buying Options Orange Pi 5 Plus Buying Options Orange Pi 5 Pro Buying Options Orange Pi 5 Max Buying Options Orange Pi Zero 3 Add to Cart Orange Pi CM5 Buying Options Orange Pi Zero 2W Buying Options Customer Reviews 4.2 out of 5 stars 10 4.1 out of 5 stars 32 3.5 out of 5 stars 8 3.2 out of 5 stars 4 4.4 out of 5 stars 68 3.4 out of 5 stars 4 3.1 out of 5 stars 15 Price $ 80.99 $80. 99 SoC Ky X1 8-core RISC-V AI CPU Rockchip RK3588 Rockchip RK3588S Rockchip RK3588 Allwinner H618 Rockchip RK3588S Allwinner H618
RAM LPDDR4X: 2GB/4GB/8GB optional 4GB/8GB/16GB/32G (LPDDR4/4x) LPDDR5 496PIN4GB/8GB/16GB 4GB/8GB/16GB LPDDR5 496PIN 1GB/ 1.5GB /2GB/4GB LPDDR4 4GB/8GB/16GB (LPDDR4/4x) LPDDR 4:1 GB/ 1.5GB /2GB/4GB Core 8-core 8 Core 8 Core 8 Core 4 Core 8 Core 4 Core Onboard Storage - - - - 16MB SPI Flash 32GB 16MB SPI Flash eMMC Module Socket 16GB/32GB/64GB/128GB optional 32GB/64GB/256GB 32GB/64GB/256GB 32GB/64GB/256GB - - Wi-Fi / Bluetooth Wi-Fi 5.0 +BT 5.0, BLE - Onboard Wi-Fi5+BT 5.0 /BLE Onboard Wi-Fi 6E+BT 5.3 /BLE WiFi5 and Bluetooth 5.0 - Wi-Fi 5.0 +BT 5.0 CPU Frequency 1.6GH z 2.4GH z 2.4GH z 2.4GH z 1.5GH z 2.4GH z 1.5GH z Power Source Type-C 5V 5A DC IN 5V4A Type C Power Supply 5V5A Type C Power Supply 5V5A Type C Power Supply 5V3A Type C Power Supply 5V4A/5V5A Type C Power Supply 5V3A Type C Power Supply Dimension 89mm * 56mm 100mm * 75mm 89mm * 56mm 89mm * 57mm 50mm*55mm 50mm*40mm 30mm * 65mm Weight 86.5 g 62g 62g - 12g 12.5 g
