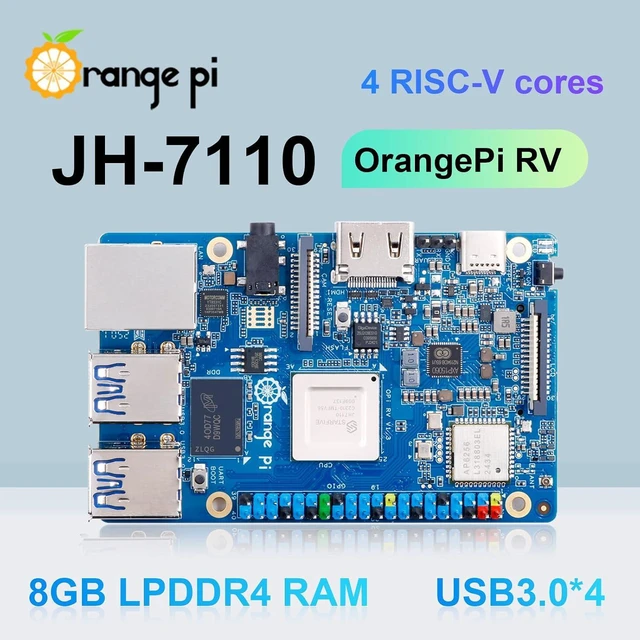

    Orange Pi RV 8G RAM RISC V 4 Core LPDDR4 1.5GHz Frequency Development Board, 4K Video Decoding Wi-Fi 5+BT 5 Orange Pi RV Single Board Computer Run Debian

    Limited time offer, ends 09/19 By CoreDepot

    Be the first to review this product...
    • High Performance RISC V - Orange Pi RV 8G is a cost-effective RISC-V development board, equipped with a RISC V quad core processor JH-7110, Equipped with 64-bit high-performance RISC-V processor core, CPU stable operating frequency of 1.5GHz, with efficient computing, high-speed connection, visual processing and other characteristics.; LPDDR4 4K Video Decoding - Orange pi RV has 8GB LPDDR4, H.264/H.265 video encoding and decoding IP and ISP IP. Video decoding (H.264/H.265) up to 4K@30fps, support multi-way decoding; video encoding (H.265) up to 1080p@30fps, support multi-way encoding;provide JPEG codec.; Wi-Fi 5+BT 5 - Orange pi RISC V SBC supports PCIe2.0, Gigabit Ethernet, MIPI-CSI, MIPI-DSI, 40Pin expansion interface and other commonly used functional interfaces, and supports Linux operating system.; Enriched interfaces - Rich peripheral interfaces, including PCIe2.0 interface, USB3.0 interface, Gigabit Ethernet interface, Wi-Fi and Bluetooth, MIPI DSI, MIPI CSI, 40Pin expansion port, 3.5mm headphone jack, Type-C 5V4A power supply(not included) and so on.; Highly Open Source - Based on the RISC-V architecture, Orange Pi RV 8G mini pc enables open source to reach a higher level, developers can get more freedom and stronger ability to innovate and design industry-leading solutions, and better support enterprise technology innovation.;
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now
    Hardware Specification CPU: JH-7110
    GPU: RISC-V architecture
    RAM: 2GB / 4GB / 8GB LPDDR4, 2800MT/s single channel B200 balls
    Memory: M. 2 NGFF PCIe *1 (2280 *1); TF card slot *1, SDIO signal, max support 1TB Wi-Fi+BT Wi-Fi 5.0 +BT 5.0
    Wi-Fi Interface: SDIO 2.0
    Model: AP6256
    Ethernet: Support 10/100/1000Mbps *1
    YT8531C USB: USB 3.0 *4; PCIe to USB 3.0
    HUB Camera: 2Lane CSI*1, dual-row 30Pin Video HDMI Type A, 2.0 *1, up to 4K@30fps 2Lane DSI*1, dual-row 30Pin
    Audio: 3.5 mm, 4-section headphone cradle, left and right channel only, no MIC
    Expansion port: 40Pin
    expansion interface: UART serial port, I2C, 3V/5V power supply and other GPIO
    Indicator light: Power on lamp
    Power button: Side buttons, board edge
    Reset button: Horizontal buttons, in-board
    Burn flash button: Horizontal buttons, in-board (for burning from USB when flash is damaged)
    Power source: Type-C port power supply, rated 5V 4A
    Supported OS: Linux
    Dimension: 89*56mm, board thickness 1.6 mm
    Weight: 54g
