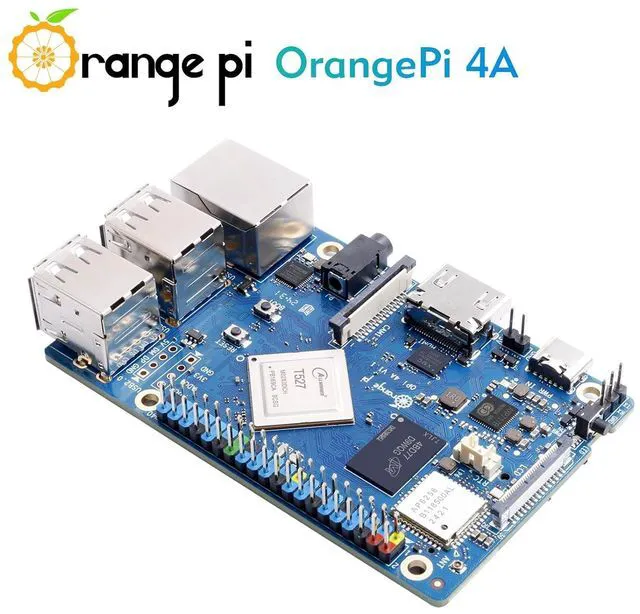

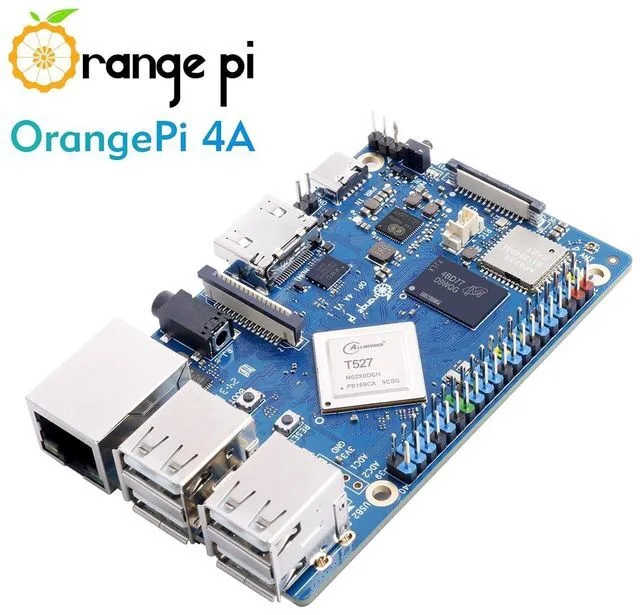

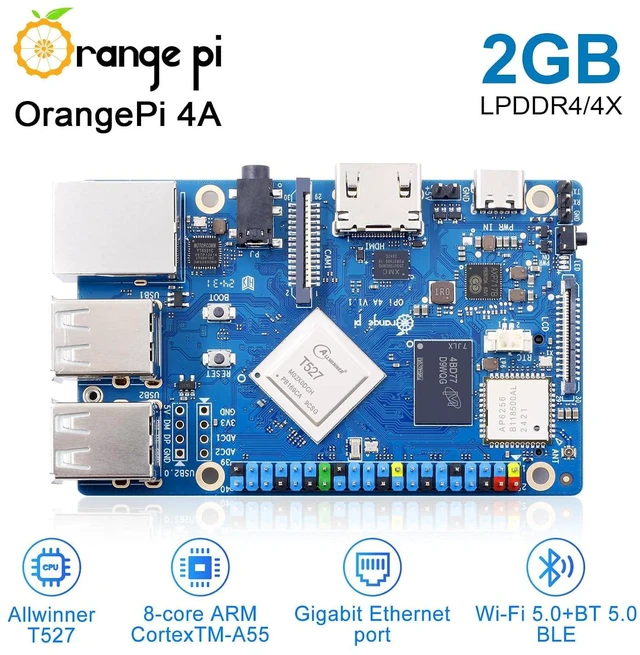

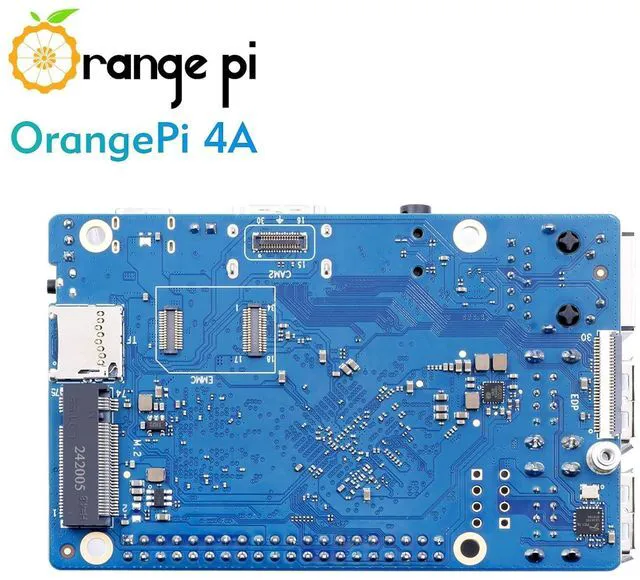

Orange Pi 4A 2GB LPDDR4/4X Allwinner T527 Single Board Computer, 8 Core RISC-V Co-Processor 2 Tops NPU 1.8GHz Frequency Wi-Fi 5.0+BT 5.0,BLE Run Ubuntu, Debian, Android13 (Pi 4A 2GB+Supply)
- [High Performance] - Orange Pi 4A 2G is based on AllwinnerT527 octa-core Cortex-A55 + HiFi4 DSP +RlSC-V multi-core heterogeneous industrial-grade processor, supporting 2TOPS NPU to meet the edge of the intelligent Al acceleration applications, supports 2GB/4GB LPDDR4/4X, provides H.265 4K@60fps and H.264 4K @60fps video decoding,H.264 4K@25fps video encoding.; [Co-processors for RISC-V architecture] - Innovative use of co-processors with RlSC-Varchitecture provides more technology optionsfor real-time control, motion control, fast startup,low-power standby, and system security.; [Wide Range of Application Scenarios] - OrangePi 4A single board computer can be widely used in intelligent industrial control, intelligent commercial display, retail payment, intelligent education, commercial robotics, vehicle terminals, visual co-driving, edge computing, intelligent power distribution terminals, etc.; [Rich Extensibility] - Orange Pi 4A 2GB with rich interfaces, including Gigabit Ethernet, PCle2.0, USB2.0, MIPI-CSI, MIPI-DSI 40Pin expansion interface and other commonly used functional interfaces, supports Ubuntu, Debian, Android 13 and other operating systems.; [New Generation GPU Bringssmoother 3D Graphics Interactionexperience] - Mali-G57 is ARM's first mid-range graphics processor with Valhallarchitecture, providing graphics application support for gamingexperience, multi-screen display and multi-screen interaction.;
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

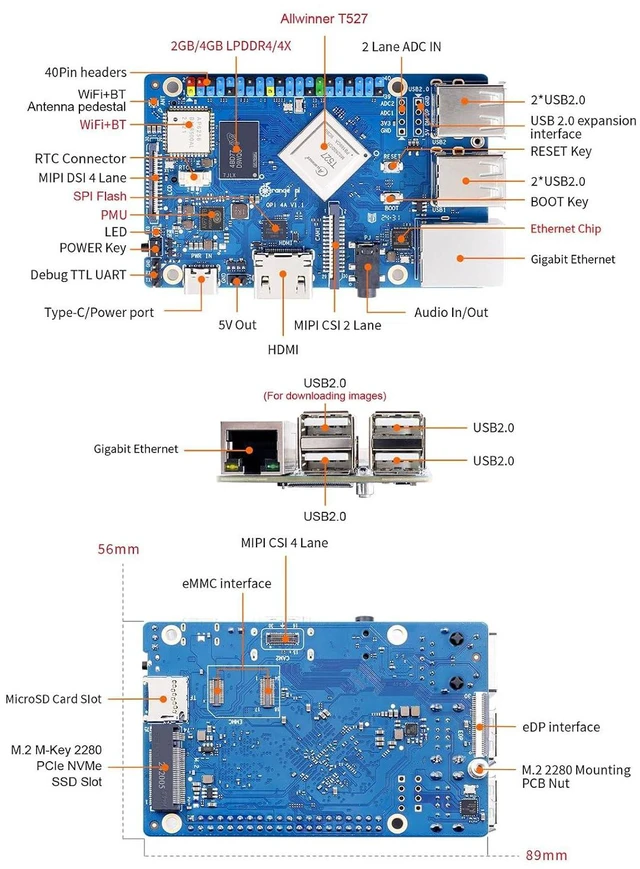

Processor: T527, 8-core ARM CortexTM-A55@ 1.8GH z
HIFI4 Audio DSP@600MHz RISC-V@200MHz GPU: G57
MC1 VPU: H. 265 4K@60fps decoding, H. 264 4K@60fps decoding, H.
264 4K@25fps encoding NPU: 2TOPS
Memory:
LPDDR4/4X: 2GB/4GB (optional)
Storage: eMMC module (optional) 16GB/32GB/64GB/128GB (optional)
SPI flash: 128Mb (default) 256Mb (optional) M. 2 M-KEY socketPCIe 2.0 NVMe SSD uSD card slotsupports up to 128GB uSD card
Wi-Fi + Bluetooth: Wi-Fi + Bluetooth 2-in-1 module Wi-Fi 5.0 +BT 5.0, BLE
Ethernet: 10/100/1000Mbps
Ethernet Display: 1* HDMI TX 2.0 interface up to 4K@60fps 1* 4-lane MIPI-DSI 1* eDP 1.3
Camera: 1* 2-lane MIPI-CSI camera interface 1* 4-lane MIPI-CSI camera interface
USB: 1*USB Type-A 2.0 3*USB Type-A 2.0 HOST 1*USB 2.0 HOST, reserved for customer expansion
ADC: Reserved 4Pin connector, can access 2-lane ADC, maximum input 1.8V
Audio: 3.5 mm headphone jack audio input/output
Buttons: 1* BOOT1*RESET1 *PWR

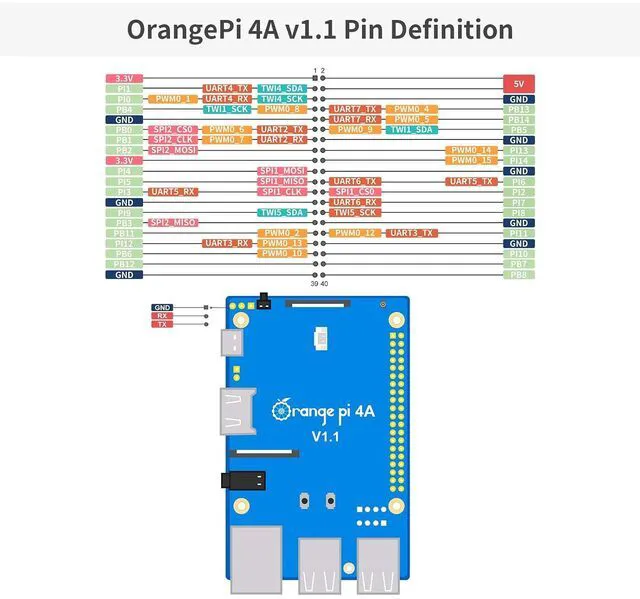

ON RTC: 2Pin spare battery connector (Pitch= 1.27 mm) 40Pin: 40Pin function expansion interface, supports
the following interface types: GPIOUARTI2CSPIPWM
Debug: 3Pin debug serial port

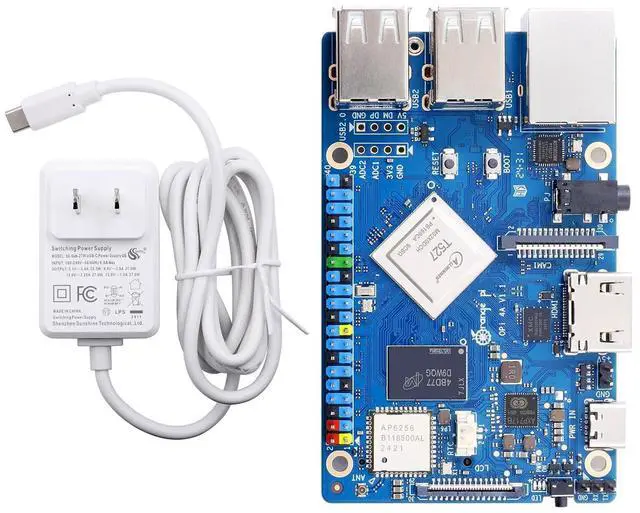

Power supply: Type-C 5V 5A
DCIN Supported OS: UbuntuDebianAndroid13
PCB: 89mm*56mm* 1.6 mm
Weight: 52g
HIFI4 Audio DSP@600MHz RISC-V@200MHz GPU: G57
MC1 VPU: H. 265 4K@60fps decoding, H. 264 4K@60fps decoding, H.
264 4K@25fps encoding NPU: 2TOPS
Memory:
LPDDR4/4X: 2GB/4GB (optional)
Storage: eMMC module (optional) 16GB/32GB/64GB/128GB (optional)
SPI flash: 128Mb (default) 256Mb (optional) M. 2 M-KEY socketPCIe 2.0 NVMe SSD uSD card slotsupports up to 128GB uSD card
Wi-Fi + Bluetooth: Wi-Fi + Bluetooth 2-in-1 module Wi-Fi 5.0 +BT 5.0, BLE
Ethernet: 10/100/1000Mbps
Ethernet Display: 1* HDMI TX 2.0 interface up to 4K@60fps 1* 4-lane MIPI-DSI 1* eDP 1.3
Camera: 1* 2-lane MIPI-CSI camera interface 1* 4-lane MIPI-CSI camera interface
USB: 1*USB Type-A 2.0 3*USB Type-A 2.0 HOST 1*USB 2.0 HOST, reserved for customer expansion
ADC: Reserved 4Pin connector, can access 2-lane ADC, maximum input 1.8V
Audio: 3.5 mm headphone jack audio input/output
Buttons: 1* BOOT1*RESET1 *PWR
ON RTC: 2Pin spare battery connector (Pitch= 1.27 mm) 40Pin: 40Pin function expansion interface, supports
the following interface types: GPIOUARTI2CSPIPWM
Debug: 3Pin debug serial port
Power supply: Type-C 5V 5A
DCIN Supported OS: UbuntuDebianAndroid13
PCB: 89mm*56mm* 1.6 mm
Weight: 52g
