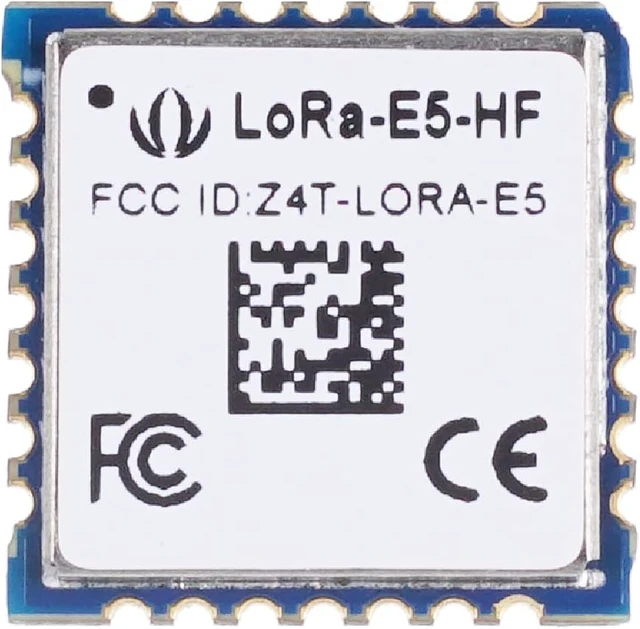

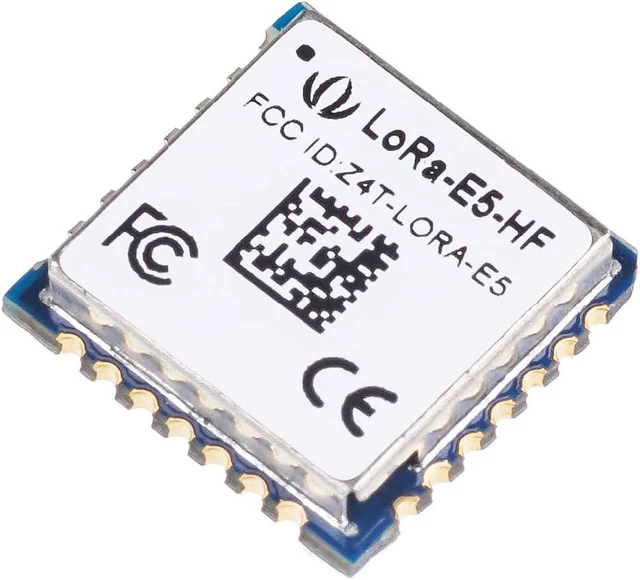

LoRa-E5 (STM32WLE5JC) Module, ARM Cortex-M4 and SX126x Embedded, Supports LoRaWAN on EU868 & US915.

Worldwide CompatibilityLoRa-E5 LoRaWAN module is embedded with LoRaWAN protocol, AT command, support global LoRaWAN frequency plan.
Ultra-low Power Consumption LoRa-E5 LoRaWAN module is designed with ST system-level package chip STM32WLE5JC, ARM Cortex M4 ultra-low-power MCU and LoRa SX126X. It supports (G)FSK mode and LoRa. 62.5kHz, 125kHz, 250kHz, and 500kHz bandwidth can be used in LoRa mode, making it suitable for the design of various IoT nodes, as low as 2.1uA sleep current (WOR mode).

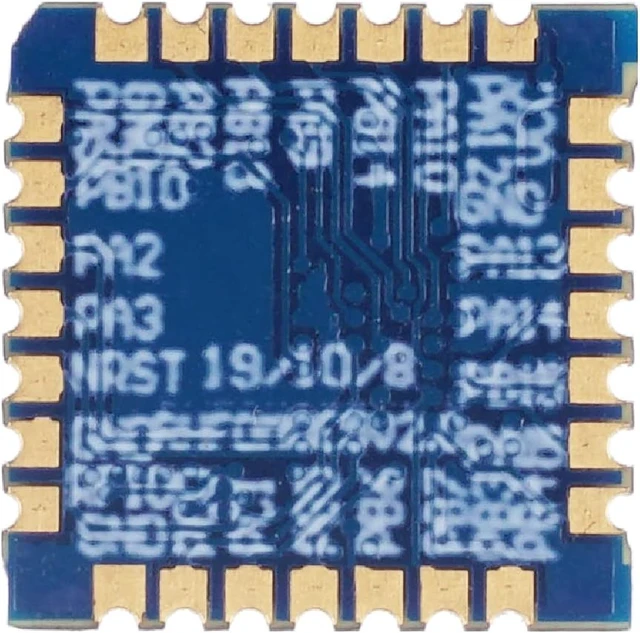

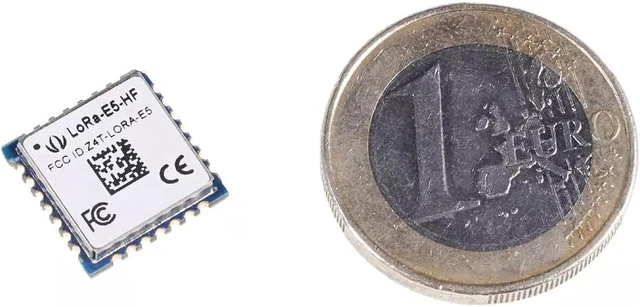

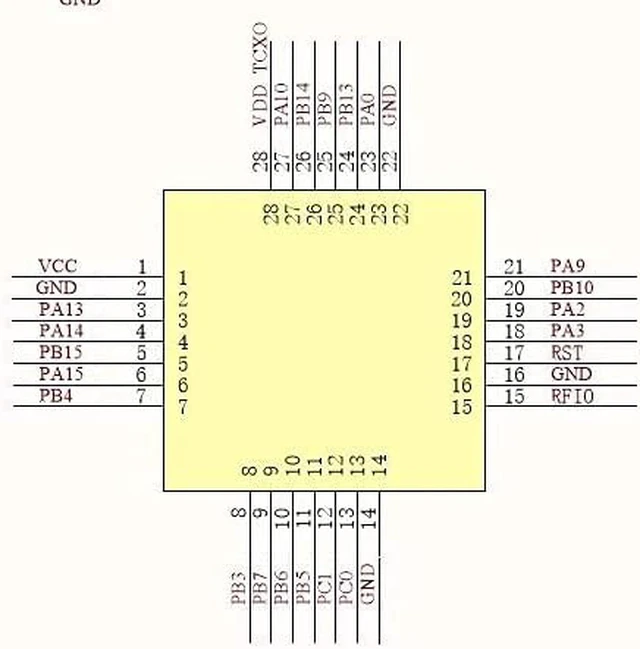

Compacted Size and High Performance 12mm * 12mm * 2.5mm 28 pins SMT; TXOP=22dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW. This LoRa E5 module is designed with industrial standards, hence it's highly suitable to be used in designing industrial IoT products, with a wide working temperature at -40 ~ 85.
Great Flexibility For users who want to develop software on the MCU of the module, other GPIOs of the MCU can be easily manipulated, including UART, I2C, ADC, etc. These rich GPIO interfaces are useful for users who need to expand peripherals.
Applications LoRa-E5 LoRaWAN module is highly suitable for long-distance, applications such as smart agriculture, smart city, wireless meter reading, sensor networks, wireless communication, and other low-power wide-area IoT scenarios. If you want a module to design your own LoRaWAN sensor, to construct IoT nodes, or to support any wireless communication applications, LoRa-E5 is the premium choice that provides you with

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Worldwide CompatibilityLoRa-E5 LoRaWAN module is embedded with LoRaWAN protocol, AT command, support global LoRaWAN frequency plan.
Ultra-low Power Consumption LoRa-E5 LoRaWAN module is designed with ST system-level package chip STM32WLE5JC, ARM Cortex M4 ultra-low-power MCU and LoRa SX126X. It supports (G)FSK mode and LoRa. 62.5kHz, 125kHz, 250kHz, and 500kHz bandwidth can be used in LoRa mode, making it suitable for the design of various IoT nodes, as low as 2.1uA sleep current (WOR mode).
Compacted Size and High Performance 12mm * 12mm * 2.5mm 28 pins SMT; TXOP=22dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW. This LoRa E5 module is designed with industrial standards, hence it's highly suitable to be used in designing industrial IoT products, with a wide working temperature at -40 ~ 85.
Great Flexibility For users who want to develop software on the MCU of the module, other GPIOs of the MCU can be easily manipulated, including UART, I2C, ADC, etc. These rich GPIO interfaces are useful for users who need to expand peripherals.

Additional Information
First Listed on Newegg	October 14, 2026

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
