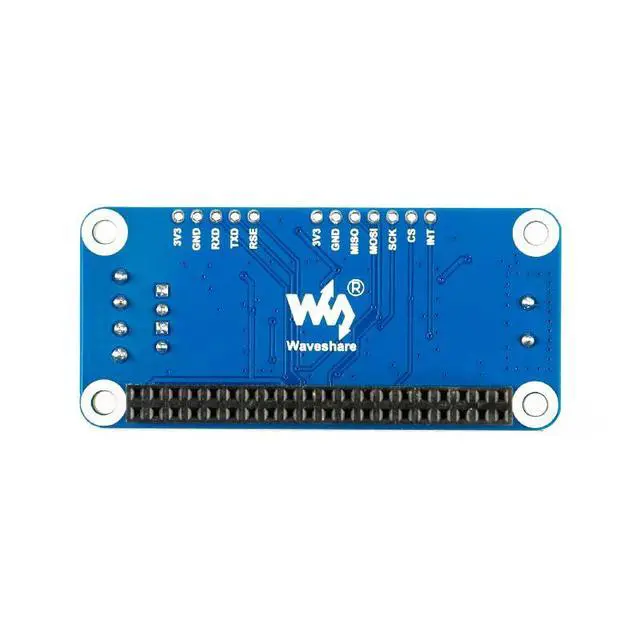

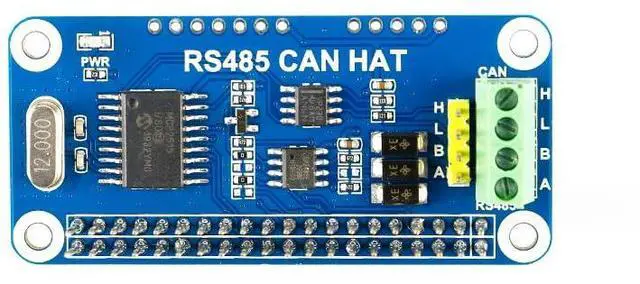

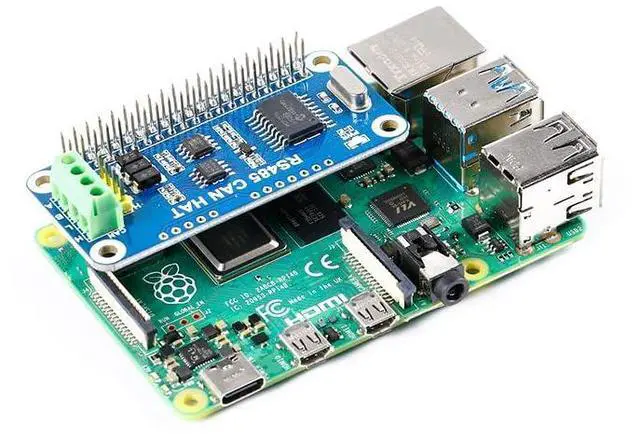

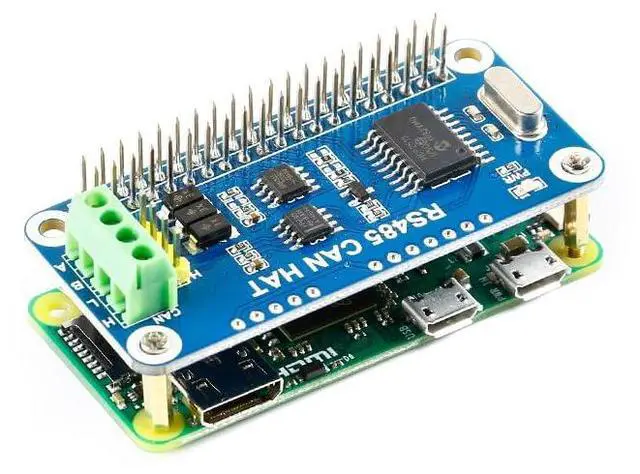

RS485 CAN HAT Raspberry Pi 4B/3B+/Zero W RS485 CAN UART RS485 Communication PCB MCP2515 Controller SPI interface Transceiver SN65HVD230
- Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards; Equipped with CAN function, using SPI interface CAN controller MCP2515, paired with transceiver SN65HVD230; Equipped with RS485 function, using UART control, half duplex communication, supporting automatic switching of transmission and reception status without program control, with SP3485 transceiver; Onboard TVS (Transient Voltage Suppression Tube) and RS485 communication can effectively suppress surge voltage and transient peak voltage in the circuit, and prevent lightning and static electricity; Reserve control interfaces for easy control by other controllers
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
CAN controller: MCP2515
Working voltage: 3.3V
CAN transceiver: SN65HVD230
Fixed screw hole diameter: 3.0
mm 485 transceiver: SP3485

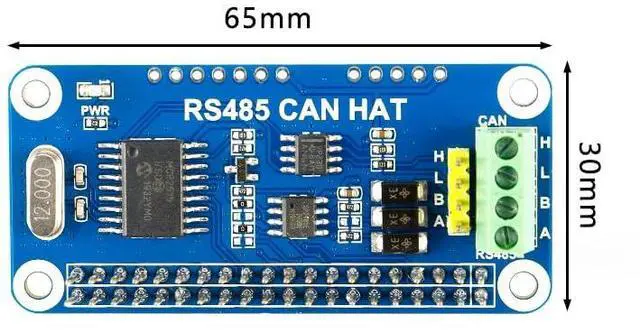

Product size: 65 X 30mm
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
CAN controller: MCP2515
Working voltage: 3.3V
CAN transceiver: SN65HVD230
Fixed screw hole diameter: 3.0
mm 485 transceiver: SP3485
Product size: 65 X 30mm
