$17.91
Ships from China.
Sold by StarVelocity Technology
Shipped by StarVelocity Technology
Meet Your Seller

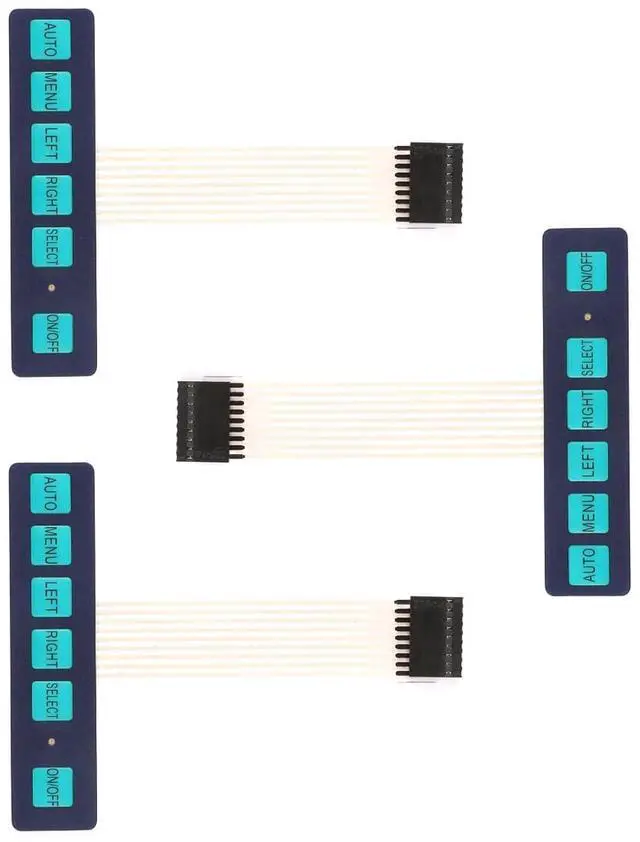

3Pcs 1x6 Matrix Array Membrane Switch Display Keypad Keyboard Switch 104*24mm 6 Keys with LED Light
- Category: PET silver paste printed circuit, Operating voltage: 50VDC, Operating current: 100 Ma, Contact resistance: 0.5-10 ohm (depending on lead length and material); Insulation resistance: 100m ohm 100V, Substrate withstand voltage: 2 kdvc, Rebound time: 6 ms, Loop resistance: 50 ohm, 150 ohm and 350 ohm, or determined according to user needs; Insulation ink withstand voltage: 100VDC, Closing displacement: 0.1-0.4 mm (no touch) 0.4 - 1.0 mm, strength: 15-750g, Silver paste migration: at 55, 90% of the temperature, after 56 hours, the second line is 10m ohm/50VDC; The silver paste line is free of oxidation and impurities, The bending resistance of the outgoing line shall be d=10 mm steel, and the line shall be pressed 80 times with a rod, Operating temperature - 20 to 70 ; Package including: 3Pcs 1x6 6 Key Membrane Switch
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Category: PET silver paste printed circuit
Operating voltage: 50VDC
Operating current: 100
Ma Contact resistance: 0.5 -10 ohm (depending on lead length and material)
Insulation resistance: 100m ohm 100V
Substrate withstand voltage: 2 kdvc
Rebound time: 6 ms
Loop resistance: 50 ohm, 150 ohm and 350 ohm, or determined according to user needs
Insulation ink withstand voltage: 100VDC
Closing displacement: 0.1 - 0.4 mm (no touch) 0.4 - 1.0 mm
Jianbiao strength: 15-750g
Silver paste migration: at 55, 90% of the temperature, after 56 hours, the second line is 10m ohm/50VDC; The silver paste line is free of oxidation and impurities The bending resistance of the outgoing line shall be d=10 mm steel, and the line shall be pressed 80 times with a rod Operating temperature - 20 to 70
Storage temperature: - 40 to +85
Storage humidity: 95%±5%
Atmospheric pressure: 86 - 106 kPa Silver paste line width 0.3 mm, minimum interval 0.3 mm, line burr less than 1/3, line notch less than 1/4 line width
Reliability service life: more than 1 million times
Operating voltage: 50VDC
Operating current: 100
Ma Contact resistance: 0.5 -10 ohm (depending on lead length and material)
Insulation resistance: 100m ohm 100V
Substrate withstand voltage: 2 kdvc
Rebound time: 6 ms
Loop resistance: 50 ohm, 150 ohm and 350 ohm, or determined according to user needs
Insulation ink withstand voltage: 100VDC
Closing displacement: 0.1 - 0.4 mm (no touch) 0.4 - 1.0 mm
Jianbiao strength: 15-750g
Silver paste migration: at 55, 90% of the temperature, after 56 hours, the second line is 10m ohm/50VDC; The silver paste line is free of oxidation and impurities The bending resistance of the outgoing line shall be d=10 mm steel, and the line shall be pressed 80 times with a rod Operating temperature - 20 to 70
Storage temperature: - 40 to +85
Storage humidity: 95%±5%
Atmospheric pressure: 86 - 106 kPa Silver paste line width 0.3 mm, minimum interval 0.3 mm, line burr less than 1/3, line notch less than 1/4 line width
Reliability service life: more than 1 million times
