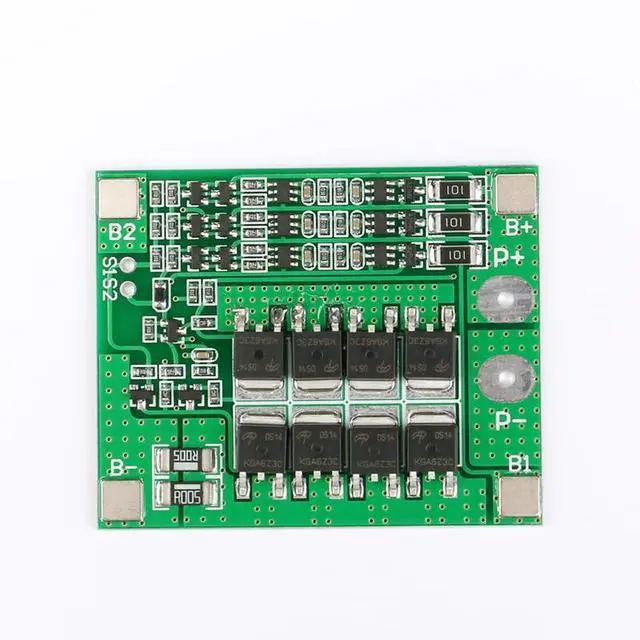

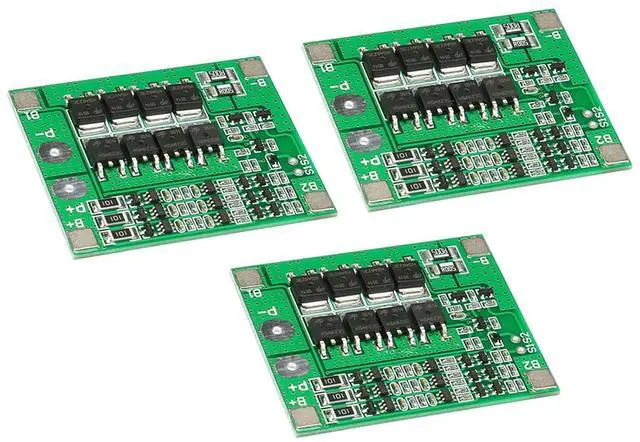

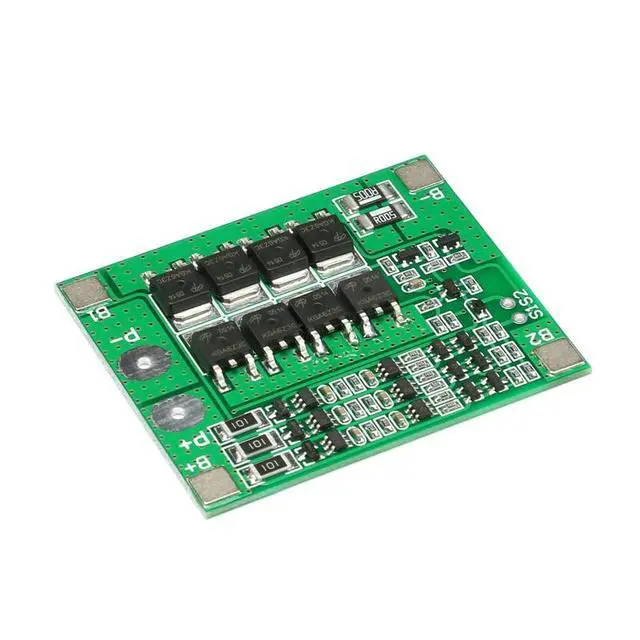

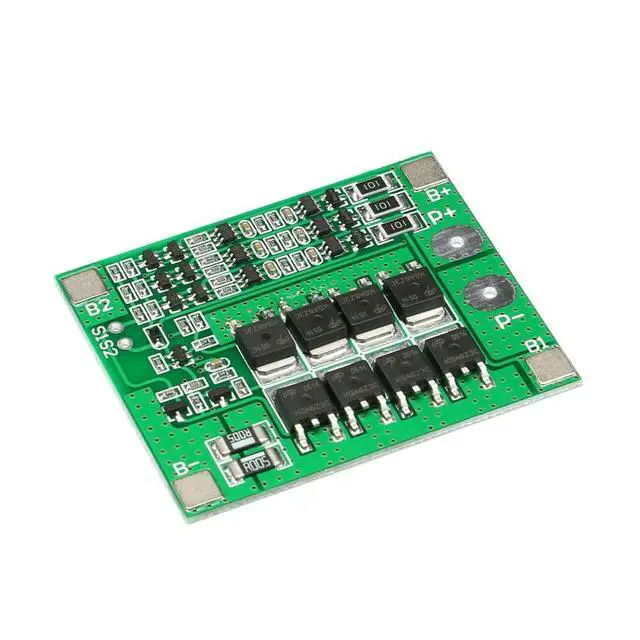

3Pcs 3S 12V 25A Lithium Battery Protection Board 11.1V-12.6V 18650 Lithium Battery Balanced Function Board with USB Plug, Green Two-Terminal Connector
- Charging Voltage: 12.6V-13V; Maximum Working Current: 20-25A; With a balance function to keep each battery in balance and good service life greater than 30000 hours; Protect battery pack from overcharging, over-discharging over-current and short circuit; P+ Charge positive, load positive; P- Charge negative, load negative; Use for a variety of capacities and various shapes Massager battery pack, LED lamp backup power supply, solar street lamp battery pack, monitoring backup power supply, etc
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Technical parameters:
Model: HXYP-3S-F25-8MOS

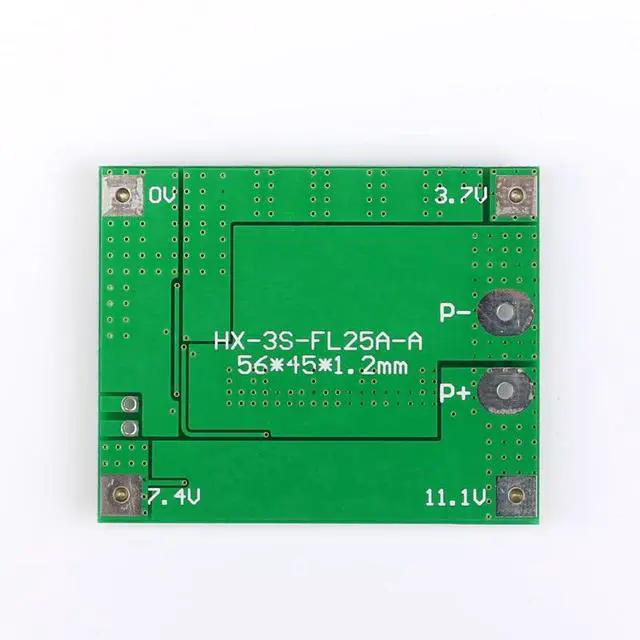

Size: 56mm*45mm* 4.0 mm
Charging voltage: 12.6V -13V
Overcharge voltage range: 4.25V - 4.35V ± 0.05V
Over-discharge voltage range: 2.3 - 3.0V ± 0.05V
Upper limit working current: 20-25A
Upper instantaneous current: 35-40A
Quiescent current: 30A
Effective life: 30000 hours
Internal resistance: 100m
Working temperature: - 40 -- +50
Storage conditions: - 40 -- +80
Discharge continuous current limit: 25A ± 1A
Discharge protection current limit: 45A ± 1A
Charging limit voltage: 12.6V
Charging continuous current limit: 20A ± 1A
Charging protection current limit: 30A ± 1A (Single section)
Overcharge voltage: 4.25V ± 0.025V (Single section)
Overcharge release voltage: 4.05V ± 0.08V (Single section)
Over-discharge release voltage: 2.9V ± 0.15V
Wiring instruction: P+ Charge positive, load positive P- Charge negative, load negative
Short circuit protection: It can be protected and needs to be charged for recovery
Main functions: overcharge protection, over-discharge protection, short circuit protection, over-current protection
Note: Lithium battery protection plate cannot be used for lithium iron phosphate batteries, hernia lamps, electric hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children's car batteries, motor or products with motor, 1W fish-eye LED lamps
Model: HXYP-3S-F25-8MOS
Size: 56mm*45mm* 4.0 mm
Charging voltage: 12.6V -13V
Overcharge voltage range: 4.25V - 4.35V ± 0.05V
Over-discharge voltage range: 2.3 - 3.0V ± 0.05V
Upper limit working current: 20-25A
Upper instantaneous current: 35-40A
Quiescent current: 30A
Effective life: 30000 hours
Internal resistance: 100m
Working temperature: - 40 -- +50
Storage conditions: - 40 -- +80
Discharge continuous current limit: 25A ± 1A
Discharge protection current limit: 45A ± 1A
Charging limit voltage: 12.6V
Charging continuous current limit: 20A ± 1A
Charging protection current limit: 30A ± 1A (Single section)
Overcharge voltage: 4.25V ± 0.025V (Single section)
Overcharge release voltage: 4.05V ± 0.08V (Single section)
Over-discharge release voltage: 2.9V ± 0.15V
Wiring instruction: P+ Charge positive, load positive P- Charge negative, load negative
Short circuit protection: It can be protected and needs to be charged for recovery
Main functions: overcharge protection, over-discharge protection, short circuit protection, over-current protection
Note: Lithium battery protection plate cannot be used for lithium iron phosphate batteries, hernia lamps, electric hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children's car batteries, motor or products with motor, 1W fish-eye LED lamps
