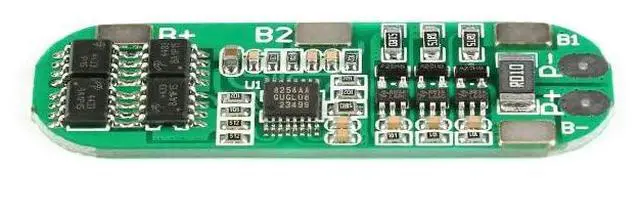

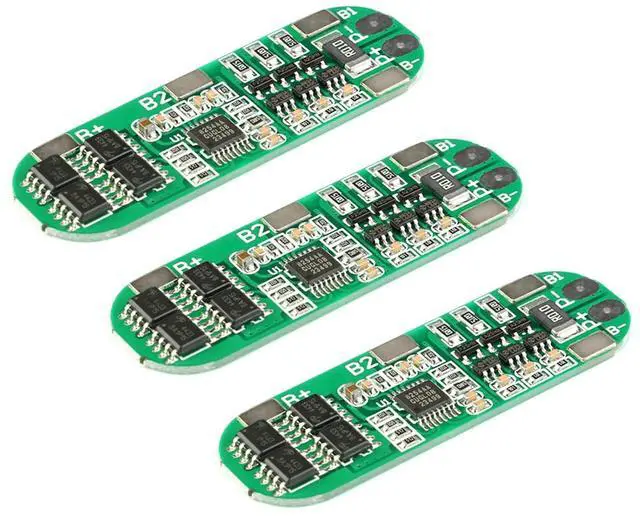

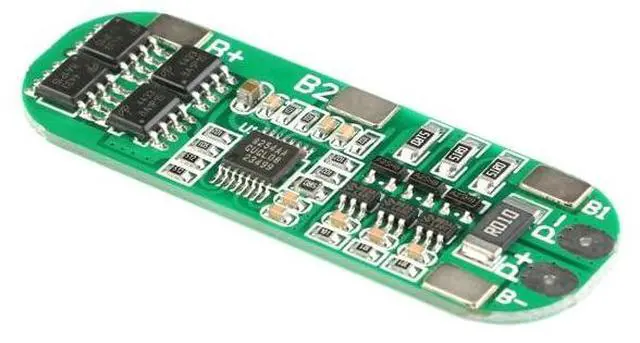

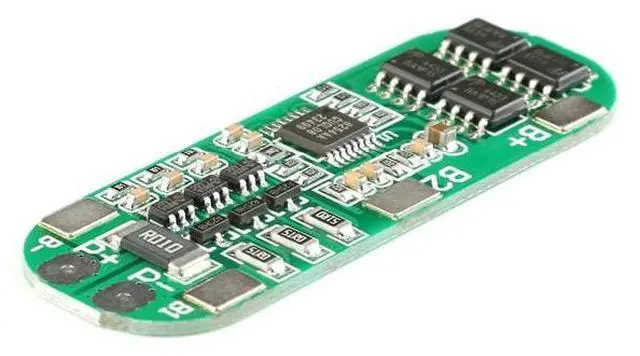

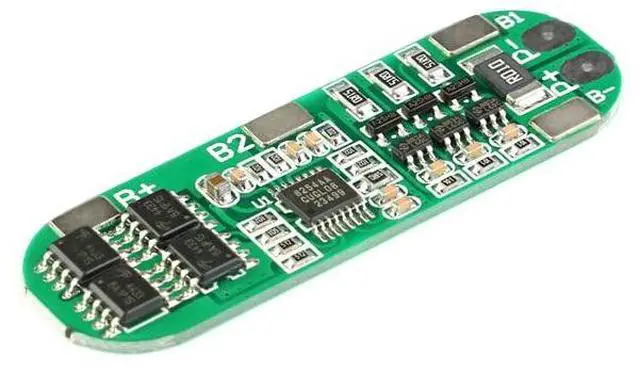

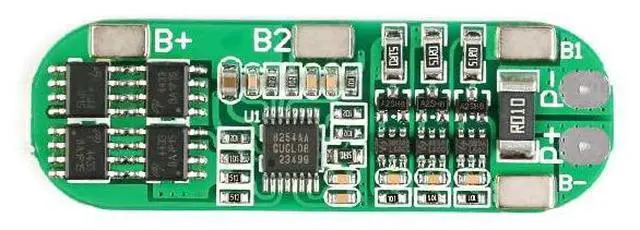

3Pcs 3S Battery Protection Board 3S 10A 18650 Lithium Battery Protection Board 12.6V with Charge Balance Overcharge Overdischarge Overcurrent Protection

Technical parameters:
Model: HX-3S-JHA10
Overcharge voltage range: 4.25 - 4.35V ± 0.05V
Size: 53mm*17mm* 2.7 mm
Over-discharge voltage range: 2.3 - 3.0V ± 0.05V
Upper limit working current: 6A - 8A
Operating temperature: -40 to +50
Upper instantaneous current: 9A-10A
Storage conditions: - 40 to +80
Quiescent current: less than 30A
Effective life: more than 30000 hours
Short circuit protection: protectable, delayed self-recovery
Charging voltage: 12.6V -13V
Continuous current limit of discharge: 8A ± 1A
Discharge protection current limit: 12A ± 1A
Charging limit voltage: 12.6V
Charging continuous current limit: 7A ± 1A
Charging protection current limit: 12A ± 1A (Single section)
Overcharge voltage: 4.25V ± 0.05V (Single section)
Overcharge release voltage: 4 15V ± 0.08V (Single section)
Over-discharge release voltage: 3V ± 0.1V
Description and explanation: 3 strings (three 18650 batteries or polymer lithium batteries in series) 10.8V (rated voltage of polymer battery) 11.1V (rated voltage of 18650 or 3.7V lithium battery) 12.6V (voltage after lithium battery is fully charged) Discharge 10A (refers to the upper limit discharge current limit) This protective plate cannot be used for lithium iron phosphate batteries, hernia lamps, electric hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children's car batteries, motors above 775 (4A), and 1W fisheye LED lamp
