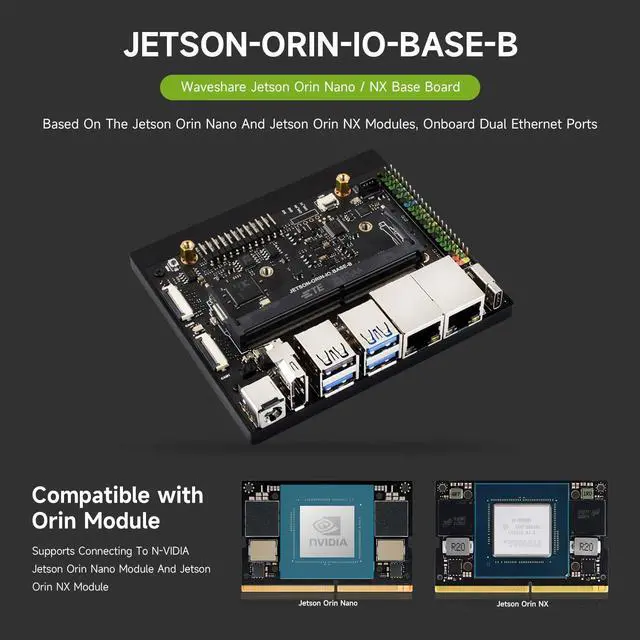

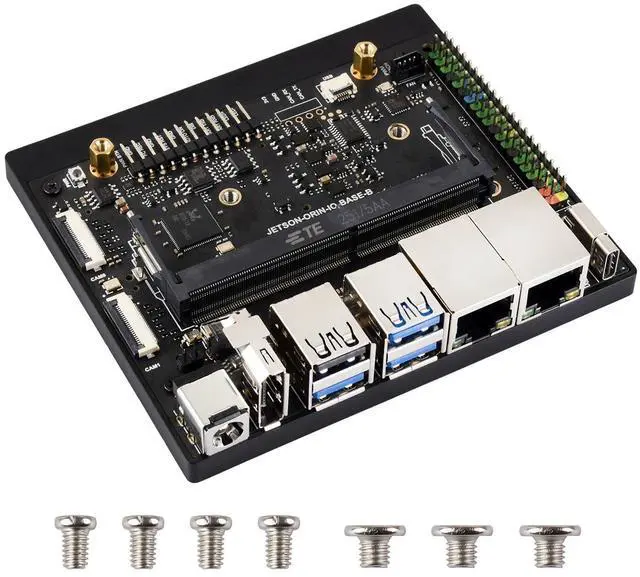

Jetson Orin Nano/NX Super Dual Ethernet Base Board Compatible with Jetson Orin Nano and Jetson Orin NX Modules, Designed for NV Jetson Orin Nano Super AI Development Kit
- This product is the base board only. Please purchase the Orin Module separately.; Dual CSI Camera Interfaces for Advanced AI Vision: Features two dedicated CSI camera ports to power sophisticated AI and machine vision applications, including facial recognition, road sign and lane detection, and license plate recognition.; Extensive High-Speed USB Connectivity for Peripherals: Offers exceptional connectivity with seven USB ports: four Type-A, one multi-purpose Type-C, and two onboard USB 2.0 FFC connectors. The USB 3.2 Gen 2 ports enable blistering data transfers up to 10Gbps, while the Type-C port also supports system flashing.; 4K Video Output and Color-Coded GPIO for Easy Prototyping: Delivers stunning 4K high-definition video output via the DisplayPort. A clearly color-coded 40-pin GPIO header simplifies connection and identification of interfaces like I2C, SPI, UART, and GPIO for streamlined development.; Flexible M.2 Expansion for Storage and Wireless: Provides versatile expansion with two M.2 Key M slots for adding high-speed SSDs and one M.2 Key E slot for integrating a wireless network card, enabling cleaner cable-free setups and enhanced onboard capabilities.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

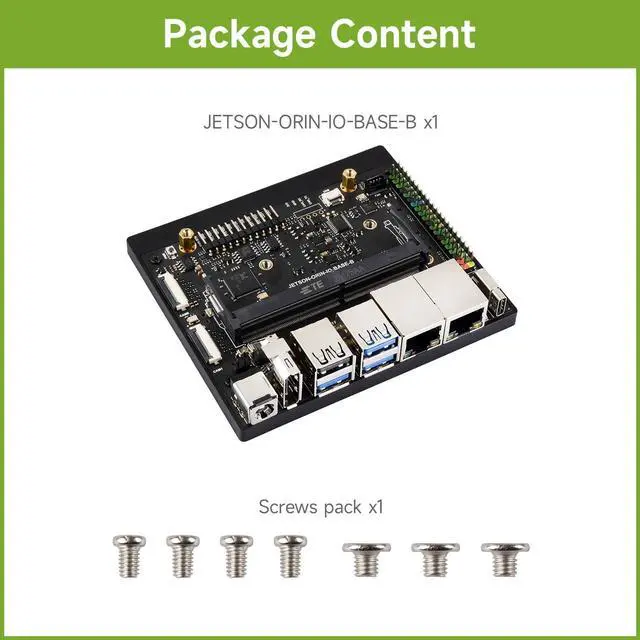

This product is the base board only. Please purchase the Orin Module separately.

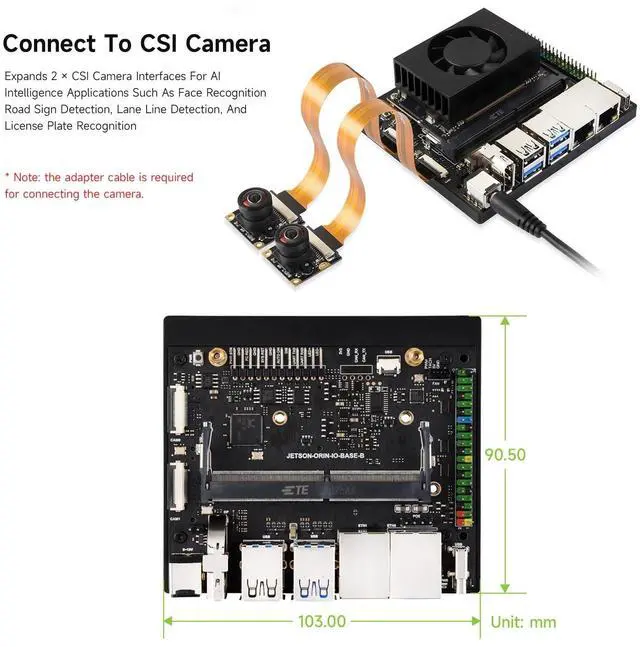

Dual CSI Camera Interfaces for Advanced AI Vision: Features two dedicated CSI camera ports to power sophisticated AI and machine vision applications, including facial recognition, road sign and lane detection, and license plate recognition.

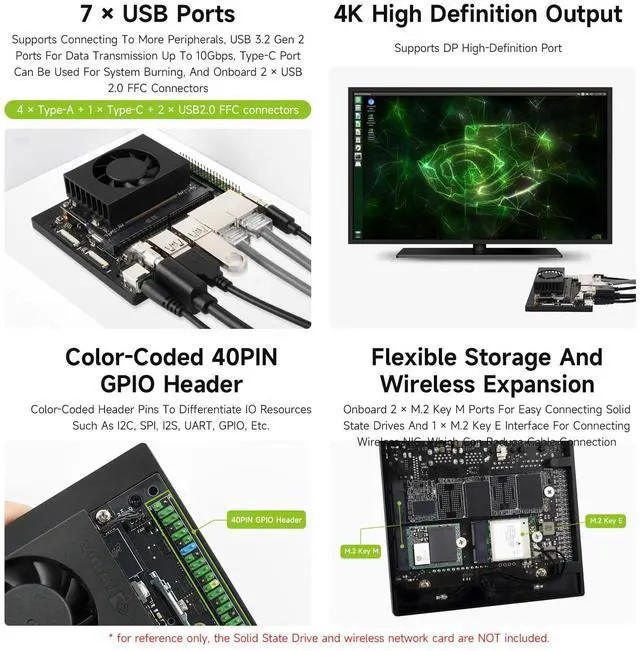

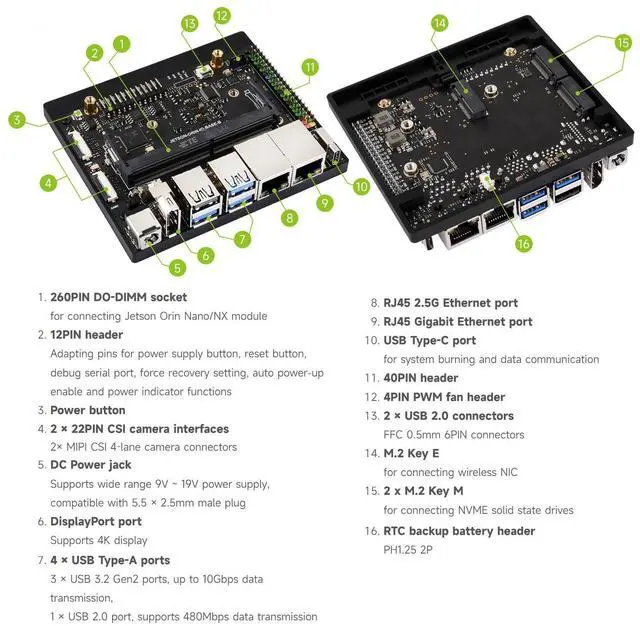

Extensive High-Speed USB Connectivity for Peripherals: Offers exceptional connectivity with seven
USB ports: four Type-A, one multi-purpose Type-C, and two onboard USB 2.0 FFC connectors. The USB 3.2 Gen 2 ports enable blistering data transfers up to 10Gbps, while the Type-C port also supports system flashing.
4K Video Output and Color-Coded GPIO for Easy Prototyping: Delivers stunning 4K high-definition video output via the DisplayPort. A clearly color-coded 40-pin GPIO header simplifies connection and identification of interfaces like I2C, SPI, UART, and GPIO for streamlined development.
Flexible M. 2 Expansion for Storage and
Wireless: Provides versatile expansion with two M. 2 Key M slots for adding high-speed SSDs and one M. 2 Key E slot for integrating a wireless network card, enabling cleaner cable-free setups and enhanced onboard capabilities.
Dual CSI Camera Interfaces for Advanced AI Vision: Features two dedicated CSI camera ports to power sophisticated AI and machine vision applications, including facial recognition, road sign and lane detection, and license plate recognition.
Extensive High-Speed USB Connectivity for Peripherals: Offers exceptional connectivity with seven
USB ports: four Type-A, one multi-purpose Type-C, and two onboard USB 2.0 FFC connectors. The USB 3.2 Gen 2 ports enable blistering data transfers up to 10Gbps, while the Type-C port also supports system flashing.
4K Video Output and Color-Coded GPIO for Easy Prototyping: Delivers stunning 4K high-definition video output via the DisplayPort. A clearly color-coded 40-pin GPIO header simplifies connection and identification of interfaces like I2C, SPI, UART, and GPIO for streamlined development.
Flexible M. 2 Expansion for Storage and
Wireless: Provides versatile expansion with two M. 2 Key M slots for adding high-speed SSDs and one M. 2 Key E slot for integrating a wireless network card, enabling cleaner cable-free setups and enhanced onboard capabilities.
