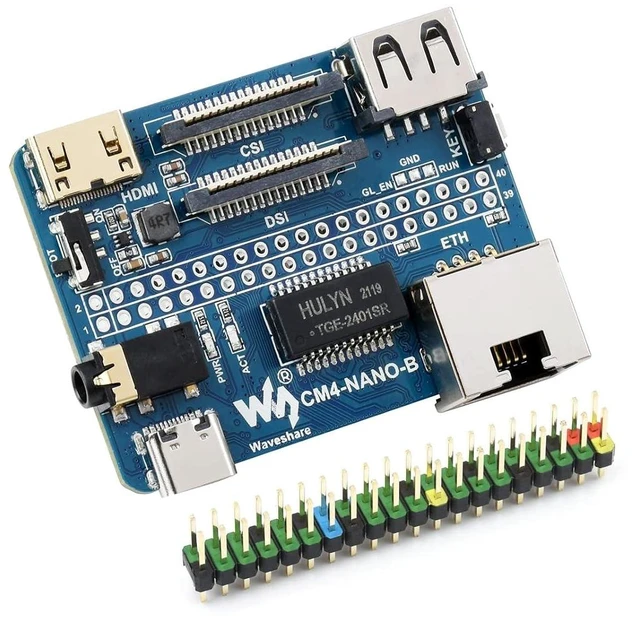

Nano Base Board B Compute Module 4 Carrier Board with Standard CM4 Socket 40PIN GPIO Gigabit Ethernet USB 2.0 DSI/CSI HDMI and 3.5mm Audio Jack For Raspberry Pi Compute Module 4
- Designed for evaluating the Raspberry Pi Compute Module 4 or integrating it into an end-product base board.
- Standard CM4 socket supports all variants of Compute Module 4, including Lite and eMMC versions.

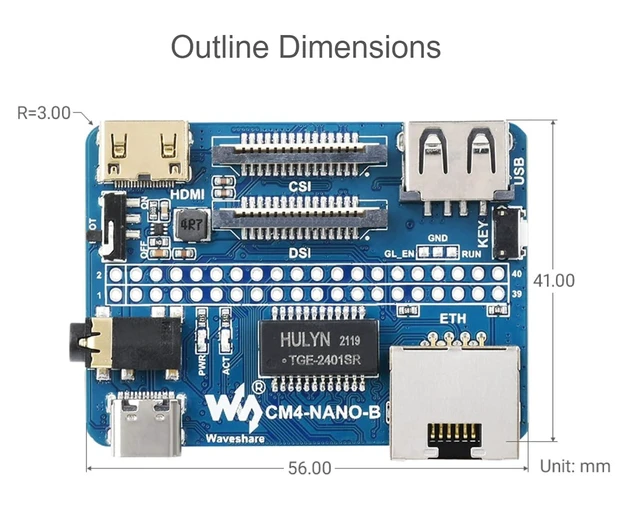

- Compact 56 × 41 mm board shares the same size as the Compute Module 4 for space-conscious integrations.
- Provides one Raspberry Pi 40PIN GPIO header for connecting supported peripheral hardware.
- Gigabit Ethernet RJ45 connector enables wired network connectivity through the board.
- Includes one USB 2.0 Type-A connector for compatible USB peripheral connections.
- Features one MIPI DSI display port and one MIPI CSI-2 camera port, each with a 15-pin 1.0 mm FPC connector.
- Mini HDMI port supports video output at up to 4K 30fps.
- Built-in 3.5 mm audio jack and 5V power input provide audio connection and board power support.

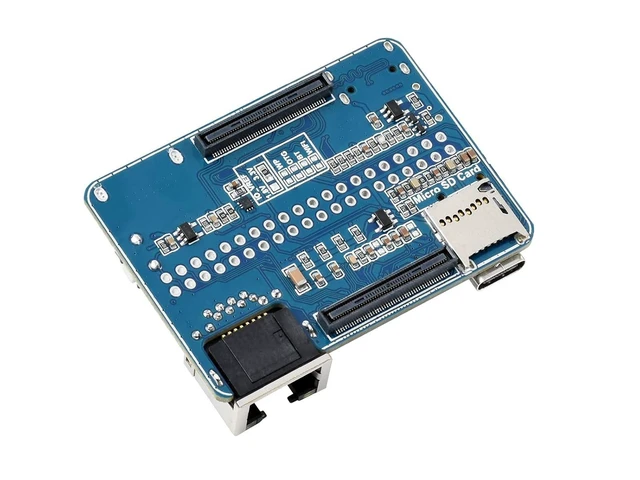

- Micro SD card socket supports Compute Module 4 Lite variants without eMMC; Compute Module 4 is not included.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:

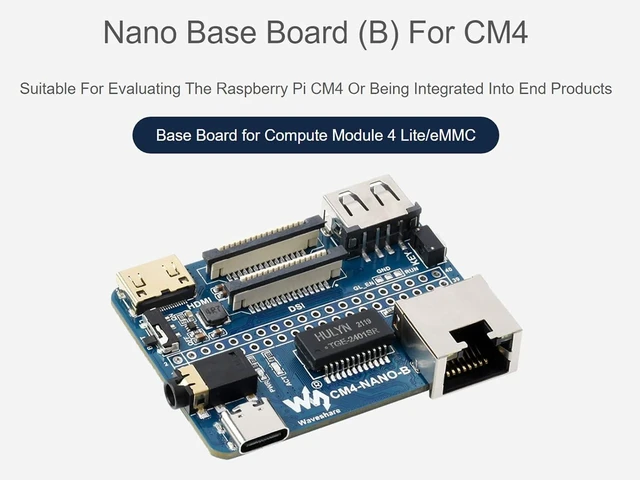

Nano Base Board (B) for Raspberry Pi Compute Module 4, designed for CM4 evaluation or integration into end products. It provides a standard CM4 socket and a compact form factor matching the size of the Compute Module 4.
Core Selling Points:

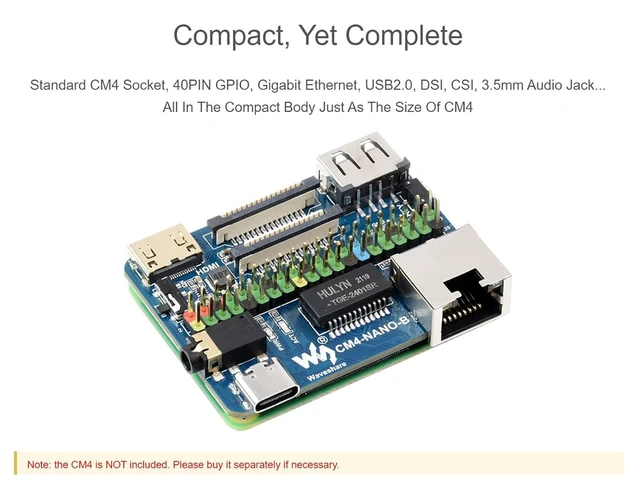

Compact board with standard CM4 socket for narrow application environments. Provides GPIO, Gigabit Ethernet, USB 2.0, display, camera, video, audio, and Micro SD card connectivity. Mini HDMI supports 4K 30fps output.

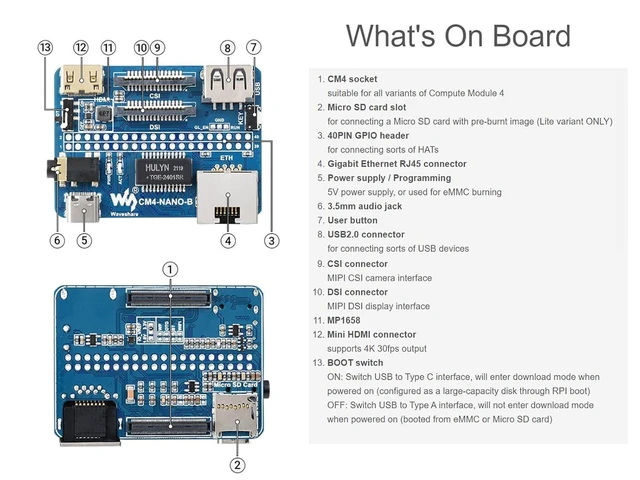

Technical Specifications:
CM4 socket: suitable for all Compute Module 4 variants. GPIO: Raspberry Pi 40PIN GPIO header × 1. Network: Gigabit Ethernet RJ45 connector. USB: USB 2.0 Type-A connector × 1. Display: MIPI DSI port × 1, 15-pin 1.0 mm FPC connector. Camera: MIPI CSI-2 port × 1, 15-pin 1.0 mm FPC connector. Video: Mini HDMI port × 1, supports 4K 30fps output. Audio: 3.5 mm jack. Storage: Micro SD card socket for Compute Module 4 Lite variants without eMMC. Power input: 5V. Dimensions: 56 × 41mm.
Package Contents:

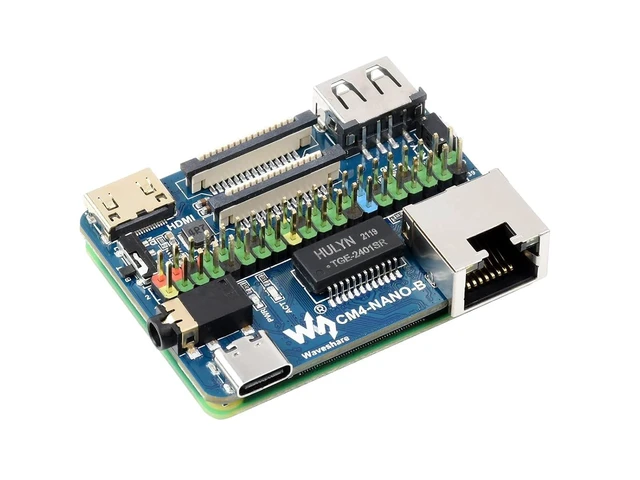

CM4-NANO-B; 2×20PIN color-coded straight pin header.
Before Purchase:
Compatible with Raspberry Pi Compute Module 4. The Compute Module 4 shown in photos is not included. The Micro SD card socket is for Compute Module 4 Lite variants without eMMC.
