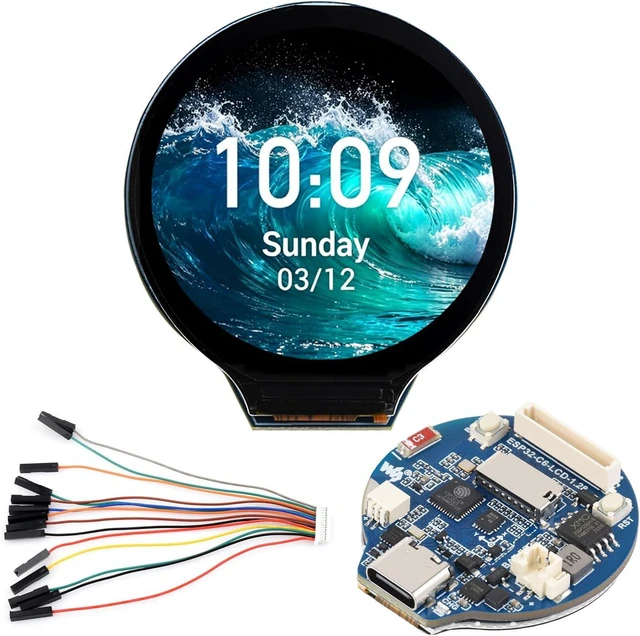

Waveshare ESP32-C6 1.28inch LCD Display Development Board, 240 × 240 | 65K color, Supports 2.4GHz Wi-Fi 6 and BLT 5, Onboard QMI8658 6-axis IMU and PCF85063 RTC chip, Onboard SH1.0 14PIN
- Built-in 512KB H-P Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash. Type-C port, easier to use
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

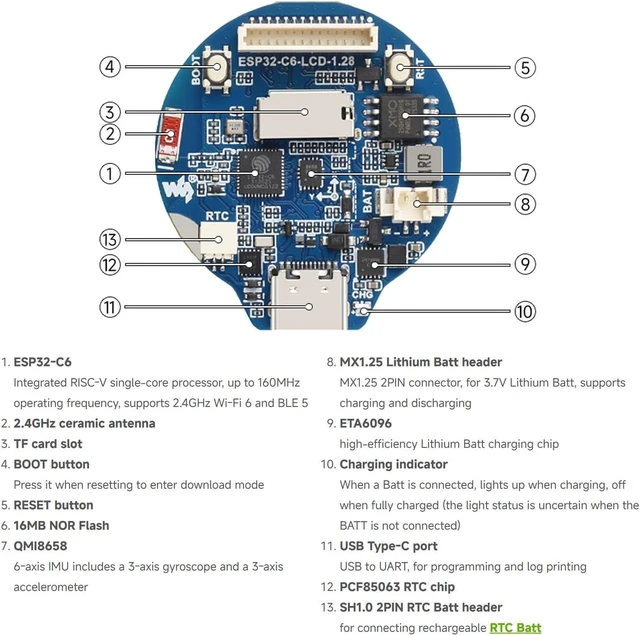

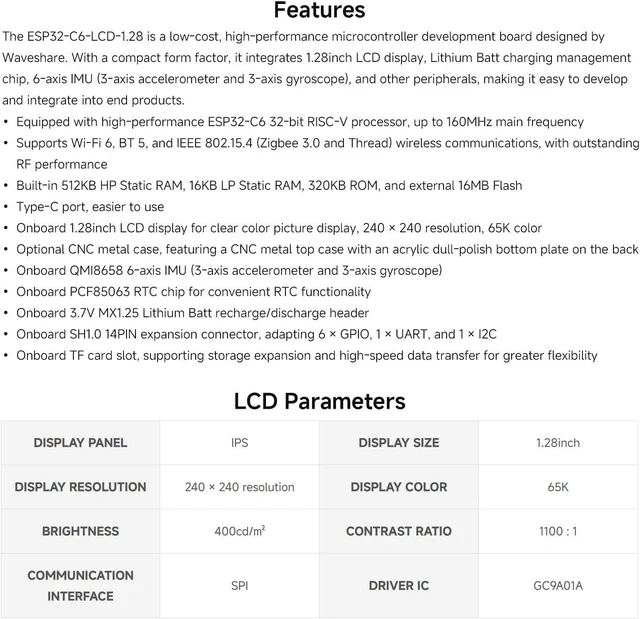

Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency. Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
Built-in 512KB H-P Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash. Type-C port, easier to use

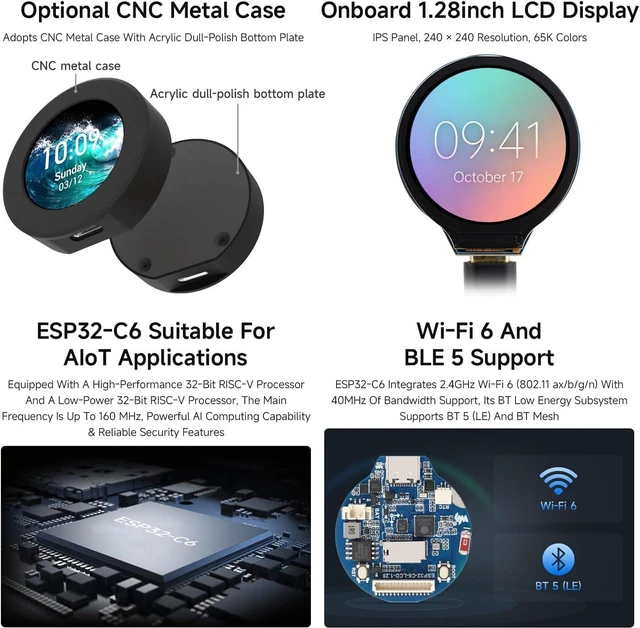

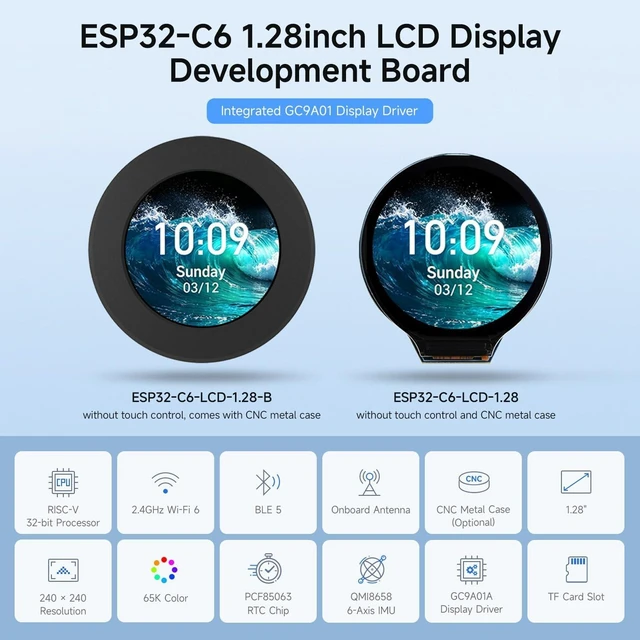

Onboard 1.28inch LCD display for clear color picture display, 240 × 240 resolution, 65K color. Optional CNC metal case, featuring a CNC metal top case with an acrylic dull-polish bottom plate on the back
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope). Onboard PCF85063 RTC chip for convenient RTC functionality. Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header

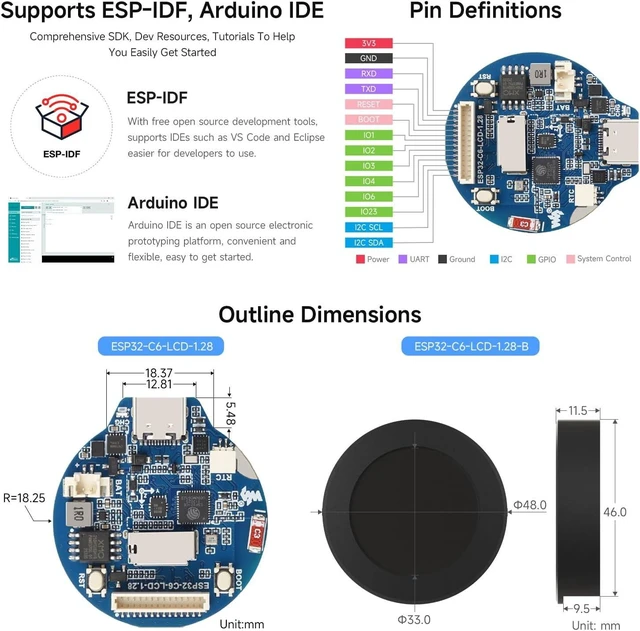

Onboard SH1.0 14PIN expansion connector, adapting 6 × GPIO, 1 × UART, and 1 × I2C. Onboard TF card slot, supporting storage expansion and high-speed data transfer for greater flexibility
Built-in 512KB H-P Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash. Type-C port, easier to use
Onboard 1.28inch LCD display for clear color picture display, 240 × 240 resolution, 65K color. Optional CNC metal case, featuring a CNC metal top case with an acrylic dull-polish bottom plate on the back
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope). Onboard PCF85063 RTC chip for convenient RTC functionality. Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Onboard SH1.0 14PIN expansion connector, adapting 6 × GPIO, 1 × UART, and 1 × I2C. Onboard TF card slot, supporting storage expansion and high-speed data transfer for greater flexibility
