Waveshare TOF MINIS Laser Range Sensor, Controller and Ranging Algorithm | Time-of-Flight (TOF) technology, RS485, long range|Short Blind Zone|stable/accurate/sensitive|IP68|indoor/outdoor
- Built-in controller and ranging algorithm, providing a measurement range of up to 5m with an accuracy within ± (1% ~ 3%).
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

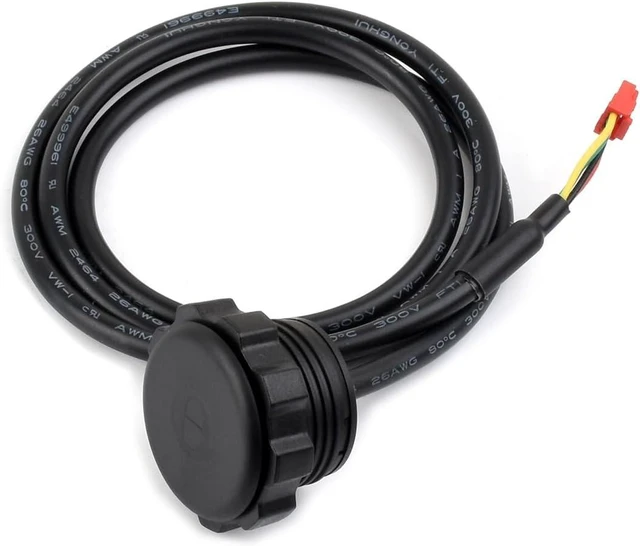

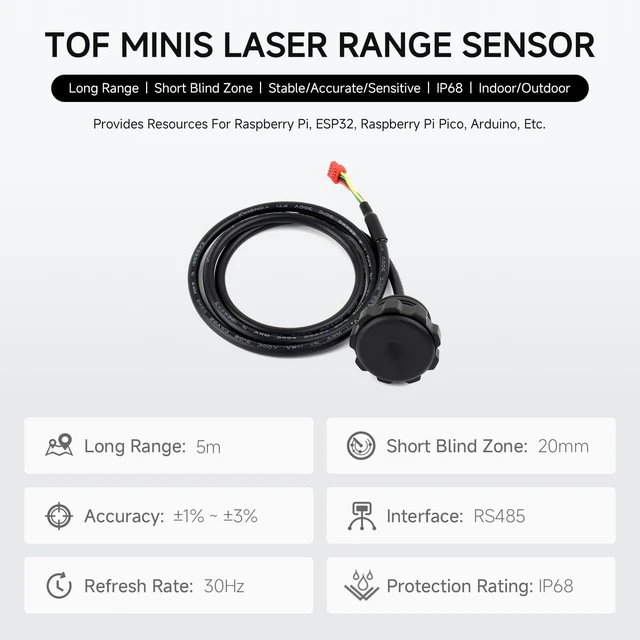

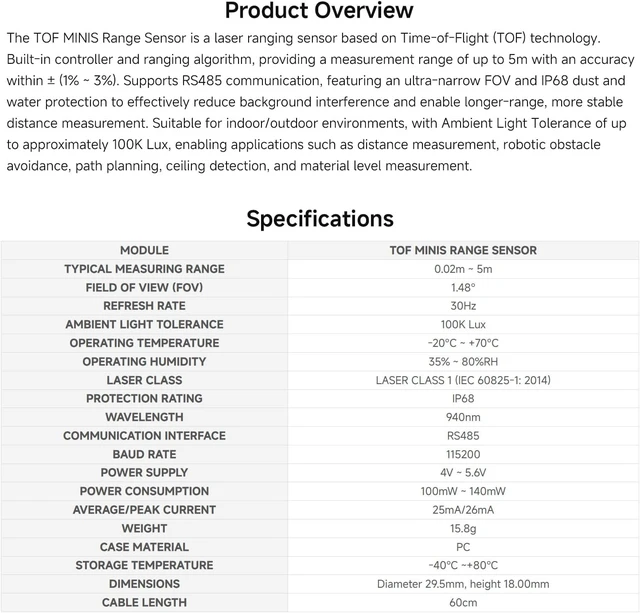

The TOF MINIS Range Sensor is a laser ranging sensor based on Time-of-Flight (TOF) technology.
Built-in controller and ranging algorithm, providing a measurement range of up to 5m with an accuracy within ± (1% ~ 3%).
Supports RS485 communication, featuring an ultra-narrow FOV and IP68 dust and water protection to effectively reduce background interference and enable longer-range, more stable distance measurement.
Suitable for indoor/outdoor environments, with ambient light resistance of up to approximately 100K Lux, enabling applications such as distance measurement, robotic obstacle avoidance, path planning, ceiling detection, and material level measurement.
With a sealed standalone enclosure, effectively enhances device protection, avoids external interference, ensures a stable operating environment, and meets the demands of industrial applications
Built-in controller and ranging algorithm, providing a measurement range of up to 5m with an accuracy within ± (1% ~ 3%).
Supports RS485 communication, featuring an ultra-narrow FOV and IP68 dust and water protection to effectively reduce background interference and enable longer-range, more stable distance measurement.
Suitable for indoor/outdoor environments, with ambient light resistance of up to approximately 100K Lux, enabling applications such as distance measurement, robotic obstacle avoidance, path planning, ceiling detection, and material level measurement.
With a sealed standalone enclosure, effectively enhances device protection, avoids external interference, ensures a stable operating environment, and meets the demands of industrial applications
