Waveshare TOF (time of Flight) Laser Range Sensor, UART Communication | based on D-TOF Single-Point Laser Sensor|long range|Short Blind Zone|stable/accurate/sensitive|indoor/outdoor
- Built-in controller and ranging algorithm, providing a measurement range of 0.02 ~ 5m/20m with an accuracy within ± (1% ~ 3%).
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

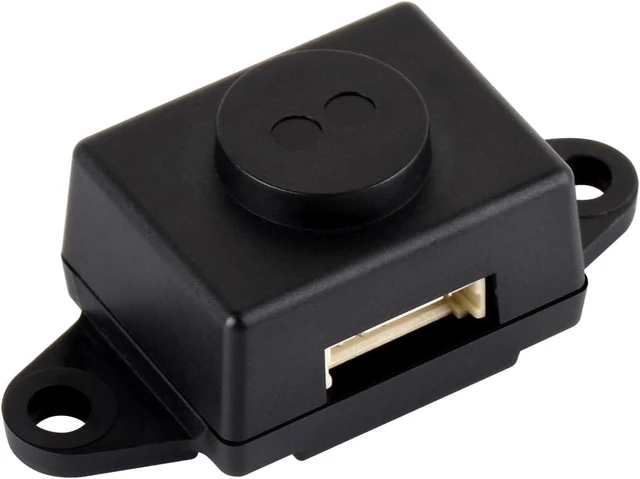

The TOF MINIF Range Sensor is a laser ranging sensor based on Time-of-Flight (TOF) technology.
Built-in controller and ranging algorithm, providing a measurement range of 0.02 ~ 5m/20m with an accuracy within ± (1% ~ 3%).

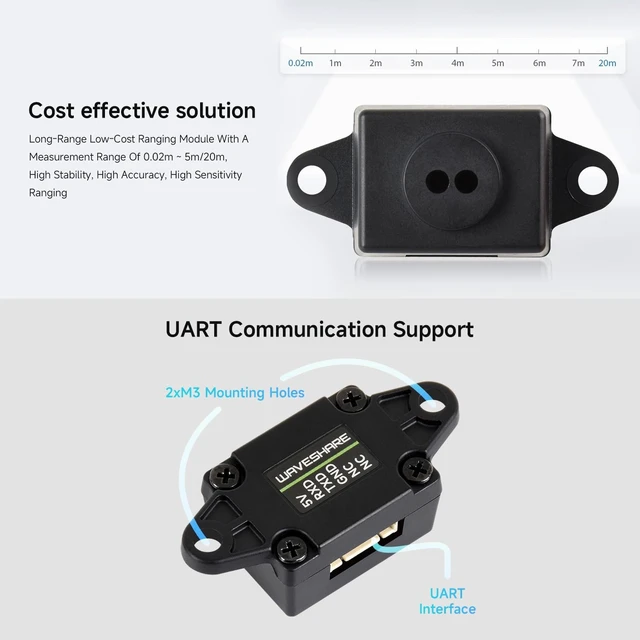

Supports UART communication and features an ultra-narrow FOV for long-range measurement.

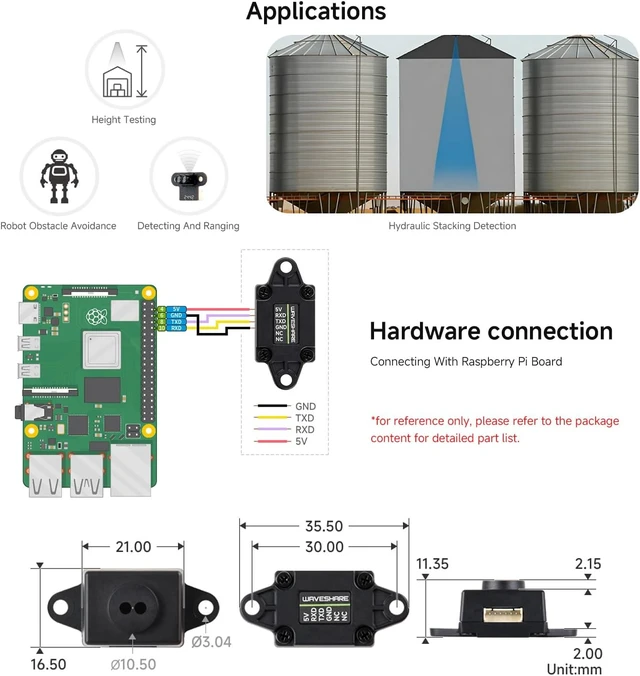

Suitable for both indoor and outdoor environments, with ambient light resistance of up to approximately 100K Lux, enabling applications such as distance measurement, robotic obstacle avoidance, path planning, ceiling detection, and material level measurement.
long-range low-cost ranging module with a Measurement Range of 0.02m ~ 5m/20m, high stability, high accuracy, high sensitivity ranging
Built-in controller and ranging algorithm, providing a measurement range of 0.02 ~ 5m/20m with an accuracy within ± (1% ~ 3%).
Supports UART communication and features an ultra-narrow FOV for long-range measurement.
Suitable for both indoor and outdoor environments, with ambient light resistance of up to approximately 100K Lux, enabling applications such as distance measurement, robotic obstacle avoidance, path planning, ceiling detection, and material level measurement.
long-range low-cost ranging module with a Measurement Range of 0.02m ~ 5m/20m, high stability, high accuracy, high sensitivity ranging
