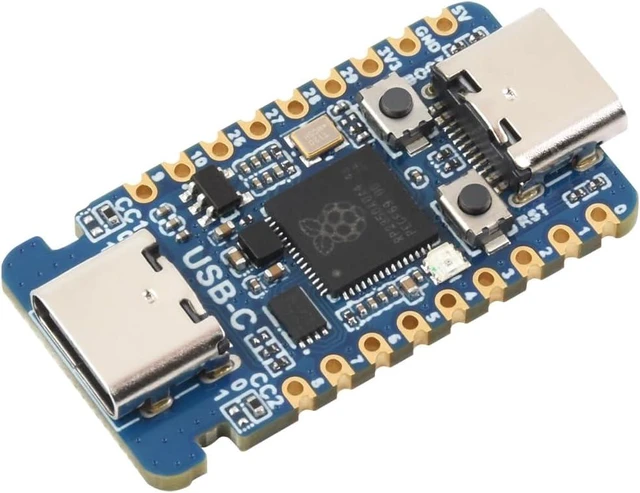

Waveshare RP2350-USB-C Microcontroller Dev Board Based on RPi RP2350A | Dual-Core & Dual-Architecture,Castellated module, suitable for SMD applicationsBased on Raspberry Pi RP2350A
- Built-in 520KB Static RAM, with onboard 2MB Flash. Type-C port for easier use. Compatible with PD-only USB-C power adapters
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

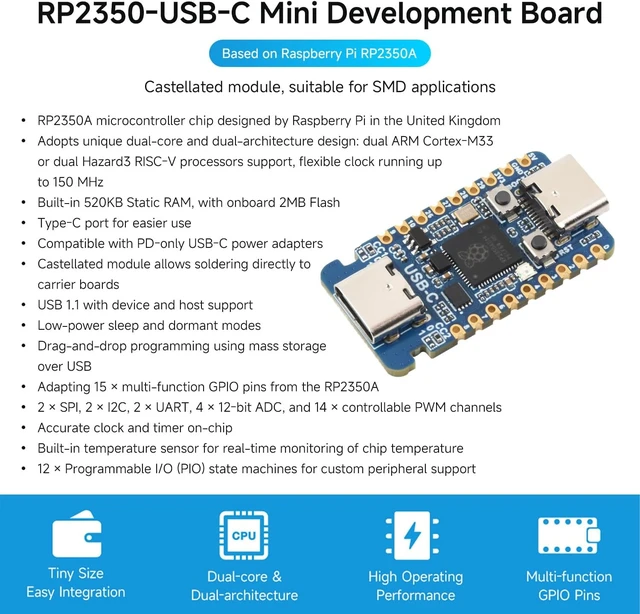

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom. Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
Built-in 520KB Static RAM, with onboard 2MB Flash. Type-C port for easier use. Compatible with PD-only USB-C power adapters
Castellated module allows soldering directly to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes

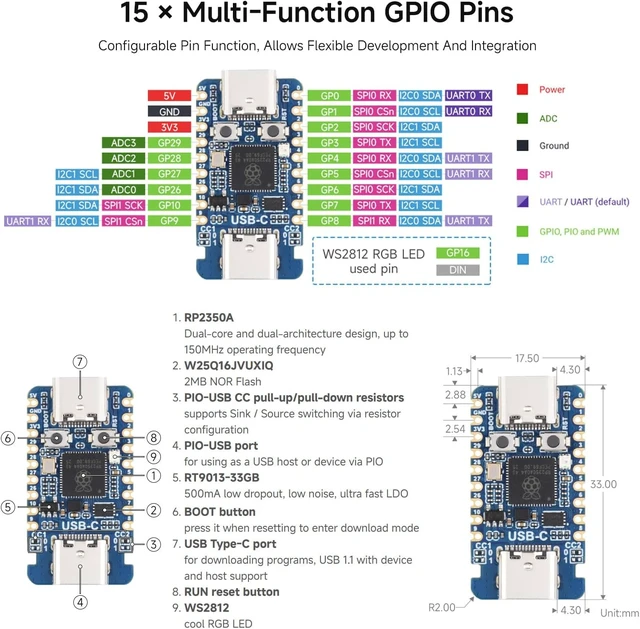

Drag-and-drop programming using mass storage over USB. Adapting 15 × multi-function GPIO pins from the RP2350A. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, and 14 × controllable PWM channels
Accurate clock and timer on-chip. Built-in temperature sensor for real-time monitoring of chip temperature. 12 × Programmable I/O (PIO) state machines for custom peripheral support
Built-in 520KB Static RAM, with onboard 2MB Flash. Type-C port for easier use. Compatible with PD-only USB-C power adapters
Castellated module allows soldering directly to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB. Adapting 15 × multi-function GPIO pins from the RP2350A. 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, and 14 × controllable PWM channels
Accurate clock and timer on-chip. Built-in temperature sensor for real-time monitoring of chip temperature. 12 × Programmable I/O (PIO) state machines for custom peripheral support
