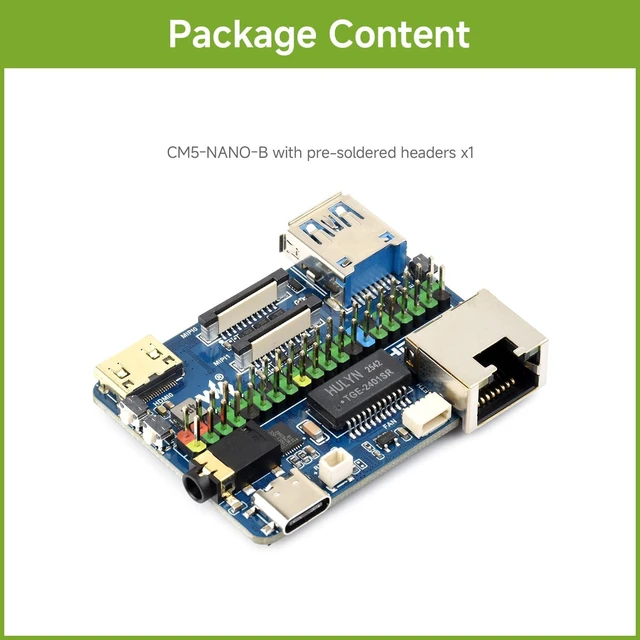

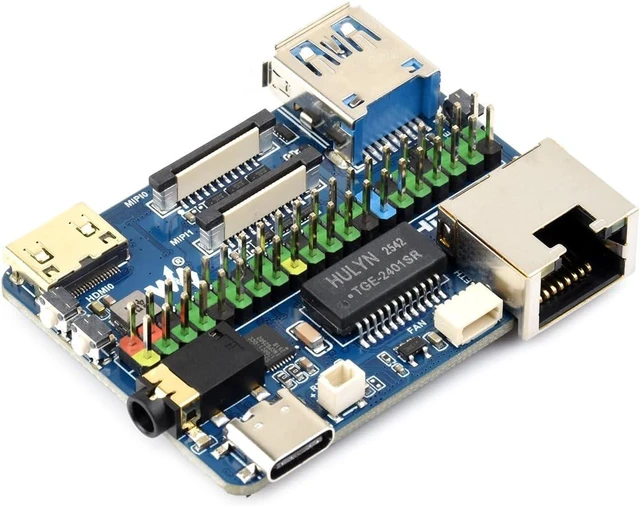

Waveshare CM5-NANO-B Mini Expansion Board,with pre-soldered Headers | Compatible with Raspberry Pi Compute Module 5,Same Size As The CM5,4K HDMI,USB 3.2,Giga-bit, dual MIPI interfaces
- High-Speed Connectivity: Features a Giga-bit Ethernet RJ45 port and a USB 3.2 Gen1 Type A port for fast data transfer, along with a 16PIN PCIe connector (Gen2/3 x1) for advanced peripheral expansion.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Exclusive CM5 Compatibility: Specifically designed as a carrier board for the Raspberry Pi Compute Module 5, ensuring a perfect fit for all variants of the popular industrial compute module.
High-Speed Connectivity: Features a Giga-bit Ethernet RJ45 port and a USB 3.2 Gen1 Type A port for fast data transfer, along with a 16PIN PCIe connector (Gen2/3 x1) for advanced peripheral expansion.
Dual 4K Display Support: Equipped with two MIPI 4-lane interfaces (22pin FPC) and one Mini HDMI port, enabling flexible dual-display setups with support for stunning 4K video output.
Versatile GPIO & Audio: Includes the standard Raspberry Pi 40PIN GPIO interface for easy hardware integration and a convenient 3.5mm USB audio jack for multimedia applications.
Optimized Power Design: Supports a robust DC 5V 5A power input to handle demanding peripherals, and includes a TF card socket specifically for Compute Module 5 Lite (without eMMC) variants, offering flexibility in storage solutions.
High-Speed Connectivity: Features a Giga-bit Ethernet RJ45 port and a USB 3.2 Gen1 Type A port for fast data transfer, along with a 16PIN PCIe connector (Gen2/3 x1) for advanced peripheral expansion.
Dual 4K Display Support: Equipped with two MIPI 4-lane interfaces (22pin FPC) and one Mini HDMI port, enabling flexible dual-display setups with support for stunning 4K video output.
Versatile GPIO & Audio: Includes the standard Raspberry Pi 40PIN GPIO interface for easy hardware integration and a convenient 3.5mm USB audio jack for multimedia applications.
Optimized Power Design: Supports a robust DC 5V 5A power input to handle demanding peripherals, and includes a TF card socket specifically for Compute Module 5 Lite (without eMMC) variants, offering flexibility in storage solutions.
